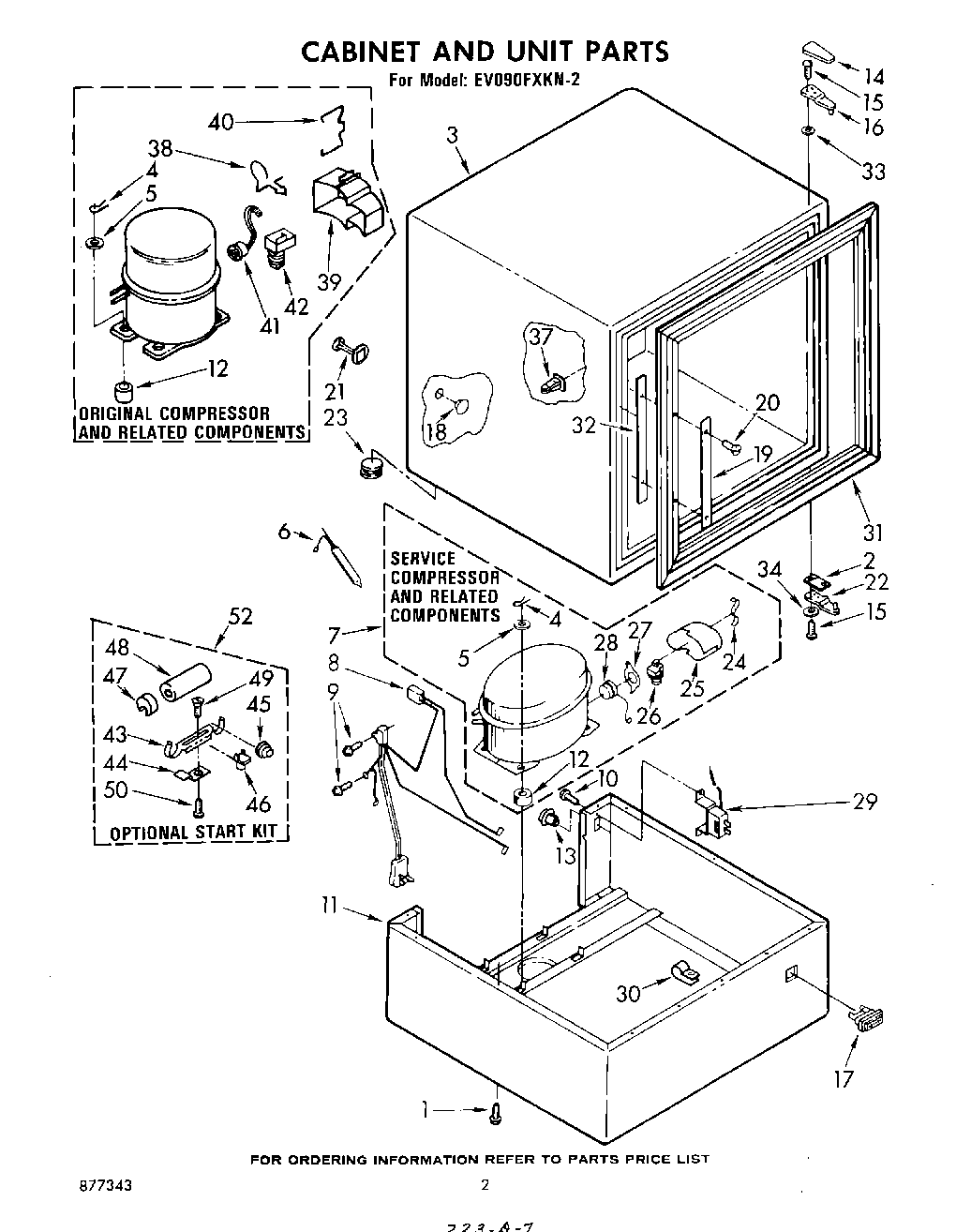

EV090FXKN2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	WPL LIT656493
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	WPL LIT727649
	WPL LIT727639
	WPL LIT727641
	WPL LIT877343
	350956 Whirlpool Spray Assembly
1	WP489069 Whirlpool Compactor Screw
2	Spacer, Hinge
3	Cabinet (Not A Serviceable Part)
4	clip (4)
5	Washer
6	W10843121 Whirlpool Refrigerator Tube
7	Compressor (Includes Items 13, 14, 15, 16 & 17)
8	Harness, Wiring
9	Screw
10	Screw
11	Base, Cabinet
12	Grommet (4)
13	Knob, Control
14	Cover, Hinge
15	Screw
16	Hinge, Top
17	Light, Indicator
18	Hole Plug (2)
19	Strike, Door
20	Screw
21	Spacer (2)
22	Hinge, Bottom
23	Grommet
24	Cover Strap
25	Case, Relay
26	Relay
27	Spring
28	Overload
29	Control
30	Clamp, Wire
31	Collar Breaker
32	Plate, Strike
33	Lockwasher (3)
34	WP487576 Whirlpool Washer
37	Grommet
38	Clip (Used W/Original Compressor)
39	Cover, Relay & Overload Assembly (Used W/Original Compressor)
40	Clamp (Used W/Original Compressor)
41	Overload (W/Original Compressor)
42	Relay (W/Original Compressor)
43	Support, Bracket (Used On Start Kit 482278)
44	Bracket, Mounting (Used On Start Kit 482278)
45	Overload (Used On Start Kit 482278)
46	Relay (Used On Start Kit 482278)
47	Cap, Capacitor (Used On Start Kit 482278)
48	WP482156 Whirlpool Refrigerator Capacitor
49	Screw (2) (Used On Start Kit 482278)
50	Screw (Used On Start Kit 482278)
52	WP978025 Whirlpool Refrigerator Valve
52	72032 Whirlpool Touch Up Paint Black
52	VALVE, ACCESS (1/2“)
52	Kit, Insulation (Door Only)
52	978030 Whirlpool Refrigerator Valve
52	Start Kit
52	Almond (Uncut)
52	WP72107 Whirlpool Touchup
52	799344 Whirlpool Refrigerator Paint
52	72017 Whirlpool Appliance Touch-Up Paint White
52	606755 Whirlpool Refrigerator Bag
52	Enamel, Black (1 Qt. Uncut)
52	Transformer (115-230 Volt)
52	978026 Whirlpool Refrigerator Primary Valve
52	212643 Whirlpool Refrigerator Permagum Sealer
52	WPL 799351
52	833938 Whirlpool Refrigerator Terminal
52	WP505587 Whirlpool Refrigerator Sealer
52	978027 Whirlpool Refrigerator Primary Valve
52	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
52	VALVE, ACCESS (5/8“)
52	WPL 799832
52	511873 Whirlpool Refrigerator Paint
