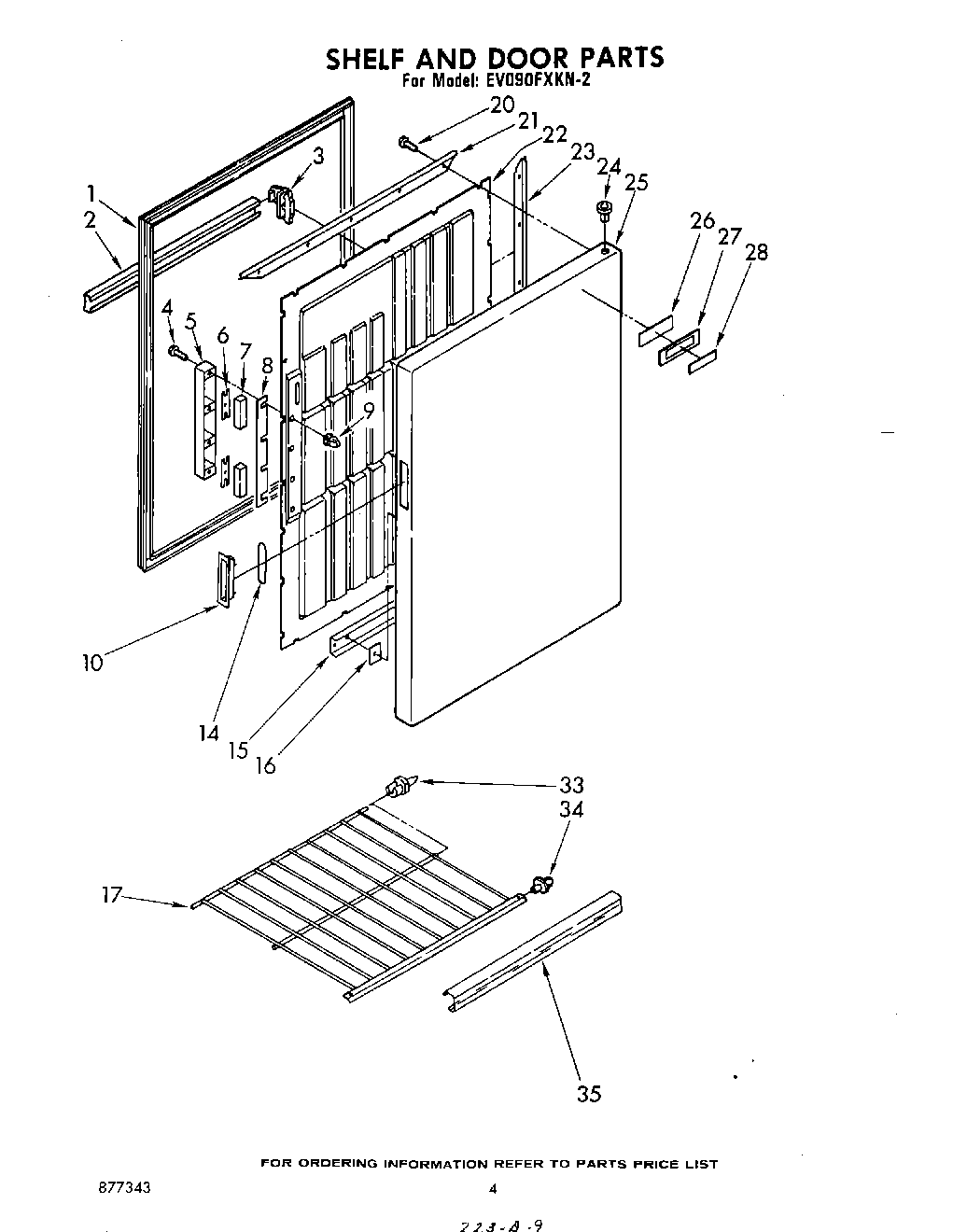

EV090FXKN2 03 – SECTION

Products

Position	Product
1	WP730643 Whirlpool Refrigerator Door Gasket
2	Trim, Door Shelf (3)
3	Retainer, Door Trim (6)
4	Screw
5	Cover, Magnet
6	Retainer, Magnet (2)
7	Magnet (2)
8	Shim, Magnet Cover (2)
9	Grommet
10	Handle (Almond)
14	Gasket, Handle
15	Brace
16	Spacer, Thermobreak (2)
17	Shelf, Wire (2)
20	W11624204 Whirlpool Screw
21	Retainer, Gasket Top & Bottom (2)
22	Panel, Interior Door
23	Retainer, Gasket Side (2)
24	Bearing, Hinge (2)
25	Panel, Exterior Door
26	Tape Strip
27	WPL 849310
28	Insert, Nameplate
33	Stud, Shelf Back (R.S.) (6)
33	Stud, Shelf Back (L.S.) (6)
34	Stud, Shelf Front (4)
35	Trim, Shelf Front (2)
