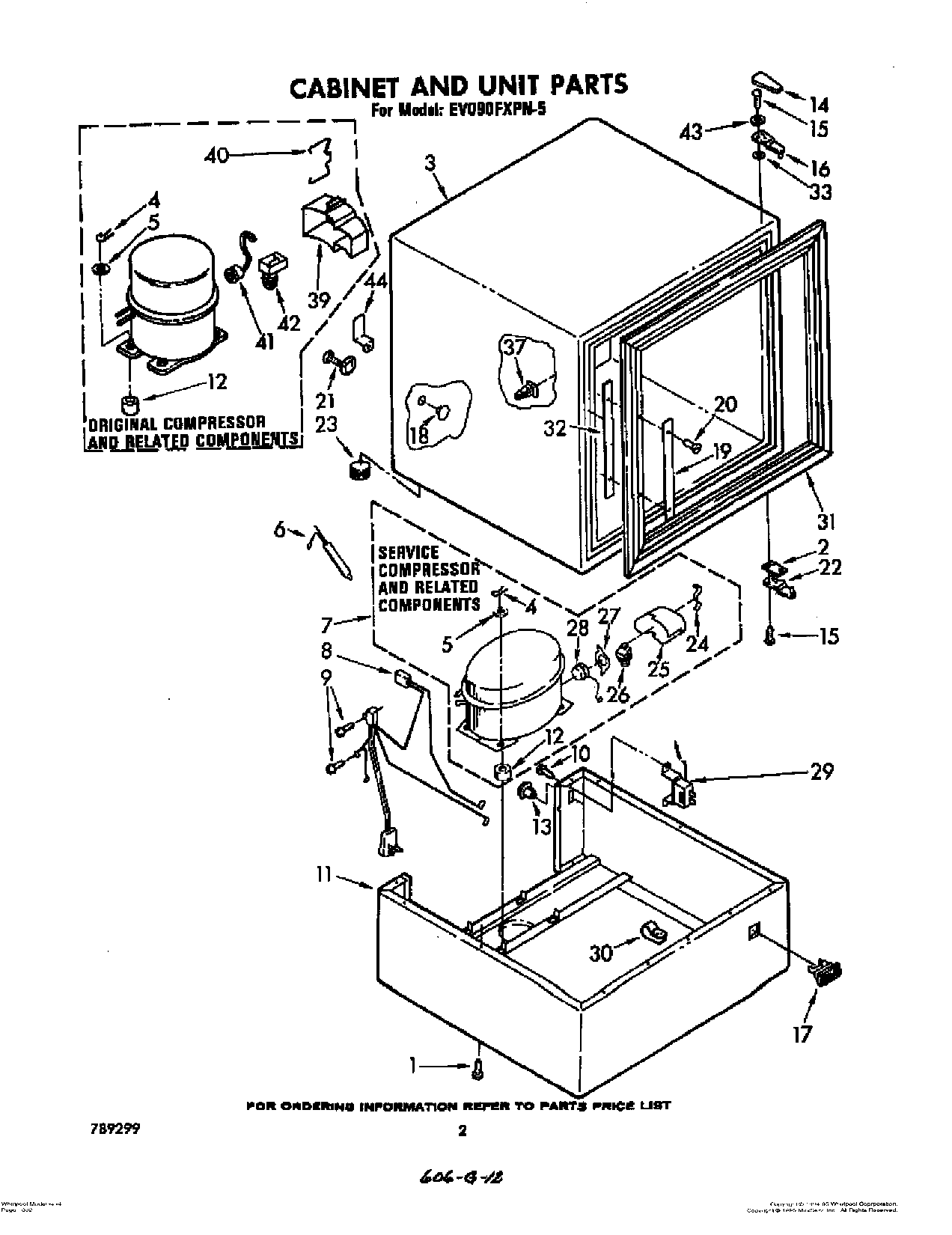

EV090FXPN5 02 – CABINET AND UNIT PARTS
Written by
in
EV090FXPN5 02 – CABINET AND UNIT PARTS
Products
Position
Product
350956 Whirlpool Spray Assembly
285006 Whirlpool Spray
WPL LIT789299
WPL LIT730234
Leveler (Thinner) (2oz.)
WPL LIT727855
WPL LIT728839
WPL LIT656493
1
Screw (12)
2
Spacer, Hinge
3
Cabinet (Not A Serviceable Part)
4
Clip (4)
5
Washer
6
Drier
7
Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit)
8
Harness, Wiring
9
Screw
10
Screw
11
Base, Cabinet
12
876811 Whirlpool Grommet
13
Knob, Control
14
Cover, Hinge
15
Screw
16
Hinge, Top
17
Light, Indicator
18
Hole Plug (2)
19
Strike, Door
20
Screw
21
Spacer (2)
22
Hinge, Bottom
23
Grommet
24
Cover, Spring
25
Cover, Terminal
26
Relay
27
Spring, Overload
28
overload
29
Control
30
Clamp, Wire
31
Collar Breaker
32
Plate, Strike
33
Lockwasher (3)
37
Grommet
39
Cover, Terminal
40
Strap
41
Overload (W/Original Compressor)
42
Relay
43
WP487576 Whirlpool Washer
43
WP487802 Whirlpool Refrigerator Washer
44
VALVE, ACCESS (5/8“)
44
Almond (Uncut)
44
212643 Whirlpool Refrigerator Permagum Sealer
44
606755 Whirlpool Refrigerator Bag
44
833938 Whirlpool Refrigerator Terminal
44
WP505587 Whirlpool Refrigerator Sealer
44
978027 Whirlpool Refrigerator Primary Valve
44
978026 Whirlpool Refrigerator Primary Valve
44
978030 Whirlpool Refrigerator Valve
44
WP978025 Whirlpool Refrigerator Valve
44
VALVE, ACCESS (1/2“)
44
Clip, Cord Plug
44
Enamel, Black (1 Qt. Uncut)
44
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
44
72032 Whirlpool Touch Up Paint Black
44
Transformer (115-230 Volt)
44
Kit, Insulation (Door Only)
44
WP72107 Whirlpool Touchup
←
