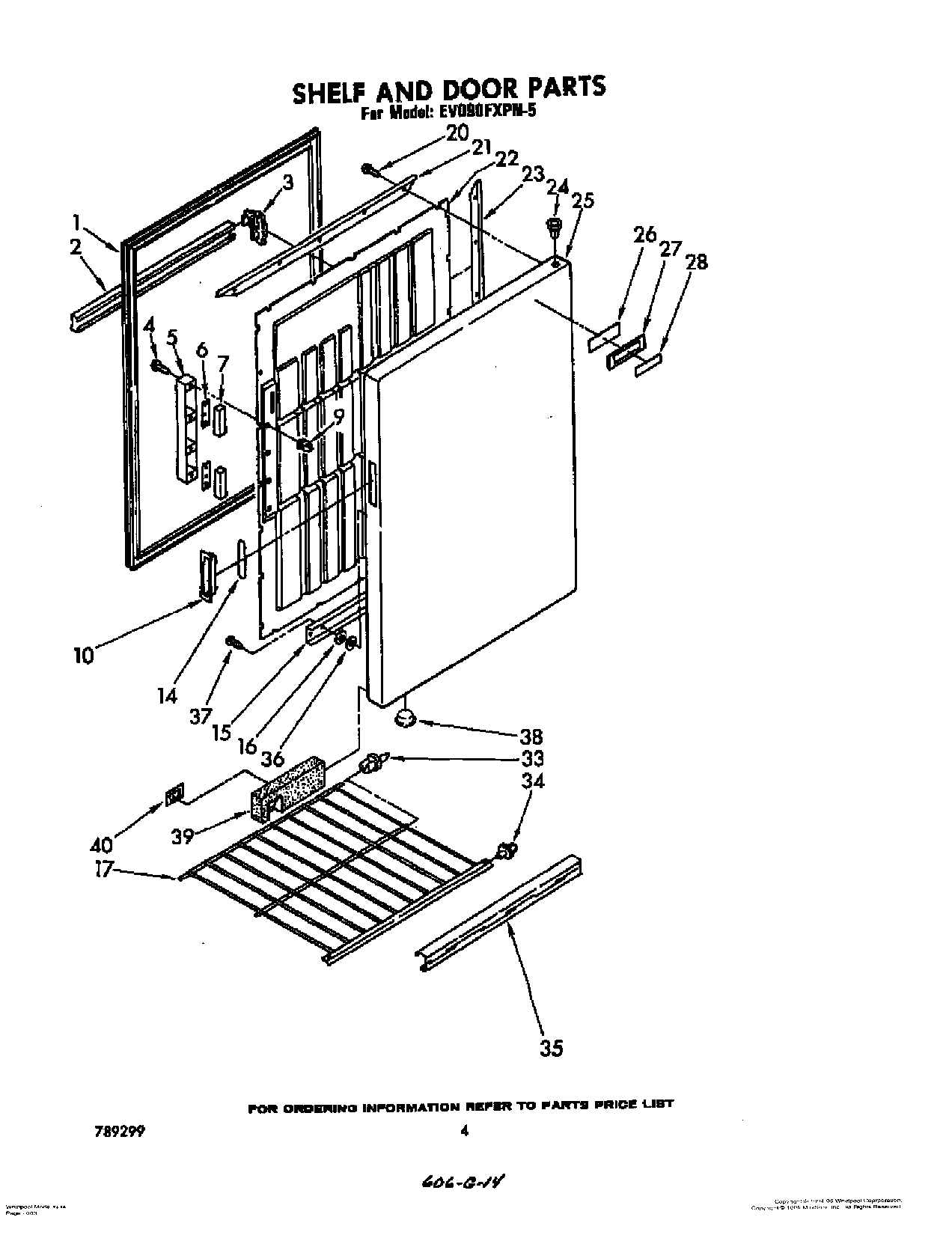

EV090FXPN5 03 – SHELF AND DOOR PARTS

Products

Position	Product
1	WP730643 Whirlpool Refrigerator Door Gasket
2	Trim, Door Shelf (3)
3	Retainer, Door Trim (6)
4	Screw
5	Cover, Magnet
6	Retainer, Magnet (2)
7	Magnet (2)
9	Grommet
10	Handle (Almond)
14	Gasket, Handle
15	Brace
16	WP487802 Whirlpool Refrigerator Washer
17	Shelf, Wire (2)
20	W11624204 Whirlpool Screw
21	Retainer, Gasket Top & Bottom (2)
22	Panel, Interior Door
23	Retainer, Gasket Side (2)
24	Bearing, Hinge (2)
25	Panel, Exterior Door
26	Tape Strip
27	WPL 849310
28	Insert, Nameplate
33	Stud, Shelf Back (R.S.) (6)
33	Stud, Shelf Back (L.S.) (6)
34	Stud, Shelf Front (4)
35	Trim, Shelf Front (2)
36	WP487576 Whirlpool Washer
37	Screw
38	Plug, Vent
39	Insulation Block (Vented)
40	Gasket, Vacuum Relief
