| 350956 Whirlpool Spray Assembly |
| WPL LIT656493 |
| WPL LIT728839 |
| WPL LIT879553 |
| Leveler (Thinner) (2oz.) |
| WPL LIT753864 |
| 285006 Whirlpool Spray |
| WPL LIT730820 |
| WPL LIT730810 |

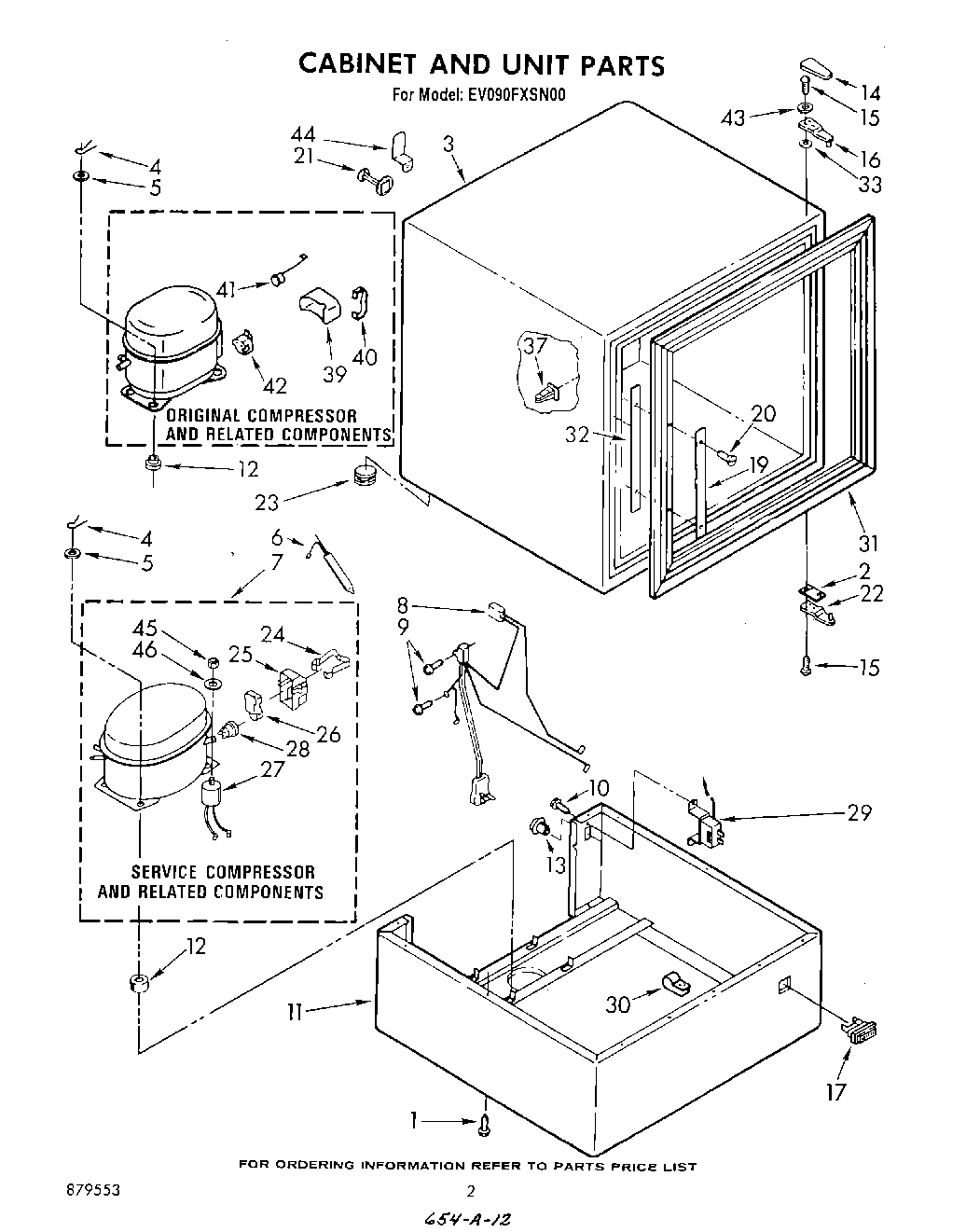

| 1 | Screw |
| 2 | Spacer, Hinge |
| 3 | Cabinet (Not A Serviceable Part) |
| 4 | Clip (4) |
| 5 | Washer |
| 6 | Drier |
| 7 | Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44) |
| 8 | Harness, Wiring |
| 9 | Screw |
| 10 | Screw |
| 11 | Base, Cabinet |
| 12 | 876811 Whirlpool Grommet |
| 13 | Knob, Control |
| 14 | Cover, Hinge |
| 15 | Screw |
| 16 | Hinge, Top |
| 17 | Light, Indicator |
| 19 | Strike, Door |
| 20 | Screw |
| 21 | Spacer (2) |
| 22 | Hinge, Bottom |
| 23 | Grommet |
| 25 | Cover, Terminal |
| 26 | Relay |
| 27 | Capacitor |
| 28 | Overload |
| 29 | Control |
| 30 | Clamp, Wire |
| 31 | Collar Breaker |
| 32 | Plate, Strike |
| 33 | Lockwasher (3) |
| 37 | Grommet |
| 39 | Cover |
| 40 | Strap |
| 41 | Overload (W/Original Compressor) |
| 42 | Relay |
| 43 | WP487576 Whirlpool Washer |
| 43 | WP487802 Whirlpool Refrigerator Washer |
| 44 | Clip, Cord Plug |
| 45 | Nut |
| 46 | Washer |
| 46 | 978027 Whirlpool Refrigerator Primary Valve |
| 46 | WP505587 Whirlpool Refrigerator Sealer |
| 46 | 833938 Whirlpool Refrigerator Terminal |
| 46 | 606755 Whirlpool Refrigerator Bag |
| 46 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 46 | VALVE, ACCESS (5/8``) |
| 46 | Almond (Uncut) |
| 46 | 978026 Whirlpool Refrigerator Primary Valve |
| 46 | 978030 Whirlpool Refrigerator Valve |
| 46 | WP978025 Whirlpool Refrigerator Valve |
| 46 | VALVE, ACCESS (1/2``) |
| 46 | Enamel, Black (1 Qt. Uncut) |
| 46 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 46 | 72032 Whirlpool Touch Up Paint Black |
| 46 | Transformer (115-230 Volt) |
| 46 | Kit, Insulation (Door Only) |
| 46 | WP72107 Whirlpool Touchup |
