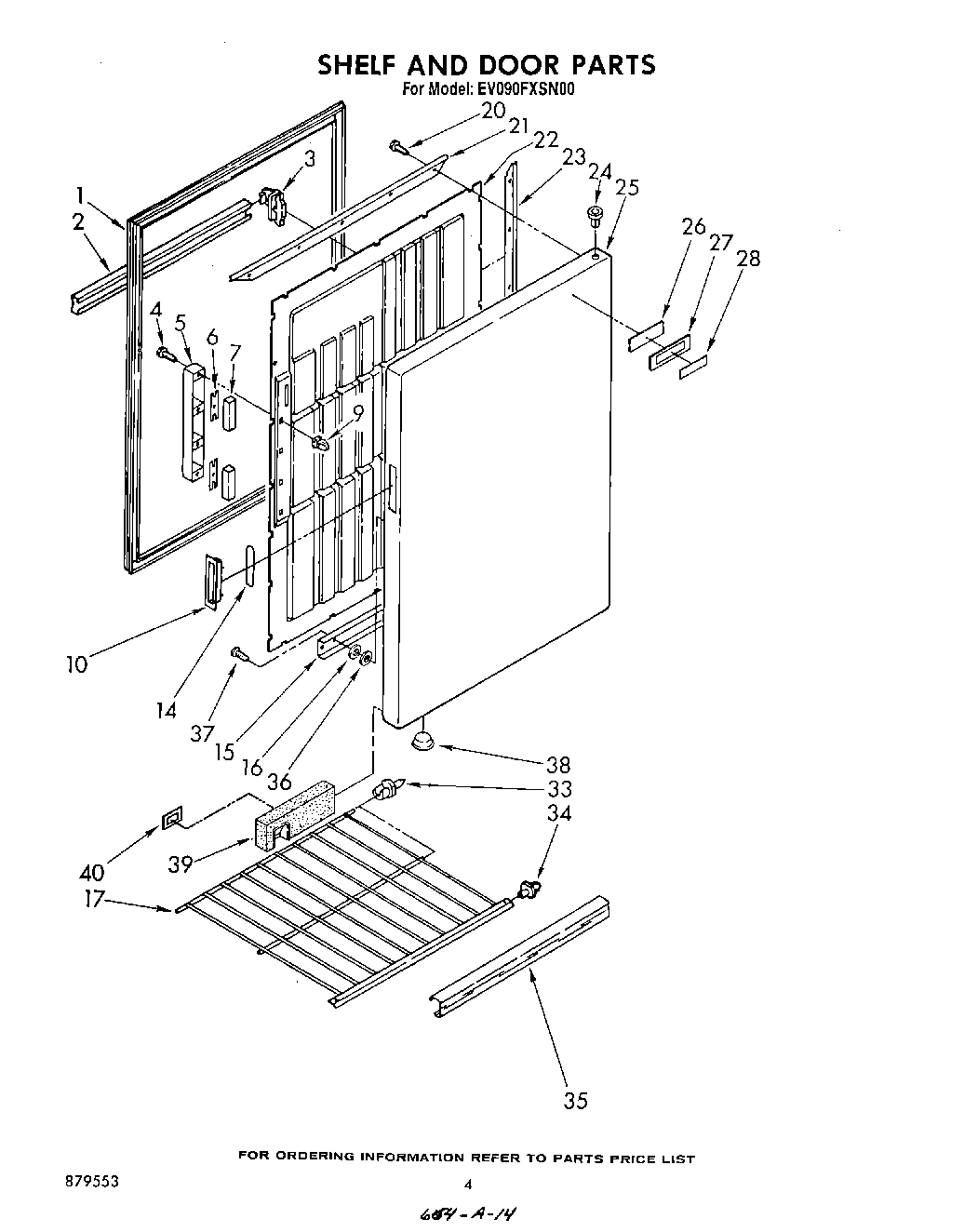

| 1 | WP730643 Whirlpool Refrigerator Door Gasket |
| 2 | Trim, Door Shelf (3) |
| 3 | Retainer, Trim (8) |
| 4 | Screw |
| 5 | Cover, Magnet |
| 6 | Retainer, Magnet (2) |
| 7 | Magnet (2) |
| 9 | Grommet |
| 10 | Handle, Door |
| 14 | Gasket, Handle |
| 15 | Brace |
| 16 | WP487802 Whirlpool Refrigerator Washer |
| 17 | Shelf, Wire (2) |
| 20 | W11624204 Whirlpool Screw |
| 21 | Retainer, Gasket Top & Bottom (2) |
| 22 | Panel, Interior Door |
| 23 | Retainer, Gasket Side (2) |
| 24 | Bearing, Hinge (2) |
| 25 | Panel, Exterior Door |
| 26 | Tape Strip |
| 27 | WPL 849310 |
| 28 | Insert, Nameplate |
| 33 | Stud, Shelf Back (L.S.) (6) |
| 33 | Stud, Shelf Back (R.S.) (6) |
| 34 | Stud, Shelf Front (4) |
| 35 | Trim, Shelf Front (2) |
| 36 | WP487576 Whirlpool Washer |
| 37 | Screw |
| 38 | Plug, Vent |
| 39 | Insulation Block (Vented) |
| 40 | Gasket, Vacuum Relief |
