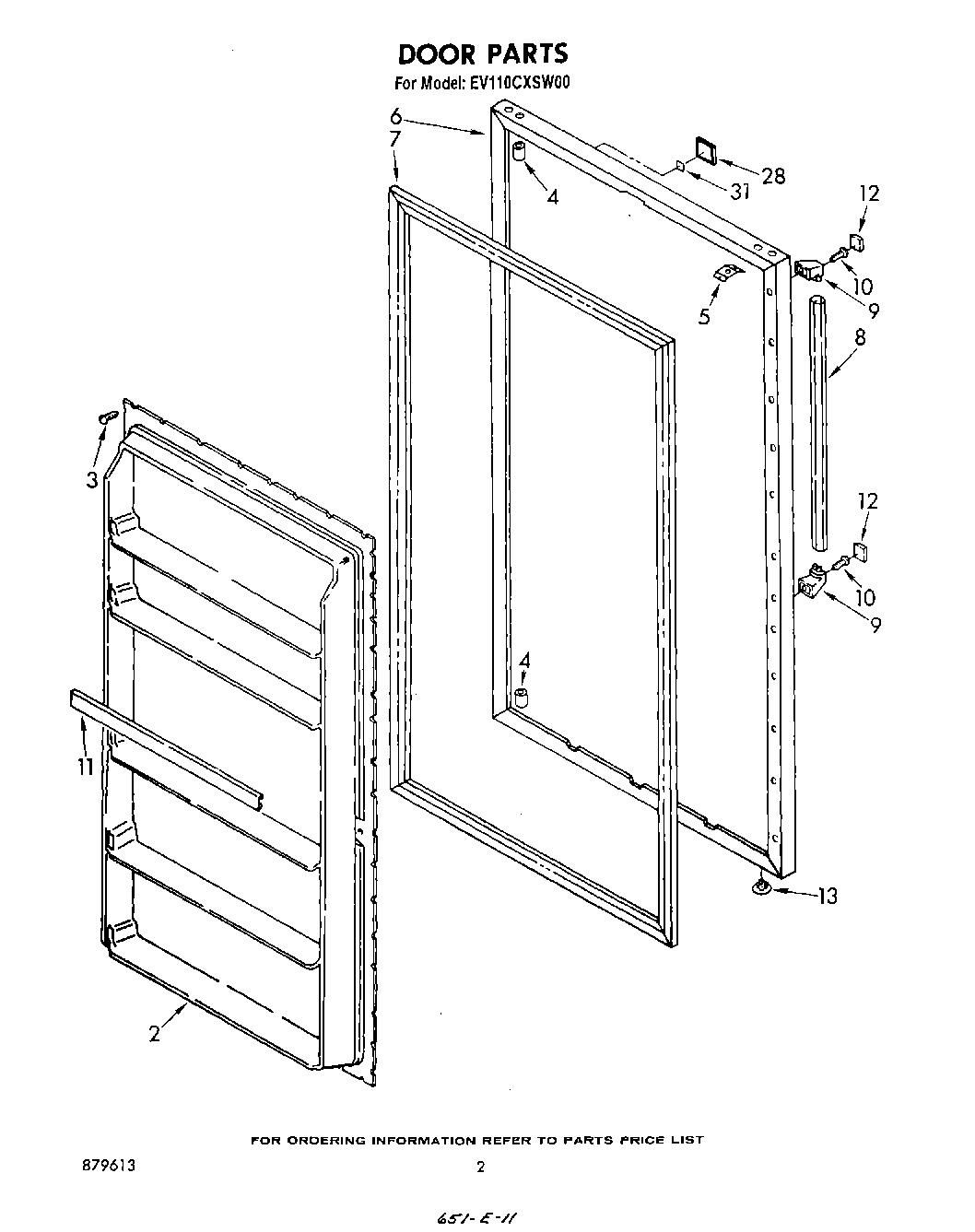

EV110CXSW00 02 – DOOR , LIT/OPTIONALadmin2025-04-26T11:07:53+00:00EV110CXSW00 02 – DOOR , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| WPL LIT656493 |
| 285006 Whirlpool Spray |
| Guide, Use & Care |
| Energy Label |
| Leveler (Thinner) (2oz.) |
| Part List |
| Service & Wiri |
| 350942 Whirlpool Spray Paint |
| 350956 Whirlpool Spray Assembly |
| 2 | Panel, Interior |
| 3 | WP489069 Whirlpool Compactor Screw |
| 3 | SCREW |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | WP939101 Whirlpool Refrigerator Plate |
| 6 | Door, Exterior (White) |
| 7 | Gasket, Magnetic |
| 8 | Handle, Center |
| 9 | End, Handle (2) |
| 10 | Screw, 8-15 x 1-5/8 |
| 11 | Trim, Door Shelf (Bottom) (3) |
| 11 | Trim, Door Shelf (Top) (1) |
| 12 | Cover (2) |
| 13 | Hole Plug (2) |
| 28 | Nameplate |
| 31 | Almond (Uncut) |
| 31 | Transformer (115-230 Volt) |
| 31 | Tape Strip |
| 31 | 799344 Whirlpool Refrigerator Paint |
| 31 | WP72107 Whirlpool Touchup |
| 31 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 31 | 606755 Whirlpool Refrigerator Bag |
| 31 | 833938 Whirlpool Refrigerator Terminal |
| 31 | 876370 Whirlpool Refrigerator Insulation |
| 31 | WP505587 Whirlpool Refrigerator Sealer |
| 31 | Enamel, Black (1 Qt. Uncut) |
| 31 | WPL 876029 |
| 31 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 31 | 72032 Whirlpool Touch Up Paint Black |
| 31 | WPL 799833 |
| 31 | 72017 Whirlpool Appliance Touch-Up Paint White |
