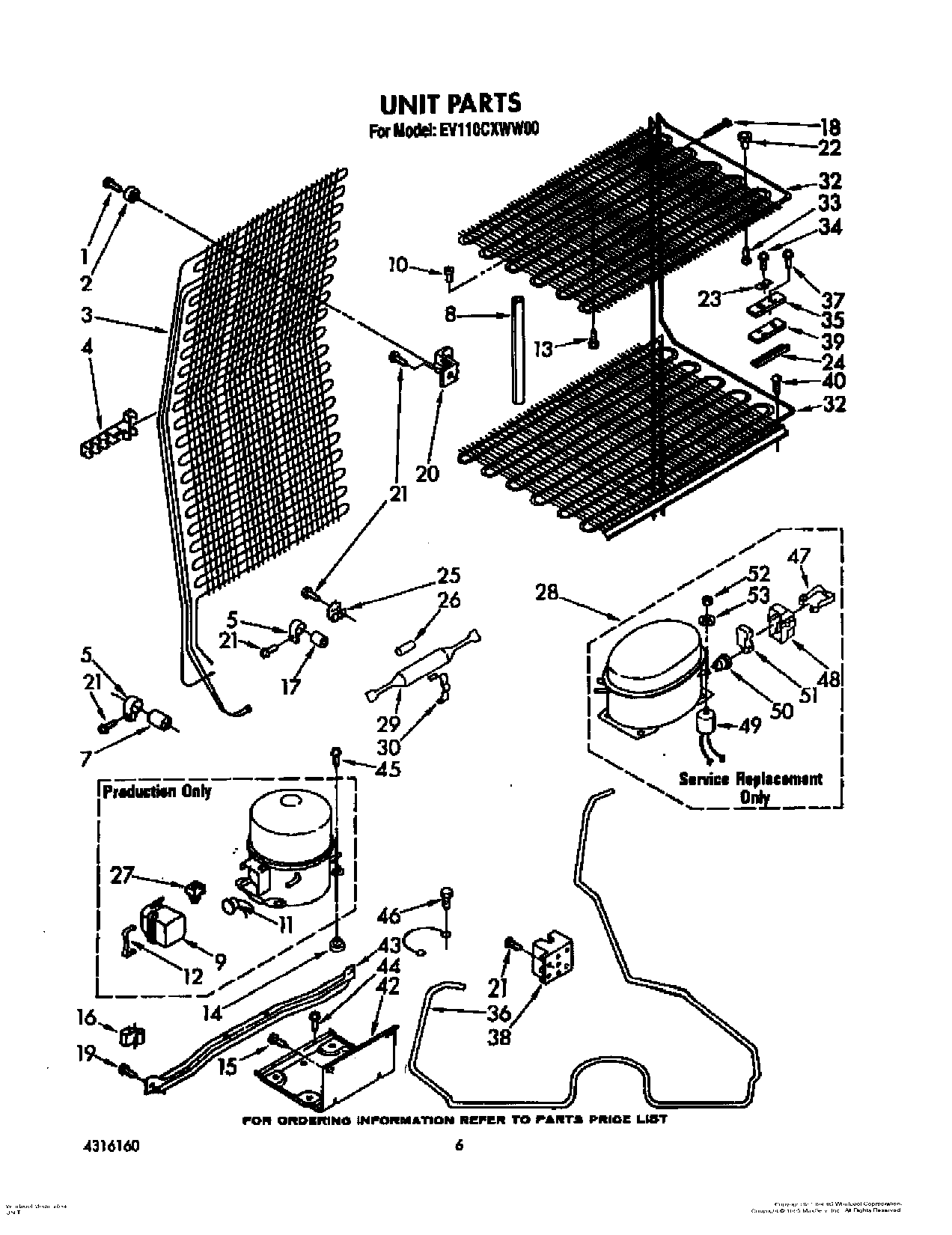

EV110CXWW00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Clamp Tube
7	Dampener
8	Cover, Connecting Lines (9.25 Inches)
8	Cover, Connecting Lines (10 Inches)
8	Cover, Connecting Lines (11.5 Inches)
9	Cover
10	Spacer (3)
11	Overload
13	Screw, 8-32 x 1-1/2
14	876811 Whirlpool Grommet
16	W10812038 Whirlpool Refrigerator Clip
17	Dampener
18	Strap
20	Condenser Bracket (2)
21	WP489478 Whirlpool Refrigerator Screw
22	Spacer (3)
23	PLATE
24	Clip
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Relay
28	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
29	W10843121 Whirlpool Refrigerator Tube
30	Clamp, Dryer
32	Evaporator (Shelf, 2nd & 3rd)
32	Evaporator (Shelf, Top)
32	Evaporator (Shelf, Bottom)
33	WP488163 Whirlpool Refrigerator Screw
34	Screw, 8-32 x 7/16
35	Shim, Thermostat Plate
36	Heat Exchanger
37	Screw, 8-32 x 1/2
38	Box, Junction
39	Plate, Thermostat
40	WP308685 Whirlpool Microwave Screw
42	Unit Mounting Plate
43	Unit Mounting Rail
44	489340 Whirlpool Refrigerator Screw
46	303776 Whirlpool Dishwasher Screw
47	Strap
48	Cover, Terminal
49	Capacitor
50	Overload
51	Relay
52	Nut
53	876764 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	978030 Whirlpool Refrigerator Valve
53	WP978025 Whirlpool Refrigerator Valve
53	VALVE, ACCESS (1/2“)
53	978027 Whirlpool Refrigerator Primary Valve
53	Washer
53	VALVE, ACCESS (5/8“)
