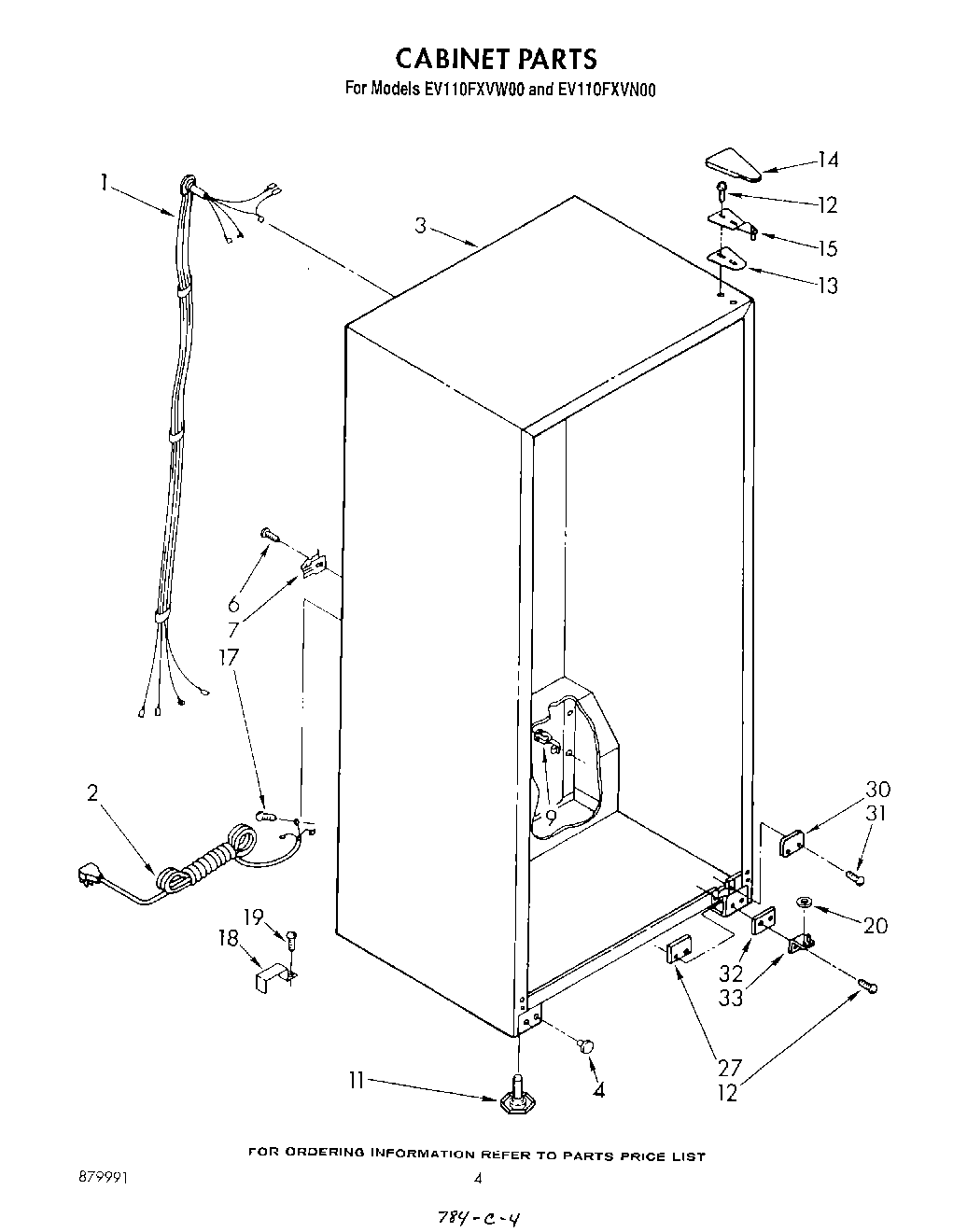

EV110FXVN00 03 – CABINET

Products

Position	Product
1	Cabinet Wiring
2	Cord, Service
3	Cabinet (Not A Serviceable Part)
4	WPL 941416
4	Hole, Plug (2) (Almond)
6	W11624204 Whirlpool Screw
7	Clamp
9	Bushing, Strain Relief
11	W11117769 Whirlpool Refrigerator Leveler
11	repair
12	Screw (Repair)
12	WP999367 Whirlpool Refrigerator Screw
13	Shim, Hinge
14	1119787 Whirlpool Refrigerator Hinge Cover
15	Shim, Hinge Top
17	Screw, 8-32 x 3/8
18	Clip, Cord Plug
19	Screw
20	WP487802 Whirlpool Refrigerator Washer
27	Tap Plate, Bottom
30	Tube, Rail Cover (Almond)
30	Tube, Rail Cover (White)
31	Screw
32	Shim, Bottom Hinge
33	Hinge, Bottom R.H.
