EV120FXDN01 02 – LINER, LIT/OPTIONAL

EV120FXDN01 02 – LINER, LIT/OPTIONAL

Written by

in

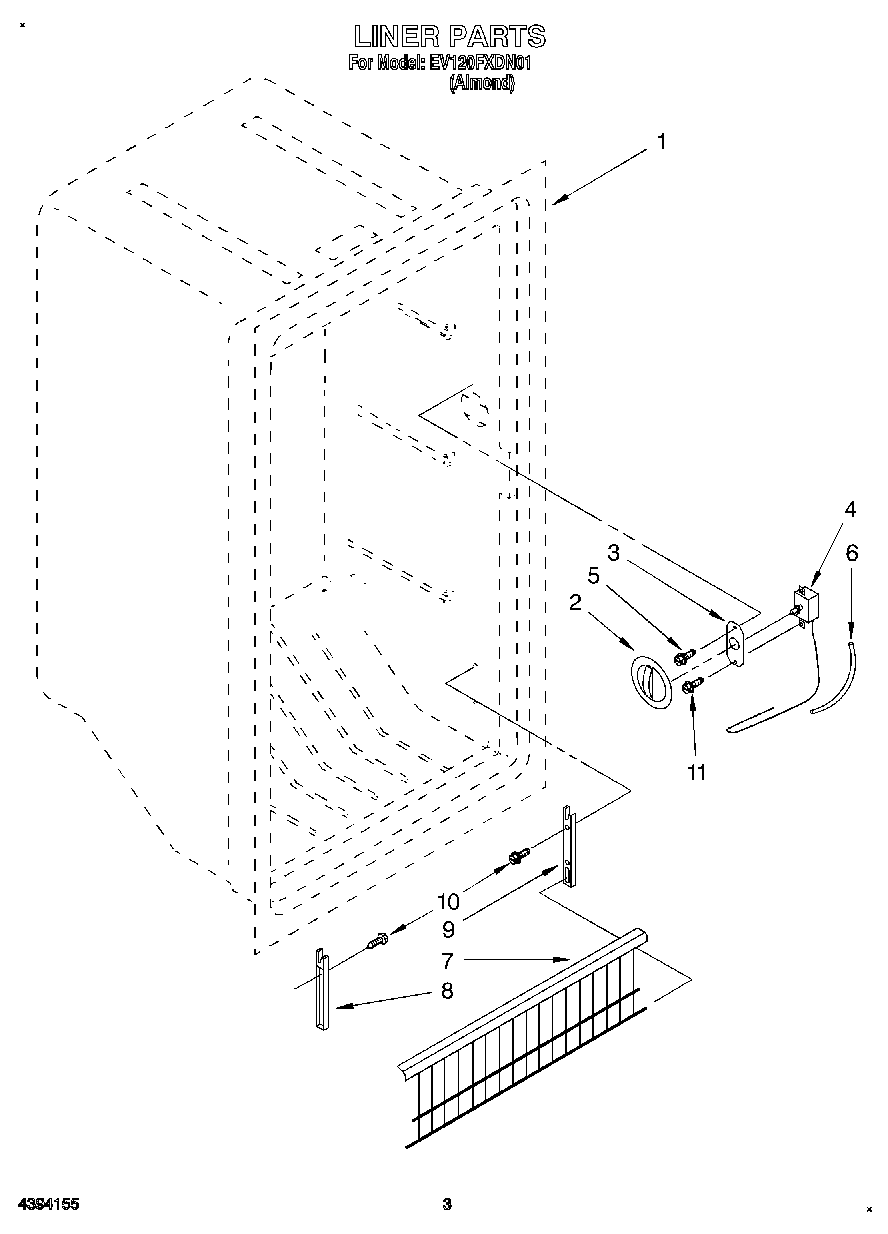

EV120FXDN01 02 – LINER, LIT/OPTIONAL

Products

PositionProduct
Use & Care Guide
Wiring Diagram
1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5WPW10068250 Whirlpool Dishwasher Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Gate
8Support, Fence, (L.H.)
94-80576-202 Whirlpool Refrigerator Gate Support
10Screw
11TAPE, VINYL (3/4 X 108“)
11WP72107 Whirlpool Touchup
11SCREW
11212643 Whirlpool Refrigerator Permagum Sealer
11876370 Whirlpool Refrigerator Insulation
11WP503695 Whirlpool Refrigerator Sealer
11WP505587 Whirlpool Refrigerator Sealer
11Enamel (Almond) (1 Qt. Uncut)
11350956 Whirlpool Spray Assembly
