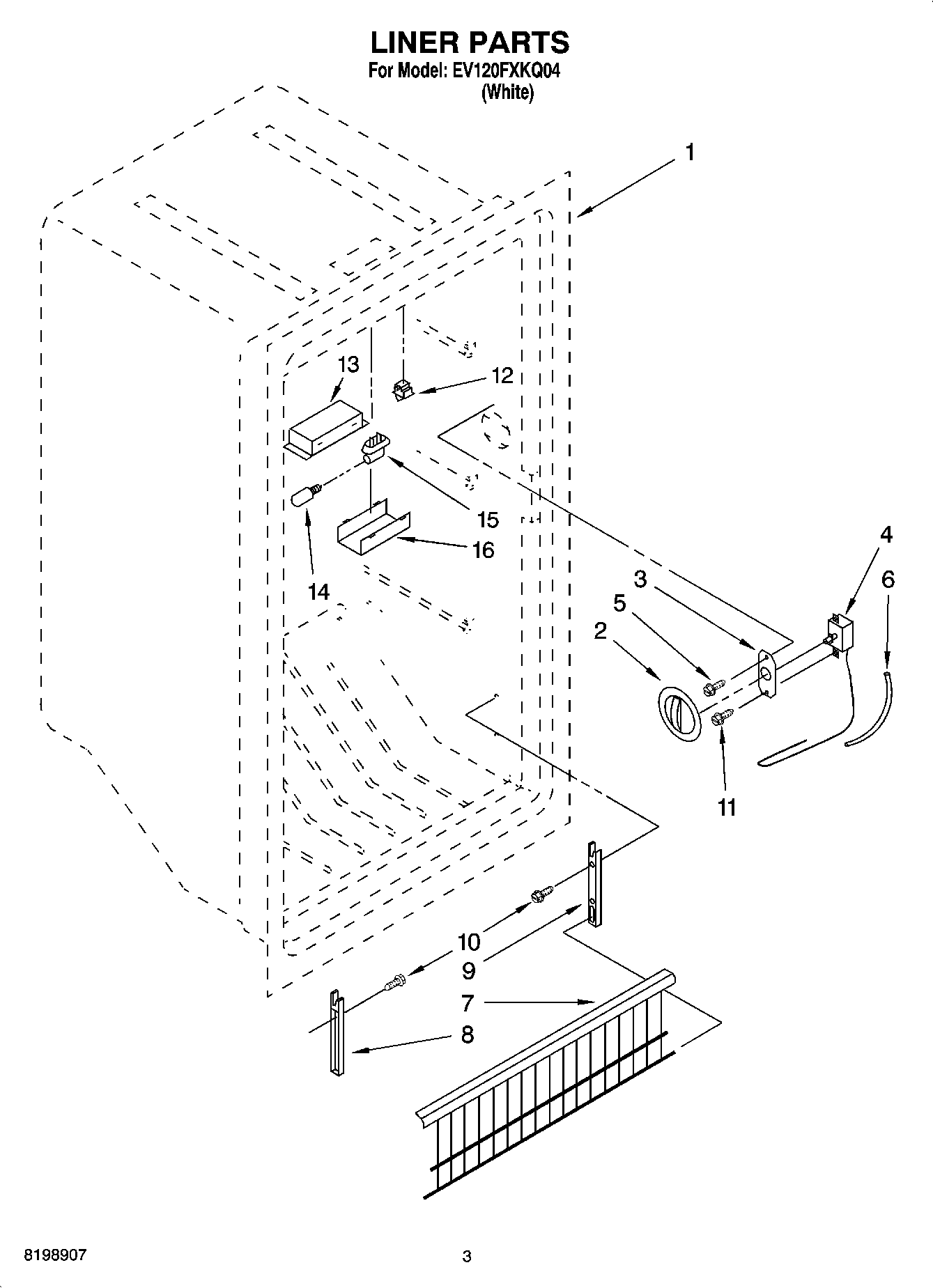

EV120FXKQ04 02 – LINER PARTS PARTS NOT ILLUSTRATED

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	SCREW
12	W11384469 Whirlpool Door Switch
13	Bracket
14	W10873798 Whirlpool Refrigerator Light Bulb
15	Socket, Light
16	Parts Not Illustrated and Optional Parts (Not Included)
16	Shield, Light
16	Customer Touch-Up Material
16	REFINISHING MATERIAL
16	Miscellaneous
16	Enamel (Almond) (1 Qt. Uncut)
16	212643 Whirlpool Refrigerator Permagum Sealer
16	WP72107 Whirlpool Touchup
16	TAPE, VINYL (3/4 X 108“)
16	WP505587 Whirlpool Refrigerator Sealer
16	WP503695 Whirlpool Refrigerator Sealer
16	876370 Whirlpool Refrigerator Insulation
16	350956 Whirlpool Spray Assembly
