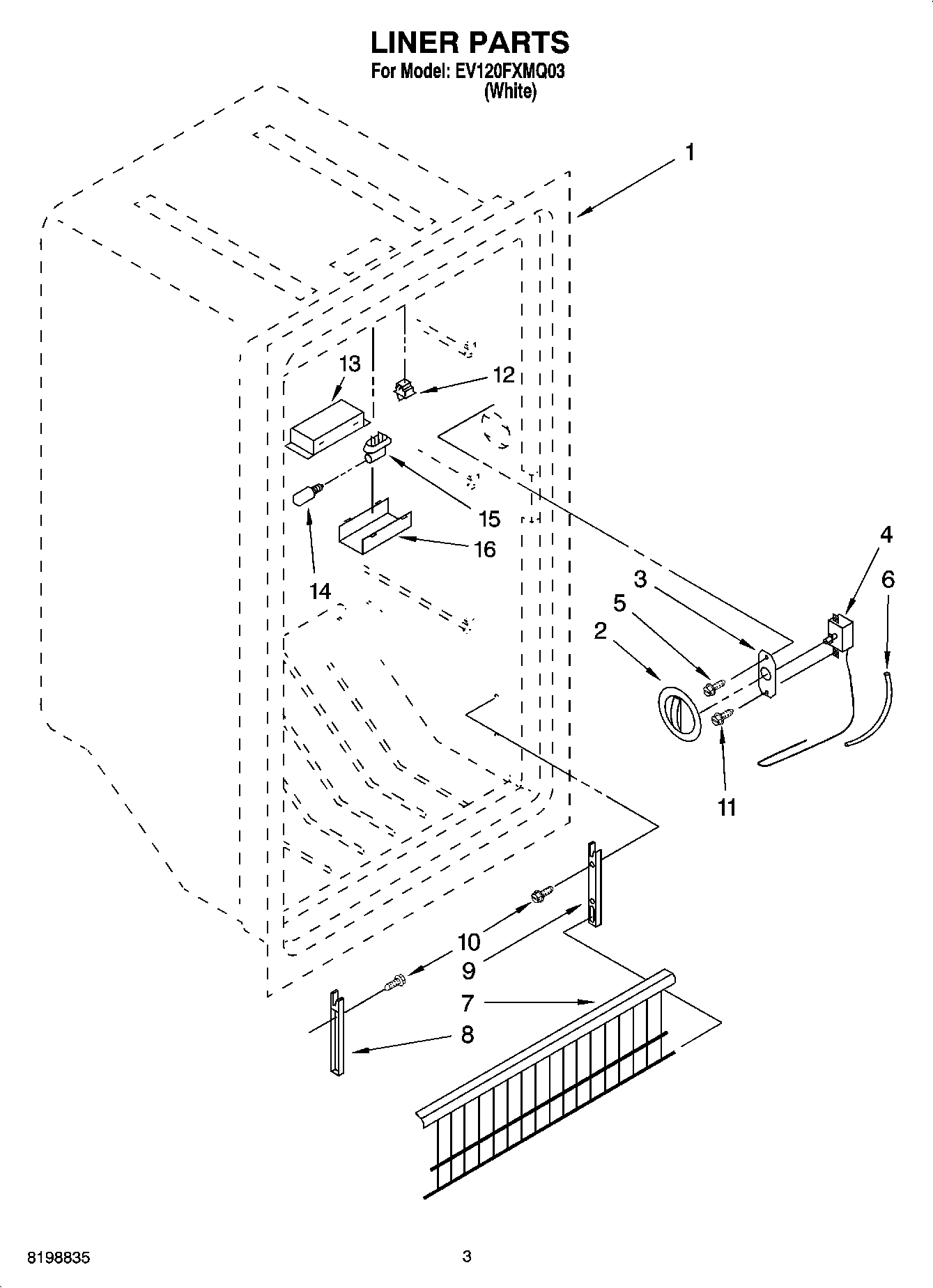

EV120FXMQ03 02 – LINER PARTS PARTS NOT ILLUSTRATED

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	SCREW
12	W11384469 Whirlpool Door Switch
13	Bracket
14	W10873798 Whirlpool Refrigerator Light Bulb
15	Socket, Light
16	Customer Touch-Up Material
16	Parts Not Illustrated and Optional Parts (Not Included)
16	Shield, Light
16	Enamel (Almond) (1 Qt. Uncut)
16	350956 Whirlpool Spray Assembly
16	TAPE, VINYL (3/4 X 108“)
16	WP505587 Whirlpool Refrigerator Sealer
16	WP503695 Whirlpool Refrigerator Sealer
16	876370 Whirlpool Refrigerator Insulation
16	212643 Whirlpool Refrigerator Permagum Sealer
16	WP72107 Whirlpool Touchup
16	REFINISHING MATERIAL
