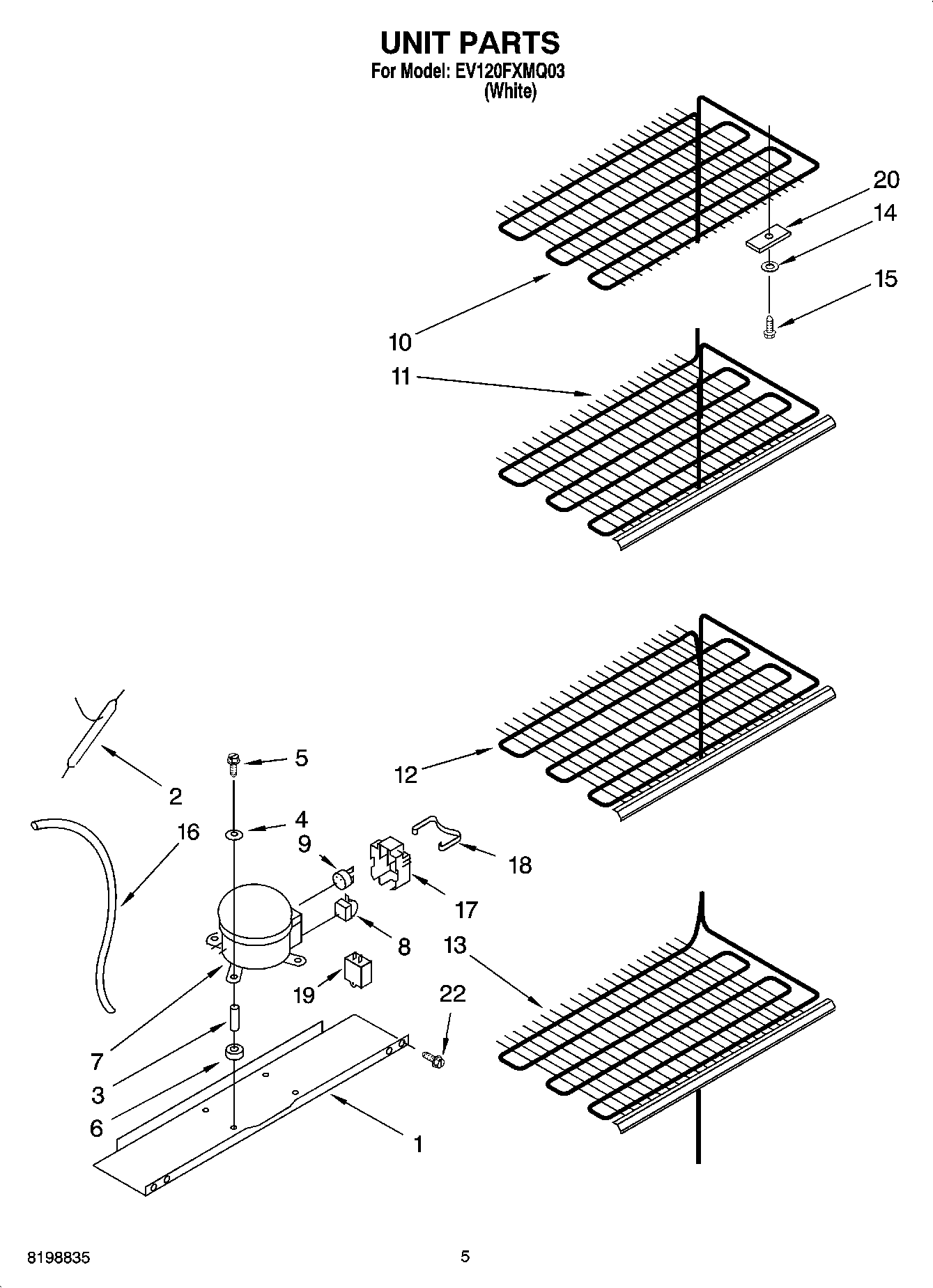

EV120FXMQ03 03 – UNIT PARTS

Products

Position	Product
1	Compressor Mounting Pan
2	W10843121 Whirlpool Refrigerator Tube
3	4356846 Whirlpool Refrigerator Sleeve
4	Washer
5	Screw, Compressor Mounting
6	Grommet, Mounting Compressor
7	W10309989 Whirlpool Refrigerator Compressor
8	Relay
9	2183409 Whirlpool Refrigerator Overload
10	Evaporator Top
11	Evaporator Shelf
12	Evaporator Shelf
13	Evaporator Shelf
14	W10903204 Whirlpool Refrigerator Washer
15	WP3-24004-109 Whirlpool Refrigerator Screw
16	Heat Exchanger
17	Cover
18	Clip
19	WPW10662129 Whirlpool Refrigerator Run Capacitor
20	1-80308-101 Whirlpool Refrigerator Bulb Clamp
22	WP3-24838-048 Whirlpool Refrigerator Screw
22	REFRIGERANT CHARGE 5.6 oz. (R-134A)
