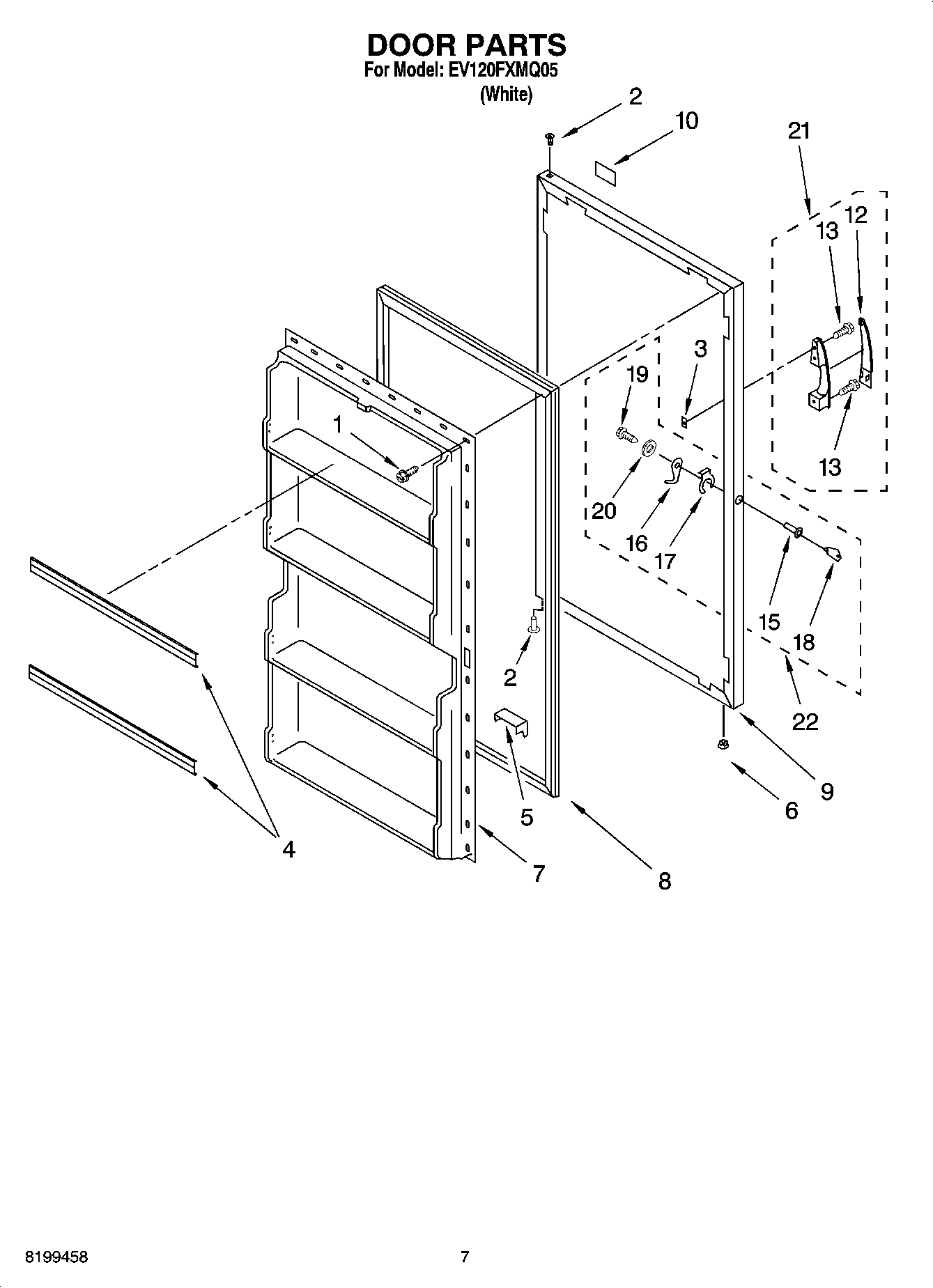

EV120FXMQ05 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350956 Whirlpool Spray Assembly
	REFINISHING MATERIAL
	Customer Touch-Up Material
	Parts Not Illustrated and Optional Parts (Not Included)
	Enamel (Almond) (1 Qt. Uncut)
	Miscellaneous
	TAPE, VINYL (3/4 X 108“)
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	212643 Whirlpool Refrigerator Permagum Sealer
	WP72107 Whirlpool Touchup
1	4390598 Whirlpool Refrigerator Screw
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	Anchor, Screw
4	Door Shelf Trim (4)
5	Foam Block
6	3-24898-007 Whirlpool Refrigerator Vent Plug
7	Interior Door
8	Door Gasket
9	Exterior Door
10	Nameplate
12	Insert, Handle
13	WP489491 Whirlpool Refrigerator Screw
15	4357145 Whirlpool Refrigerator Door Lock
16	Lock, Bolt
17	Spring Clip
18	WP4356840 Whirlpool Refrigerator Door Key
19	WP489478 Whirlpool Refrigerator Screw
20	Washer
21	Handle Assembly (Includes Items 13 & 14)
