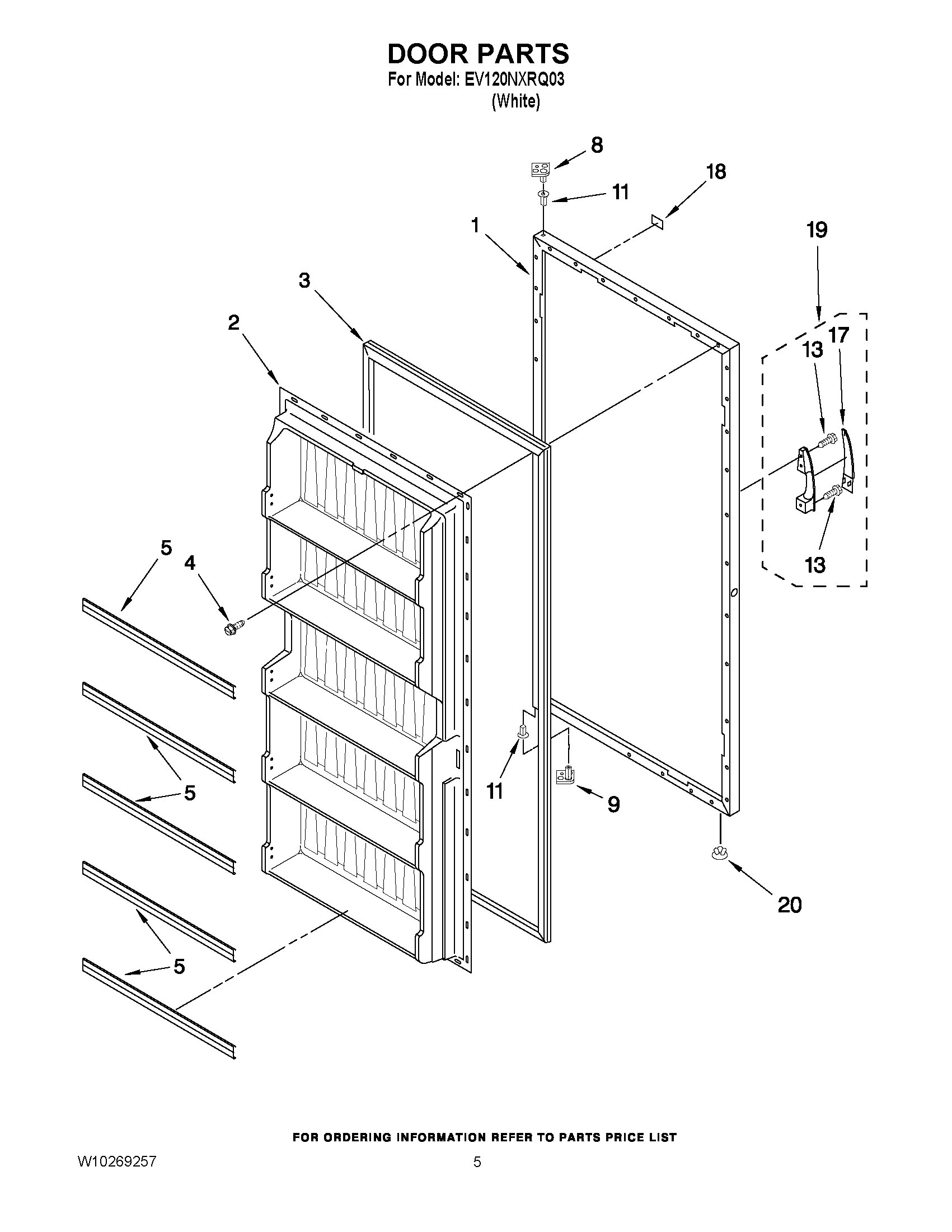

EV120NXRQ03 03 – DOOR PARTS

EV120NXRQ03 03 – DOOR PARTS

Written by

in

EV120NXRQ03 03 – DOOR PARTS

Products

PositionProduct
1Exterior Door (White (Includes Insulation))
2Panel, Interior
3Door Gasket
44390598 Whirlpool Refrigerator Screw
5Door Shelf Trim (4)
92-81124-001 Whirlpool Refrigerator Door Stop
114390731 Whirlpool Refrigerator Hinge Bushing
13WP489491 Whirlpool Refrigerator Screw
17Insert, Handle
18WP2213265 Whirlpool Refrigerator Nameplate
19Handle Assembly (Includes Items 13 & 14)
203-24898-007 Whirlpool Refrigerator Vent Plug
