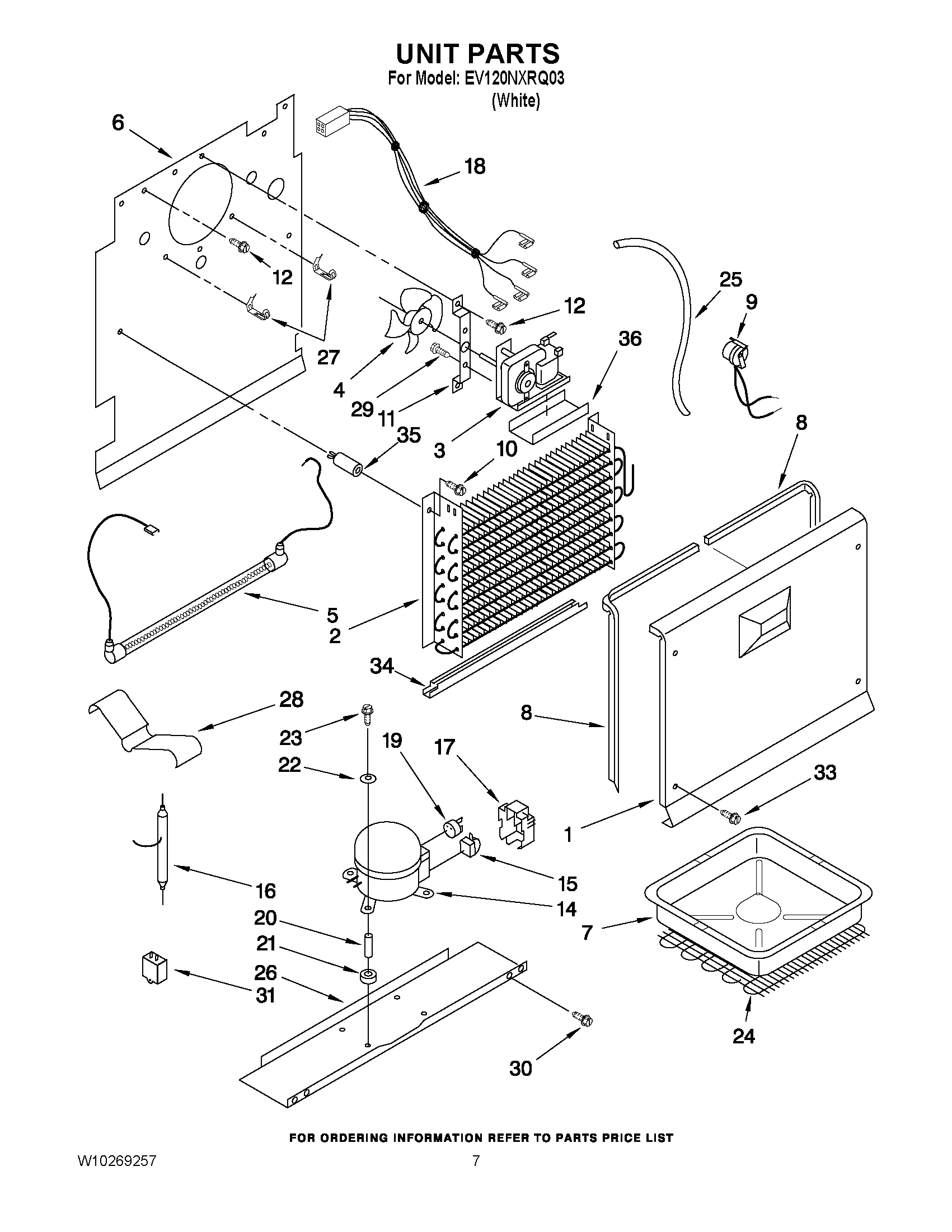

EV120NXRQ03 04 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1Cover, Evaporator
2Evaporator
3Fan Motor
4BLADE-FAN
5Heater, Defrost
6Plate, Evaporator Mounting
7WP4390675 Whirlpool Refrigerator Drip Pan
84390664 Whirlpool Refrigerator Gasket
84390663 Whirlpool Refrigerator Gasket
9WP1-81801-001 Whirlpool Refrigerator Bimetallic Defrost
112-80028-101 Whirlpool Refrigerator Motor Bracket
1260001022 Whirlpool Oven Screw
14W10309989 Whirlpool Refrigerator Compressor
15Relay
16W10843121 Whirlpool Refrigerator Tube
174356777 Whirlpool Term Cover
184-81785-001 Whirlpool Refrigerator Wire Harness
19WP2214067 Whirlpool Refrigerator Overload Relay
204356846 Whirlpool Refrigerator Sleeve
21Grommet, Mounting Compressor
22Washer
238210220 Whirlpool Bolt
24W10451951 Whirlpool Refrigerator Condenser
25Exchanger, Heat
26Compressor Mounting Pan
27Thermostat, Clip
28Clip, Heater
29WP3400094 Whirlpool Screw
30WP3-24838-048 Whirlpool Refrigerator Screw
31Capacitor
33WP3-24004-109 Whirlpool Refrigerator Screw
34Shield Heater
35Grommet
364357128 Whirlpool Refrigerator Motor Bracket
