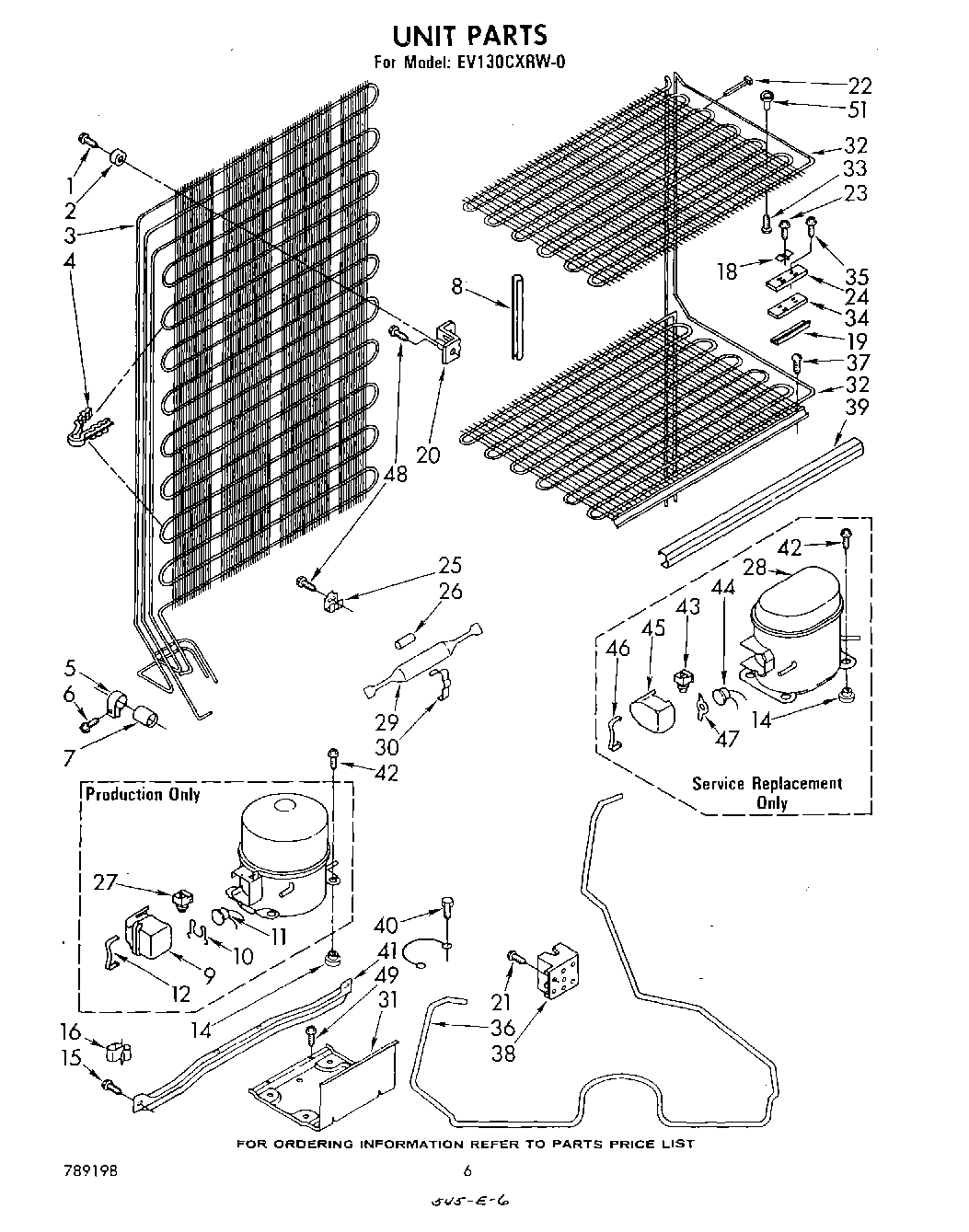

EV130CXRW0 04 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	dampener
8	Cover, Connecting Lines (10 Inches)
8	Cover, Connecting Lines (11.5 Inches)
9	Case, Relay
10	Overload Spring
11	Overload (Used W/Original Compressor)
12	Spring, Case
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	PLATE
19	Clip
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Strap
23	Screw, 8-32 x 7/16
24	Shim, Thermostat Plate
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Relay (Used W/Original Compressor)
28	W10439652 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Evaporator Shelves (Shelf, Top)
32	Evaporator Shelves (Shelf, Bottom)
32	Evaporator Shelves (Shelf, 2nd)
32	Evaporator Shelves (Shelf, 3rd)
33	WP488163 Whirlpool Refrigerator Screw
34	Plate, Thermostat
35	Screw, 8-32 x 1/2
36	Heat Exchanger
37	WP308685 Whirlpool Microwave Screw
38	Box, Junction
39	Trim, Shelf Front (3)
40	303776 Whirlpool Dishwasher Screw
41	Unit Mounting Rail
43	Relay
44	Overload
45	Cover, Terminal
46	Cover, Spring
47	Spring, Overload
48	WP489069 Whirlpool Compactor Screw
49	WP965173 Whirlpool Dishwasher Screw
51	978027 Whirlpool Refrigerator Primary Valve
51	978030 Whirlpool Refrigerator Valve
51	WP978025 Whirlpool Refrigerator Valve
51	VALVE, ACCESS (1/2“)
51	978026 Whirlpool Refrigerator Primary Valve
51	Spacer (3)
51	Start Kit
51	VALVE, ACCESS (5/8“)
