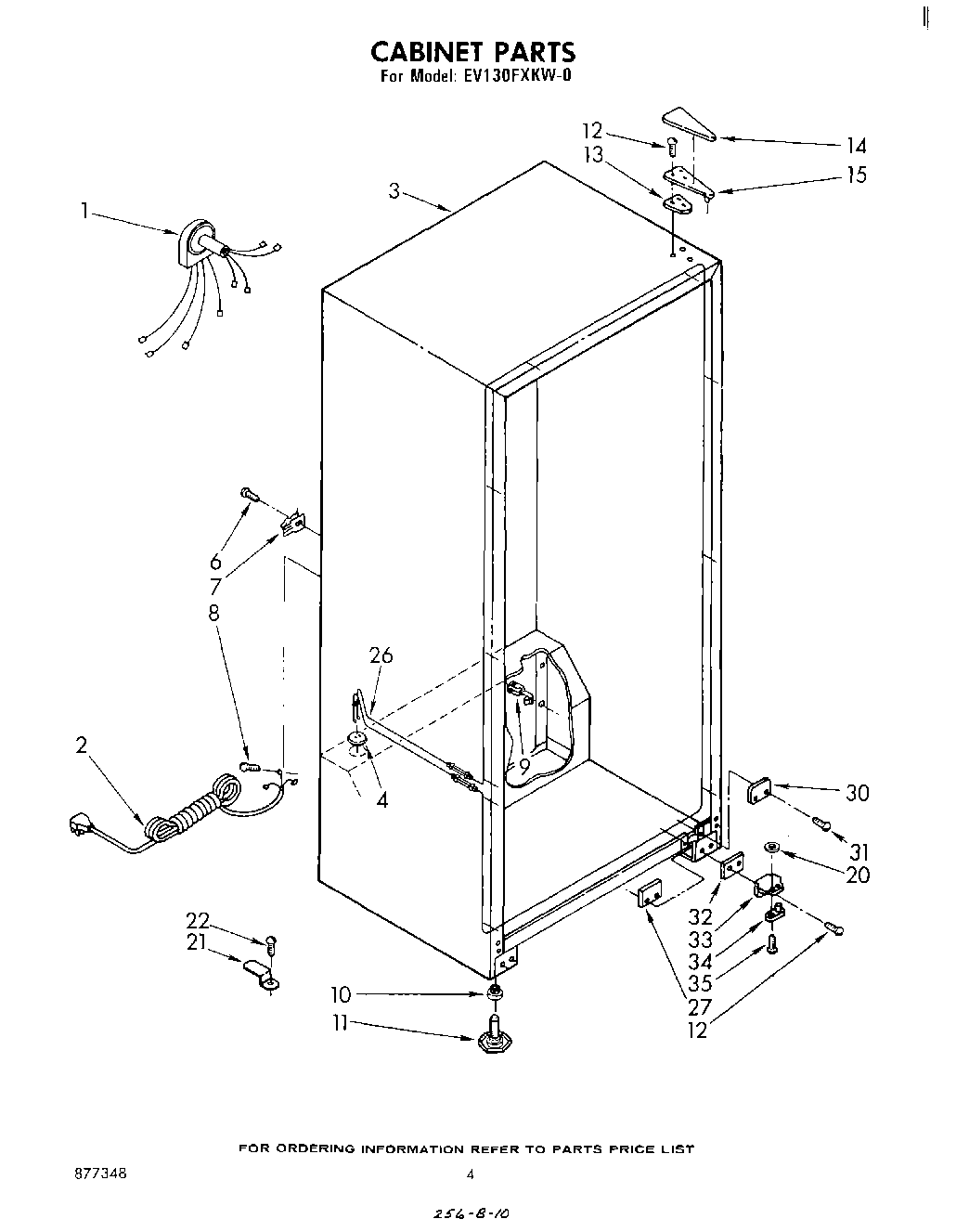

EV130FXKW0 03 – CABINET

Products

PositionProduct
1Cabinet Wiring
2Cord, Service
3Cabinet (Not A Serviceable Part)
4Grommet
6W11624204 Whirlpool Screw
7Clamp
8Screw, 8-32 x 3/8
9Bushing, Strain Relief
10Grommet (4)
11W11117769 Whirlpool Refrigerator Leveler
12Screw (Repair)
12WP999367 Whirlpool Refrigerator Screw
13WPL 836151
141119787 Whirlpool Refrigerator Hinge Cover
15Hinge & Shim (Top)
20WP487802 Whirlpool Refrigerator Washer
21Clip, Cord Plug
22Screw
26Heater, Stile
27Tap Plate, Bottom
30Tube, Rail Cover (White)
31Screw
32Shim, Bottom Hinge
33Butt Hinge (Bottom)
34Hinge Pin, Bottom
35Screw 10-32 x 5/16
