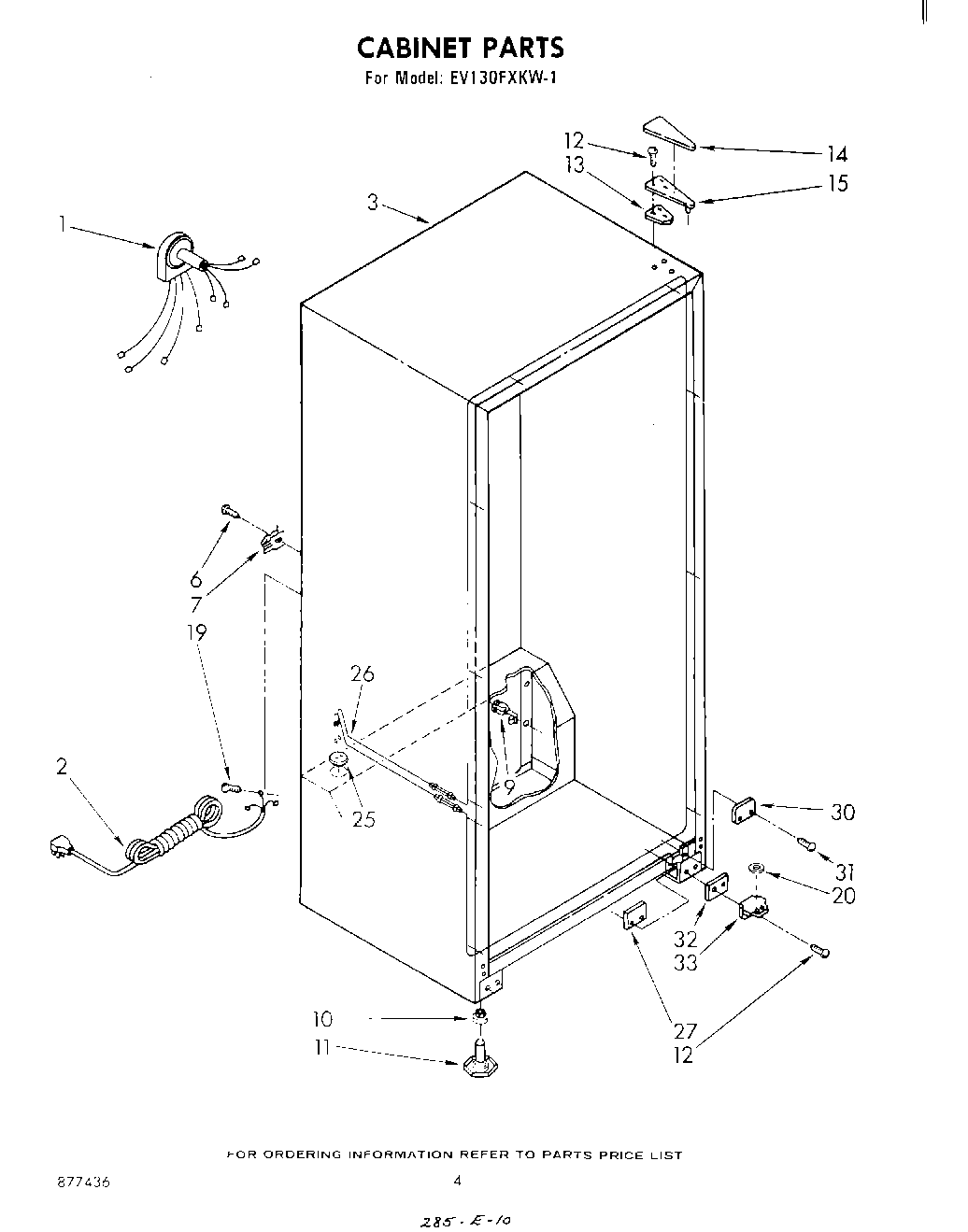

EV130FXKW1 03 – CABINET

Products

Position	Product
1	Cabinet Wiring
2	Cord, Service
3	Cabinet (Not A Serviceable Part)
6	W11624204 Whirlpool Screw
7	Clamp
9	Bushing, Strain Relief
10	Grommet (4)
11	W11117769 Whirlpool Refrigerator Leveler
12	Screw (Repair)
12	WP999367 Whirlpool Refrigerator Screw
13	Shim, Hinge
13	WPL 836151
14	1119787 Whirlpool Refrigerator Hinge Cover
15	Hinge & Shim (Top)
19	Screw, 8-32 x 3/8
20	Repair, 1/16
20	WP487802 Whirlpool Refrigerator Washer
25	Grommet
26	Heater, Stile
27	Tap Plate, Bottom
30	Tube, Rail Cover (Almond)
30	Tube, Rail Cover (White)
31	Screw
32	Shim, Bottom Hinge
33	Hinge, Bottom R.H.
