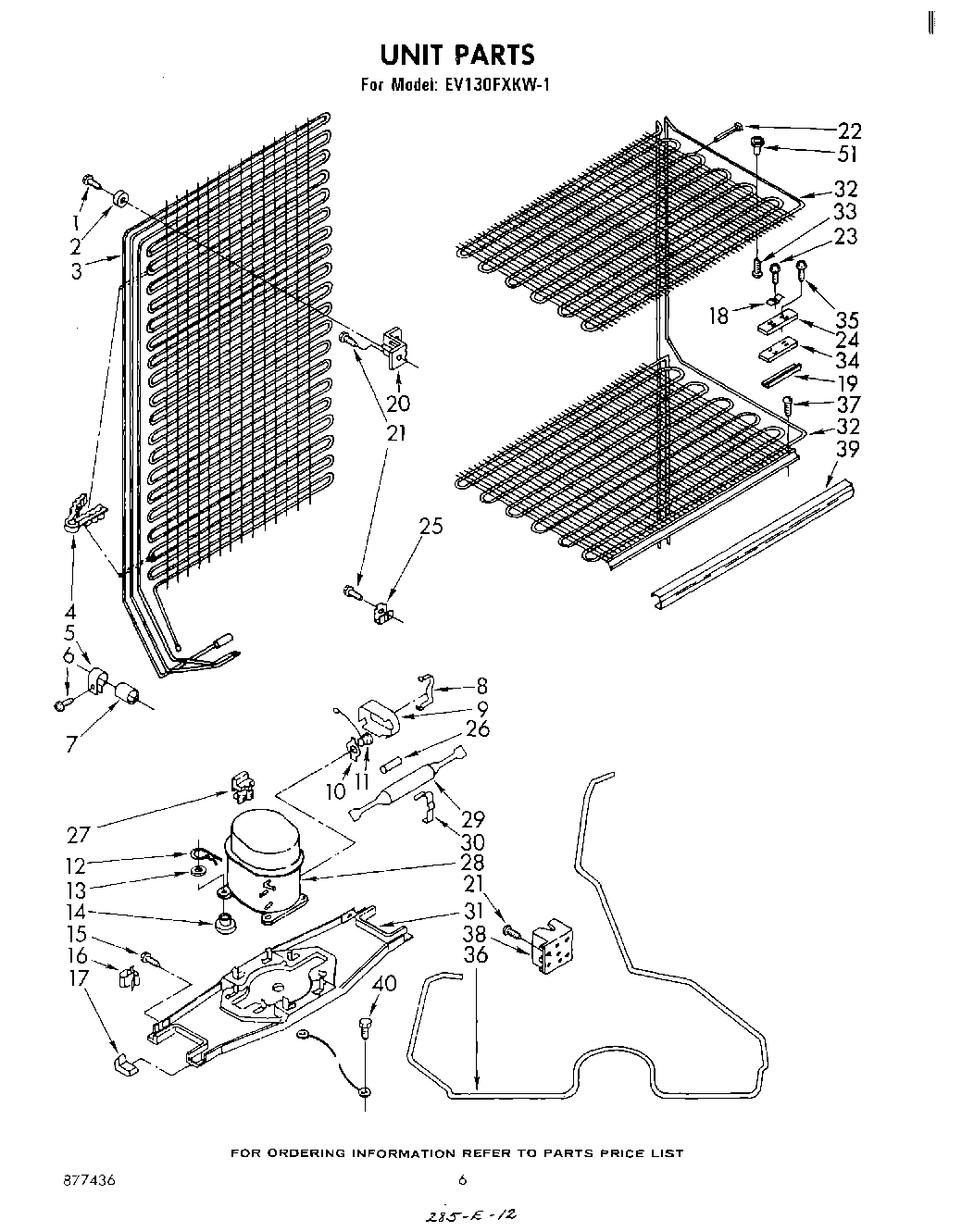

EV130FXKW1 04 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	dampener
8	Cover, Spring
9	Cover, Terminal
10	Spring, Overload
11	Overload (Used W/Original Compressor)
12	clip (4)
13	slotted washer (4)
14	Grommet (4)
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
17	support grommet (2)
18	PLATE
19	Clip
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Strap
23	Screw, 8-32 x 7/16
24	Shim, Thermostat Plate
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
27	Relay (Used On Service Compressor 702215)
27	Relay
28	Compressor (Also Order 482727 Installation Kit & 876527 Mounting Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit, Frame
32	Evaporator Shelves (Shelf, Bottom)
32	Evaporator Shelves (Shelf, 2nd)
32	Evaporator Shelves (Shelf, Top)
32	Evaporator Shelves (Shelf, 3rd)
33	WP488163 Whirlpool Refrigerator Screw
34	Plate, Thermostat
35	Screw, 8-32 x 1/2
36	Heat Exchanger
37	WP308685 Whirlpool Microwave Screw
38	Box, Junction
39	Trim, Shelf Front (3)
40	303776 Whirlpool Dishwasher Screw
51	VALVE, ACCESS (5/8“)
51	978030 Whirlpool Refrigerator Valve
51	WP978025 Whirlpool Refrigerator Valve
51	Spacer (3)
51	Start Kit
51	VALVE, ACCESS (1/2“)
51	978027 Whirlpool Refrigerator Primary Valve
51	978026 Whirlpool Refrigerator Primary Valve
