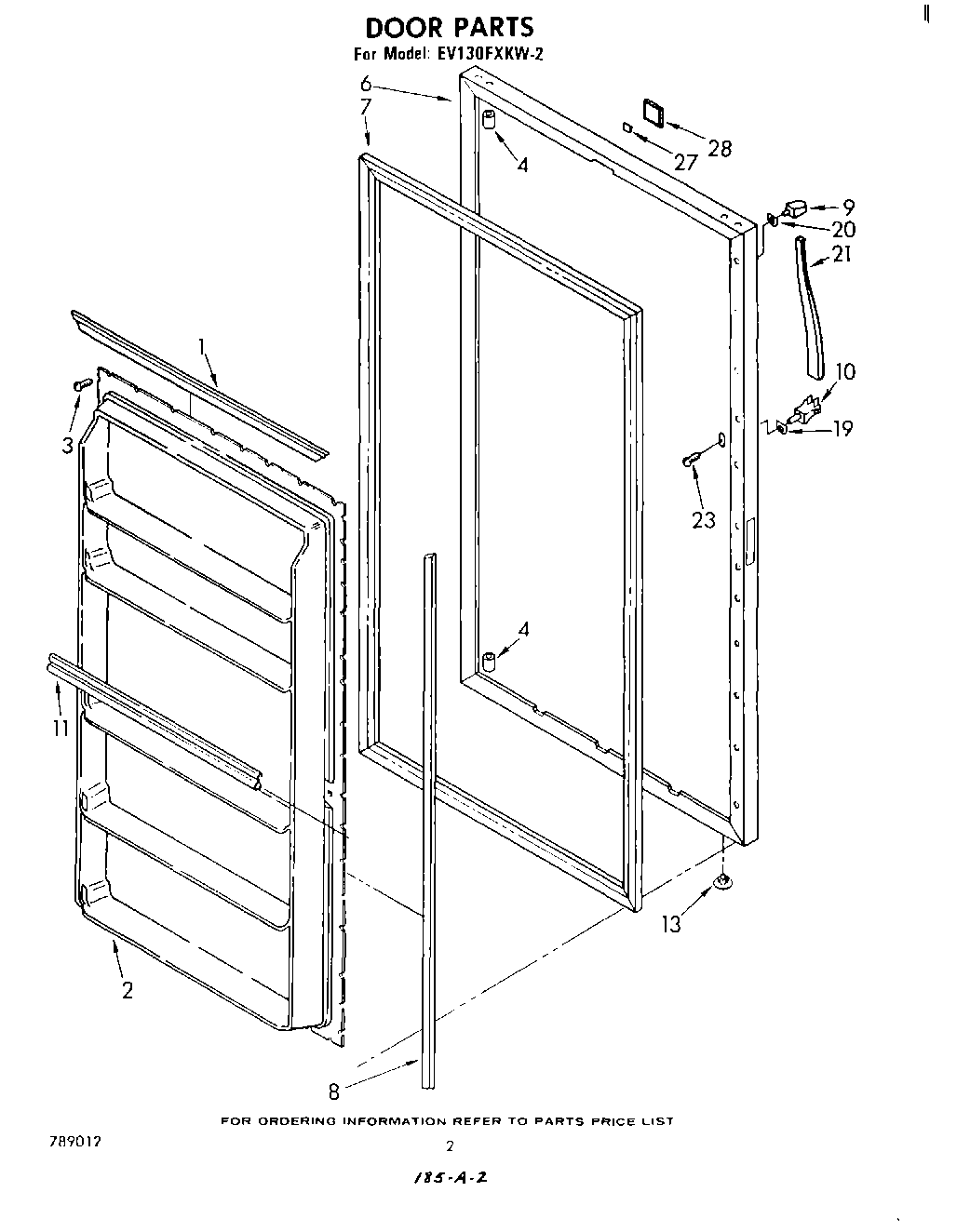

EV130FXKW2 02 – DOOR , LIT/OPTIONALadmin2025-04-26T11:10:37+00:00EV130FXKW2 02 – DOOR , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Leveler (Thinner) (2oz.) |
| 285006 Whirlpool Spray |
| WPL 511881 |
| 350942 Whirlpool Spray Paint |
| 1 | Gasket Retainer, Top & Bottom (2) |
| 2 | Panel, Interior |
| 3 | SCREW |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Cap, Hinge Sleeve (2) |
| 6 | Door, Exterior |
| 7 | Gasket, Magnetic |
| 8 | Retainer, Gasket (Side) (2) |
| 9 | WPL 982948 |
| 10 | WPL 982947 |
| 11 | Trim, Door Shelf (4) |
| 13 | Hole Plug (2) |
| 19 | WPL 941917 |
| 20 | WPL 941918 |
| 21 | WPL 982978 |
| 23 | Screw (2) |
| 27 | Tape Strip |
| 28 | List, Parts |
| 28 | Guide, Use & Care |
| 28 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 28 | Tech Sheet |
| 28 | Nameplate |
| 28 | Book, How To Freeze |
| 28 | Energy Guide |
| 28 | WPL 799351 |
| 28 | 799344 Whirlpool Refrigerator Paint |
| 28 | 511873 Whirlpool Refrigerator Paint |
| 28 | 606755 Whirlpool Refrigerator Bag |
| 28 | 833938 Whirlpool Refrigerator Terminal |
| 28 | 876370 Whirlpool Refrigerator Insulation |
| 28 | WP503695 Whirlpool Refrigerator Sealer |
| 28 | WP505587 Whirlpool Refrigerator Sealer |
| 28 | Enamel, Black (1 Qt. Uncut) |
| 28 | WPL 799832 |
| 28 | WPL 799833 |
| 28 | WPL 876029 |
| 28 | 72032 Whirlpool Touch Up Paint Black |
| 28 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 28 | Transformer (115-230 Volt) |
| 28 | 72017 Whirlpool Appliance Touch-Up Paint White |
