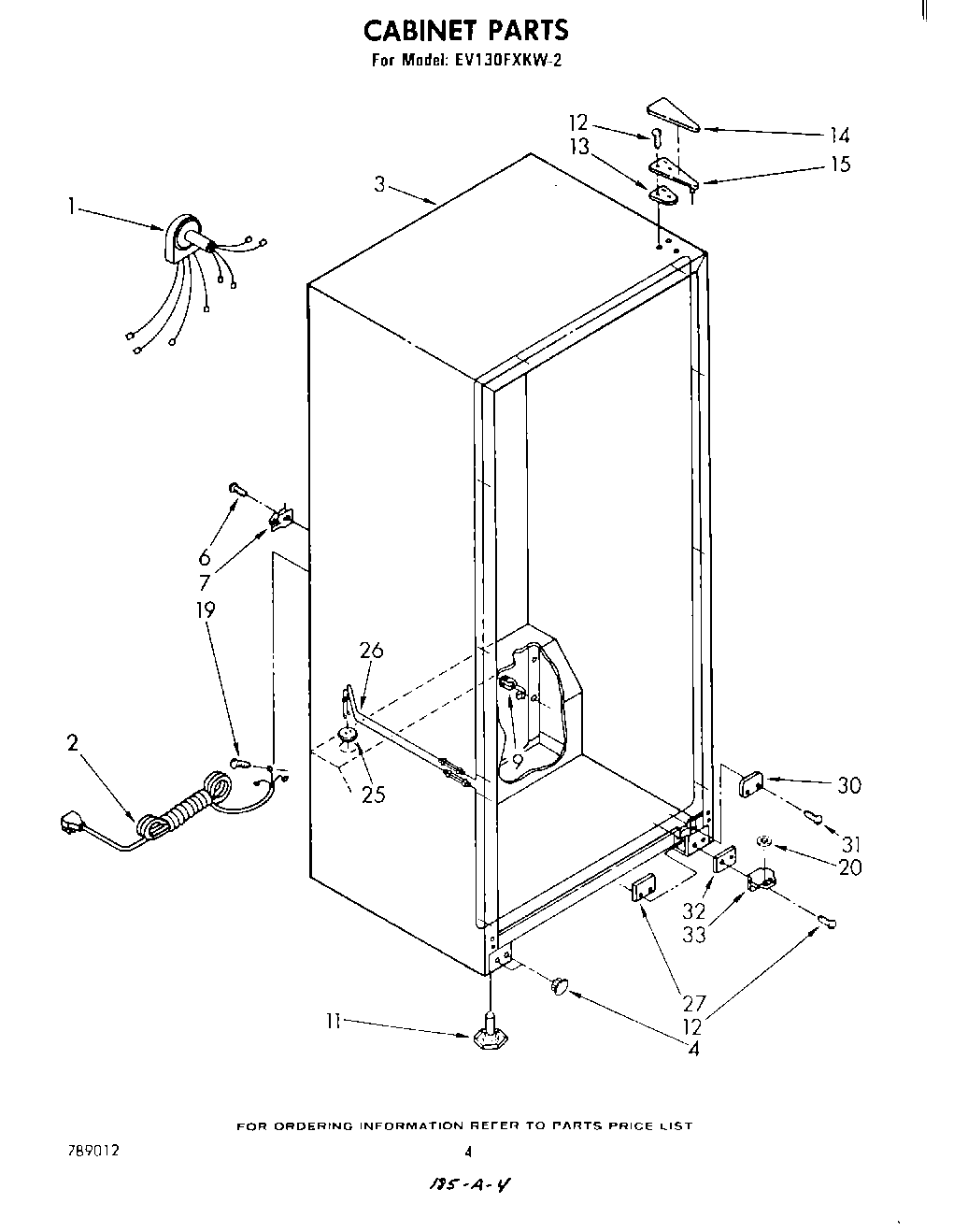

EV130FXKW2 03 – CABINET

Products

PositionProduct
1Cabinet Wiring
2Cord, Service
3Cabinet (Not A Serviceable Part)
4Hole, Plug (2) (Almond)
4WPL 941416
6W11624204 Whirlpool Screw
7Clamp
9Bushing, Strain Relief
11W11117769 Whirlpool Refrigerator Leveler
12WP999367 Whirlpool Refrigerator Screw
12Screw (Repair)
13Shim, Hinge
13WPL 836151
141119787 Whirlpool Refrigerator Hinge Cover
15Hinge & Shim (Top)
19Screw, 8-32 x 3/8
20WP487802 Whirlpool Refrigerator Washer
20Repair, 1/16
25Grommet
26Heater, Stile
27Tap Plate, Bottom
30Tube, Rail Cover (Almond)
30Tube, Rail Cover (White)
31Screw
32Shim, Bottom Hinge
33Hinge, Bottom R.H.
