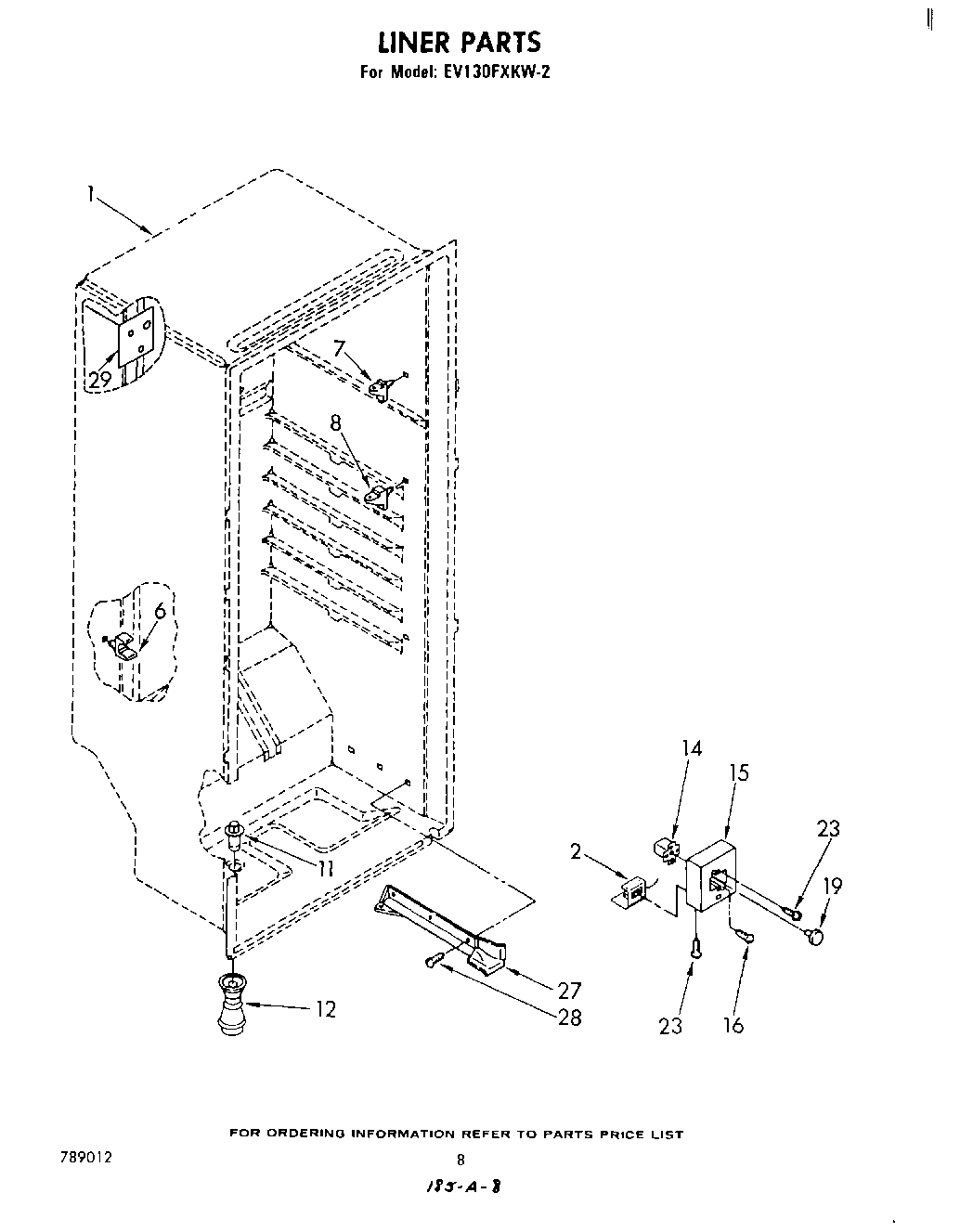

EV130FXKW2 06 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Bracket & Switch Assembly
6Stud, Shelf (6)
7Stud, Shelf (2)
8Stud, Shelf (6)
11Drain, Ferrule Cap
12Fitting, Drain
144389248 Whirlpool Refrigerator Thermostat
15Escutcheon, Thermostat
19Knob, Thermostat
23WP965173 Whirlpool Dishwasher Screw
27Cover Tube, Bottom
28W11693756 Whirlpool Screw Assembly
29Shield, Liner
