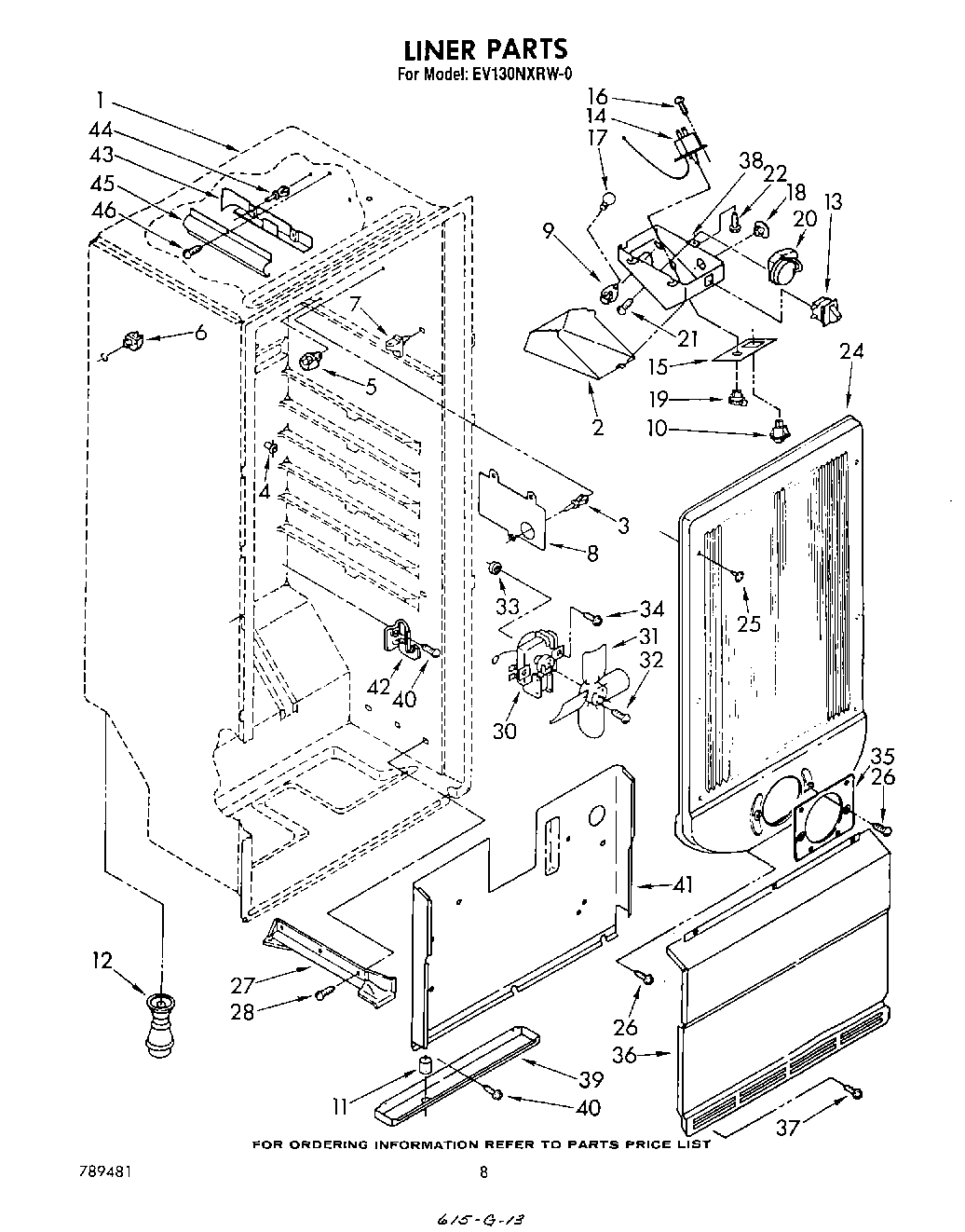

EV130NXRW0 06 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Light, Lens
3	939962 Whirlpool Refrigerator Rivet
4	Spacer
5	Shelf, Stud Saddle (R.S)
6	Shelf, Stud Saddle (L.S)
7	Shelf, Stud
8	Shield, Electrical
9	4387478 Whirlpool Refrigerator Light Socket
10	WP938213 Whirlpool Refrigerator Power Switch
11	Extension, Drain Hole
12	Fitting, Drain
13	W11384469 Whirlpool Door Switch
14	4389248 Whirlpool Refrigerator Thermostat
15	Insert, Control Panel
16	Screw, 8-32 x 3/8
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	940014 Whirlpool Refrigerator Primary Button Plug
19	Control Knob, Thermostat
20	Defrost Timer (10 Hr.)
21	WP487353 Whirlpool Refrigerator Screw
22	WP489069 Whirlpool Compactor Screw
24	Air Duct
25	WP489115 Whirlpool Refrigerator Rivet
27	Cover Tube, Bottom
28	W11693756 Whirlpool Screw Assembly
30	Motor, Fan
31	WP1100938 Whirlpool Refrigerator Fan Blade
32	WP487887 Whirlpool Refrigerator Screw
33	Grommet
34	WP488488 Whirlpool Refrigerator Screw
35	Fan, Mounting Cover
36	Evaporator, Cover
37	WP488729 Whirlpool Refrigerator Door Screw
38	Control Box
39	Pan, Drain
40	W11624204 Whirlpool Screw
41	Shield, Heat
42	Evaporator Support (2)
43	Wire, Cover (Rear)
44	Rivet, Plastic (2)
45	Wire, Cover (Front)
46	Screw, 8-15 x 1/2 (4)
