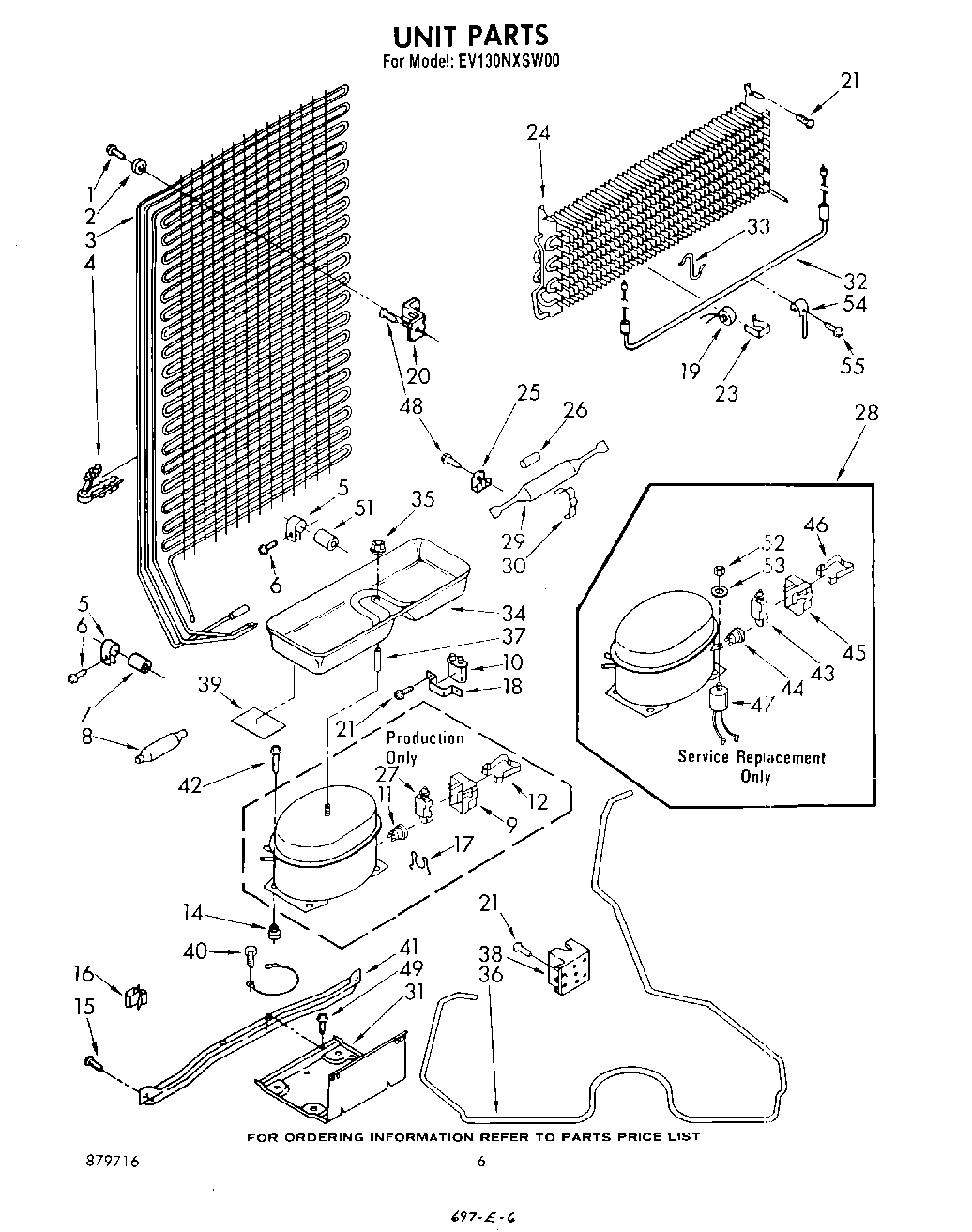

EV130NXSW00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
8	Muffler
9	Cover
10	Running Capacitor
11	Overload (Used W/Original Compressor)
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
17	Overload Spring
18	WP43449 Whirlpool Bracket
19	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
23	Clamp
24	Evaporator
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
27	WP2262181 Whirlpool Refrigerator Start Relay
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Heater, Defrost
33	Support, Heater
34	Tray, Evaporator
35	285002 Whirlpool Nut
36	Heat Exchanger
37	Spacer
38	Junction Box
39	Pad, Sound
40	303776 Whirlpool Dishwasher Screw
41	Unit Mounting Rail
43	Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	WP489069 Whirlpool Compactor Screw
49	WP965173 Whirlpool Dishwasher Screw
51	Dampener
52	Nut
53	Washer
54	Heat Prove
55	SCREW
55	978026 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	WP978025 Whirlpool Refrigerator Valve
55	VALVE, ACCESS (1/2“)
55	876764 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (5/8“)
55	Start Kit
