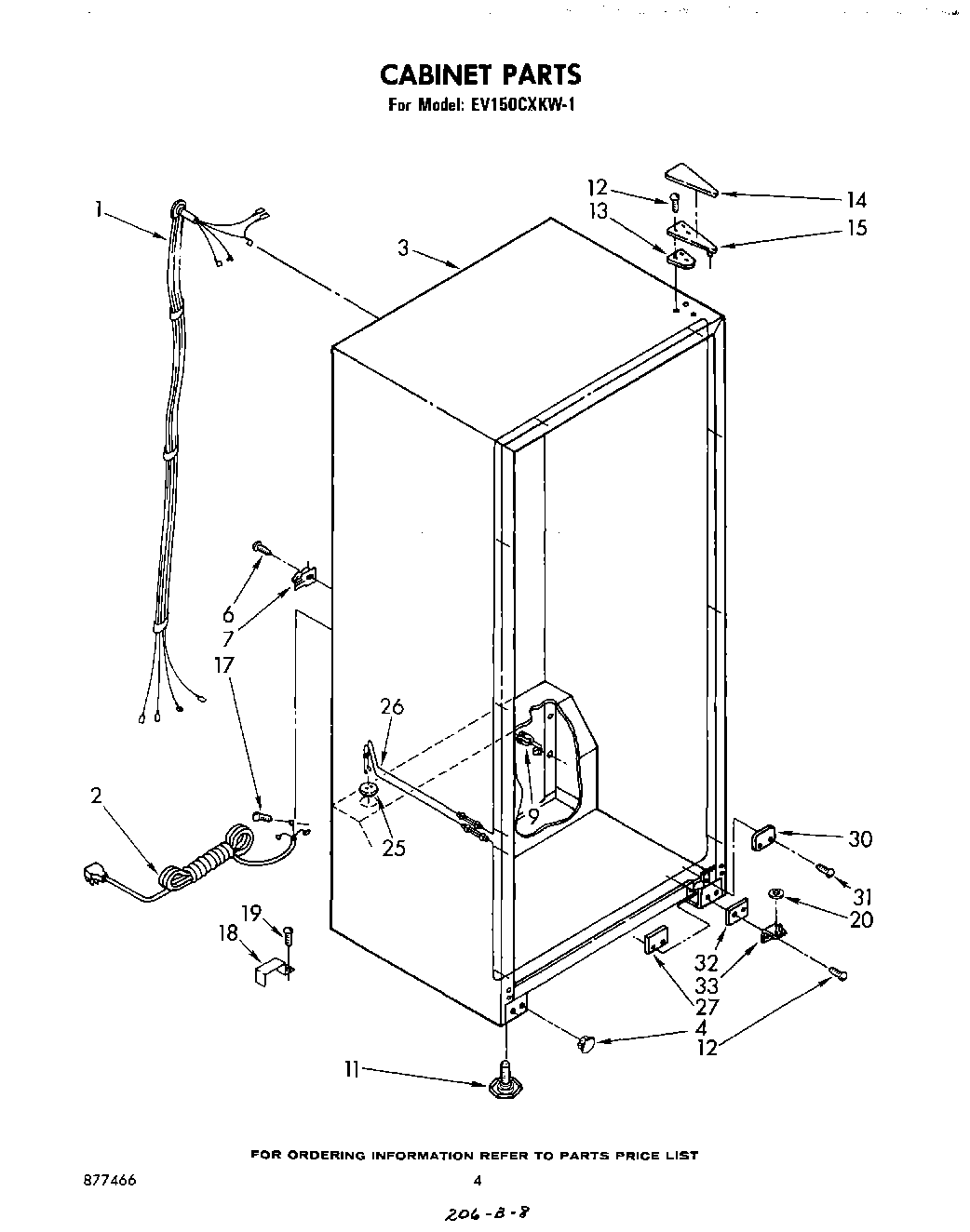

EV150CXKW1 03 – CABINET

EV150CXKW1 03 – CABINET

Written by

in

EV150CXKW1 03 – CABINET

Products

PositionProduct
1Cabinet Wiring
2Cord, Service
3Cabinet (Not A Serviceable Part)
4WPL 941416
4Hole, Plug (2) (Almond)
6W11624204 Whirlpool Screw
7Clamp
9Bushing, Strain Relief
11W11117769 Whirlpool Refrigerator Leveler
12Screw (Repair)
12WP999367 Whirlpool Refrigerator Screw
13WPL 836151
141119787 Whirlpool Refrigerator Hinge Cover
15Hinge & Shim (Top)
17Screw, 8-32 x 3/8
18Clip, Cord Plug
19Screw
20WP487576 Whirlpool Washer
20WP487802 Whirlpool Refrigerator Washer
25Grommet
26Heater, Stile
27Tap Plate, Bottom
30Tube, Rail Cover (Almond)
30Tube, Rail Cover (White)
31Screw
32Shim, Bottom Hinge
33Hinge, Bottom R.H.
