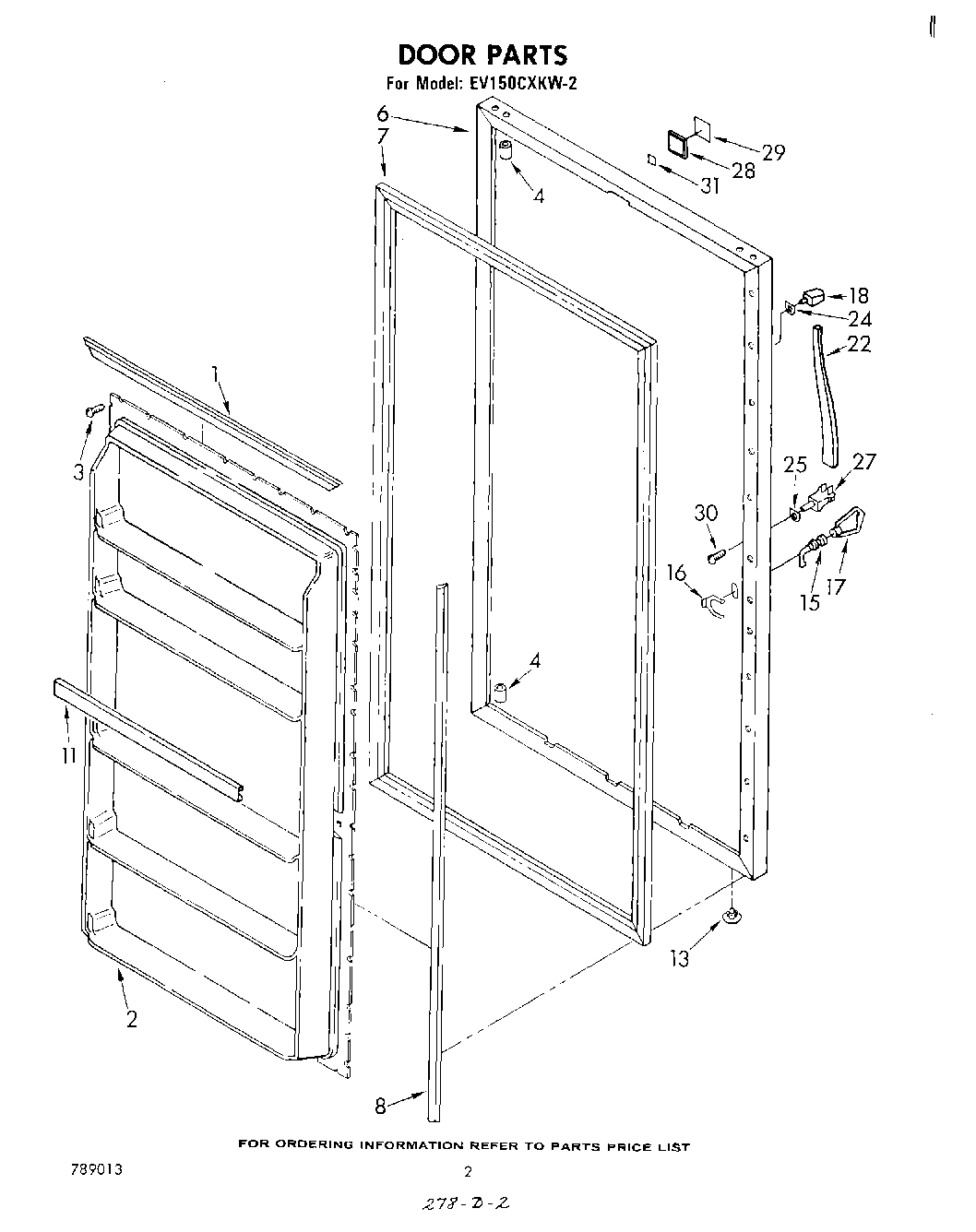

EV150CXKW2 02 – DOOR , LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Leveler (Thinner) (2oz.)
	WPL 511881
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	350956 Whirlpool Spray Assembly
1	Gasket Retainer, Top & Bottom (2)
2	Panel, Interior
3	WP489069 Whirlpool Compactor Screw
3	SCREW
4	Cap, Hinge Sleeve (2)
6	Door, Exterior (Almond)
6	Door, Exterior (White (Also Order Item 5))
7	2188436A Whirlpool Refrigerator Door Gasket
8	Retainer, Gasket (Side) (2)
11	Trim, Door Shelf (4)
13	Hole Plug (2)
15	Lock
16	Clip, Spring
17	WP842177 Whirlpool Refrigerator Door Key
18	WPL 982948
22	WPL 982978
24	WPL 941918
25	WPL 941917
27	WPL 982947
28	Nameplate
29	Insert
30	Screw (2)
31	799344 Whirlpool Refrigerator Paint
31	Almond (Uncut)
31	72017 Whirlpool Appliance Touch-Up Paint White
31	212643 Whirlpool Refrigerator Permagum Sealer
31	Tech Sheet
31	WPL 942608
31	511873 Whirlpool Refrigerator Paint
31	WPL 946714
31	WP72107 Whirlpool Touchup
31	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
31	72032 Whirlpool Touch Up Paint Black
31	WPL 876029
31	WPL 799833
31	WPL 799832
31	Enamel, Black (1 Qt. Uncut)
31	WP505587 Whirlpool Refrigerator Sealer
31	876370 Whirlpool Refrigerator Insulation
31	Tape Strip
31	Transformer (115-230 Volt)
31	WPL 799351
31	833938 Whirlpool Refrigerator Terminal
31	606755 Whirlpool Refrigerator Bag
31	Book, How To Freeze
31	List, Parts
