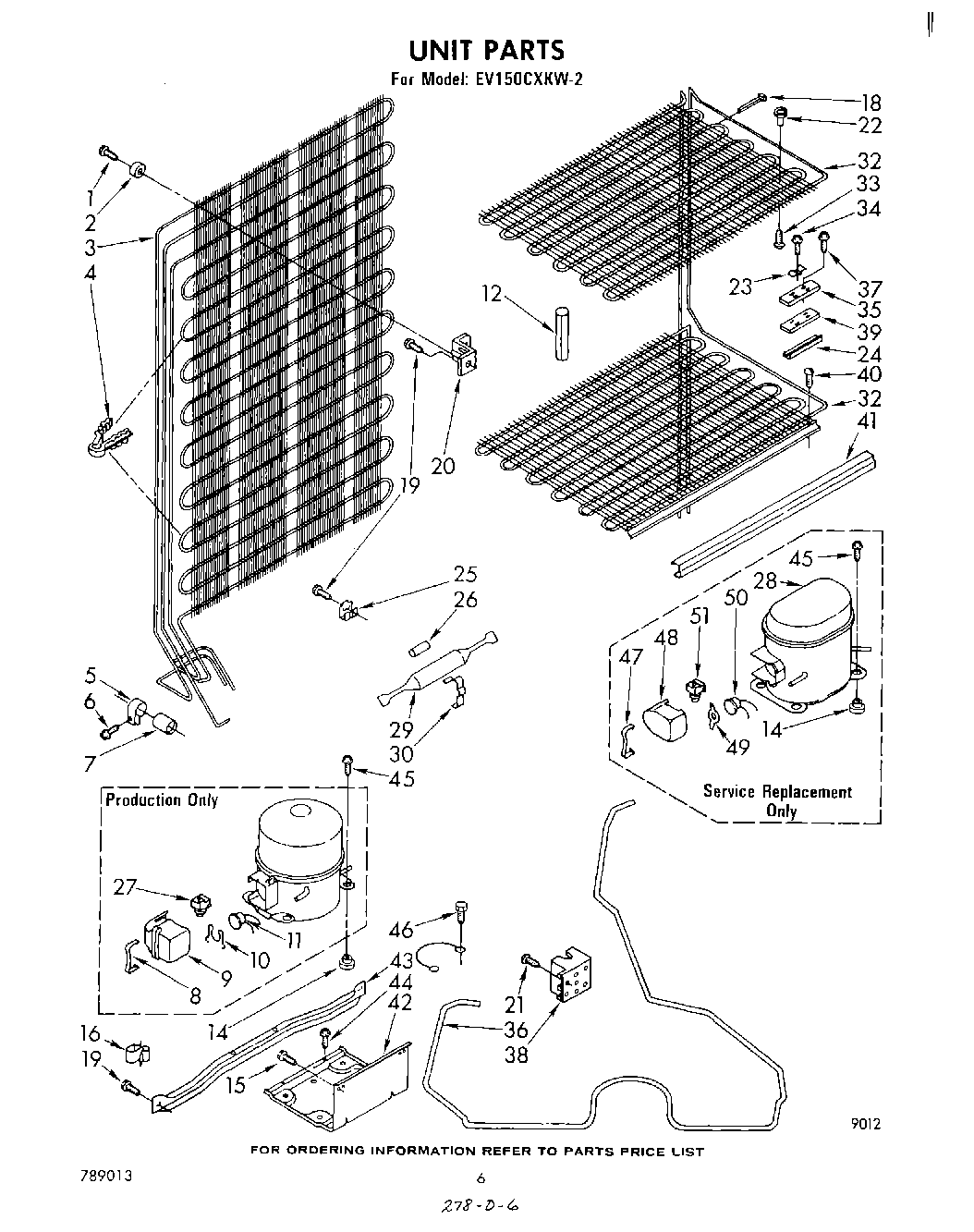

EV150CXKW2 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	dampener
8	Spring, Case
9	Case, Relay
10	Overload Spring
11	Overload (Used W/Original Compressor)
12	Cover, Connecting Lines (11.5 Inches)
12	Cover, Connecting Lines (10 Inches)
12	Cover, Connecting Lines (15 Inches)
14	Grommet (4)
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	Strap
19	WP489069 Whirlpool Compactor Screw
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Spacer (3)
23	PLATE
24	Clip
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Relay (Used W/Original Compressor)
28	W10439652 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
32	Evaporator Shelves (Shelf, Bottom)
32	Evaporator Assembly (Shelf, Top)
32	Evaporator Shelves (Shelf, 2nd)
32	Evaporator Shelves (Shelf, 3rd)
33	WP488163 Whirlpool Refrigerator Screw
34	Screw, 8-32 x 7/16
35	Shim, Thermostat Plate
36	Heat Exchanger
37	Screw, 8-32 x 1/2
38	Box, Junction
39	Plate, Thermostat
40	WP308685 Whirlpool Microwave Screw
40	Screw (Repair)
41	Trim, Shelf Front (3)
42	Unit Mounting Plate
43	Unit Mounting Rail
44	WP965173 Whirlpool Dishwasher Screw
45	Screw, 1/4-28 x 1“ (4)
46	303776 Whirlpool Dishwasher Screw
47	Cover, Spring
48	Cover, Terminal
49	Spring, Overload
50	Overload
51	Relay
51	978027 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (5/8“)
51	978026 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (1/2“)
51	978030 Whirlpool Refrigerator Valve
51	WP978025 Whirlpool Refrigerator Valve
