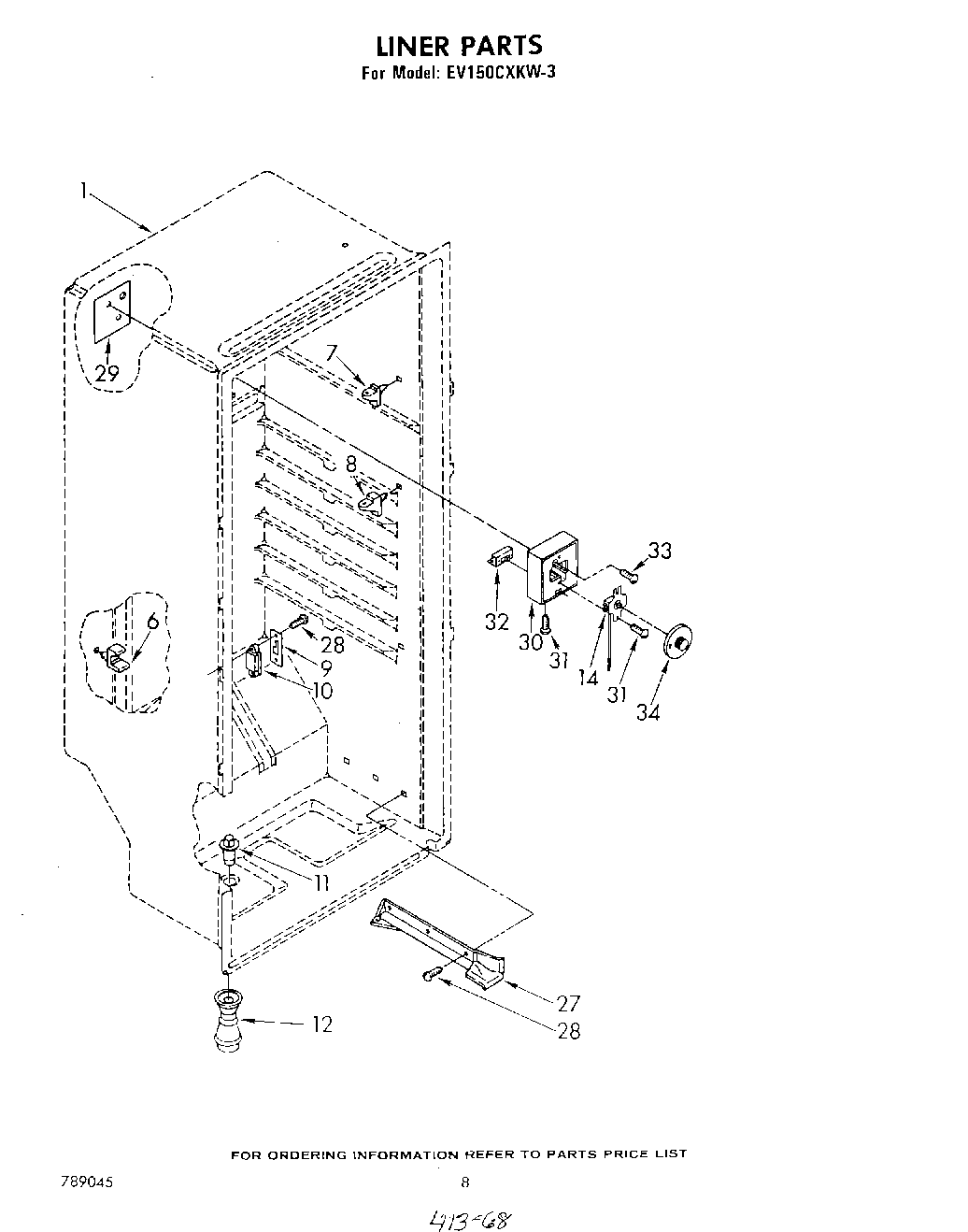

EV150CXKW3 06 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
6	Stud, Shelf (6)
7	Stud, Shelf (2)
8	Stud, Shelf (6)
9	Strike, Lock
10	Lock Strike, Back-Up
11	Drain, Ferrule Cap
12	Fitting, Drain
14	4389248 Whirlpool Refrigerator Thermostat
27	Cover Tube, Bottom
28	W11693756 Whirlpool Screw Assembly
29	Shield, Liner
30	Escutcheon, Thermostat
31	WP965173 Whirlpool Dishwasher Screw
32	Bracket & Switch Assembly
34	Knob, Thermostat
