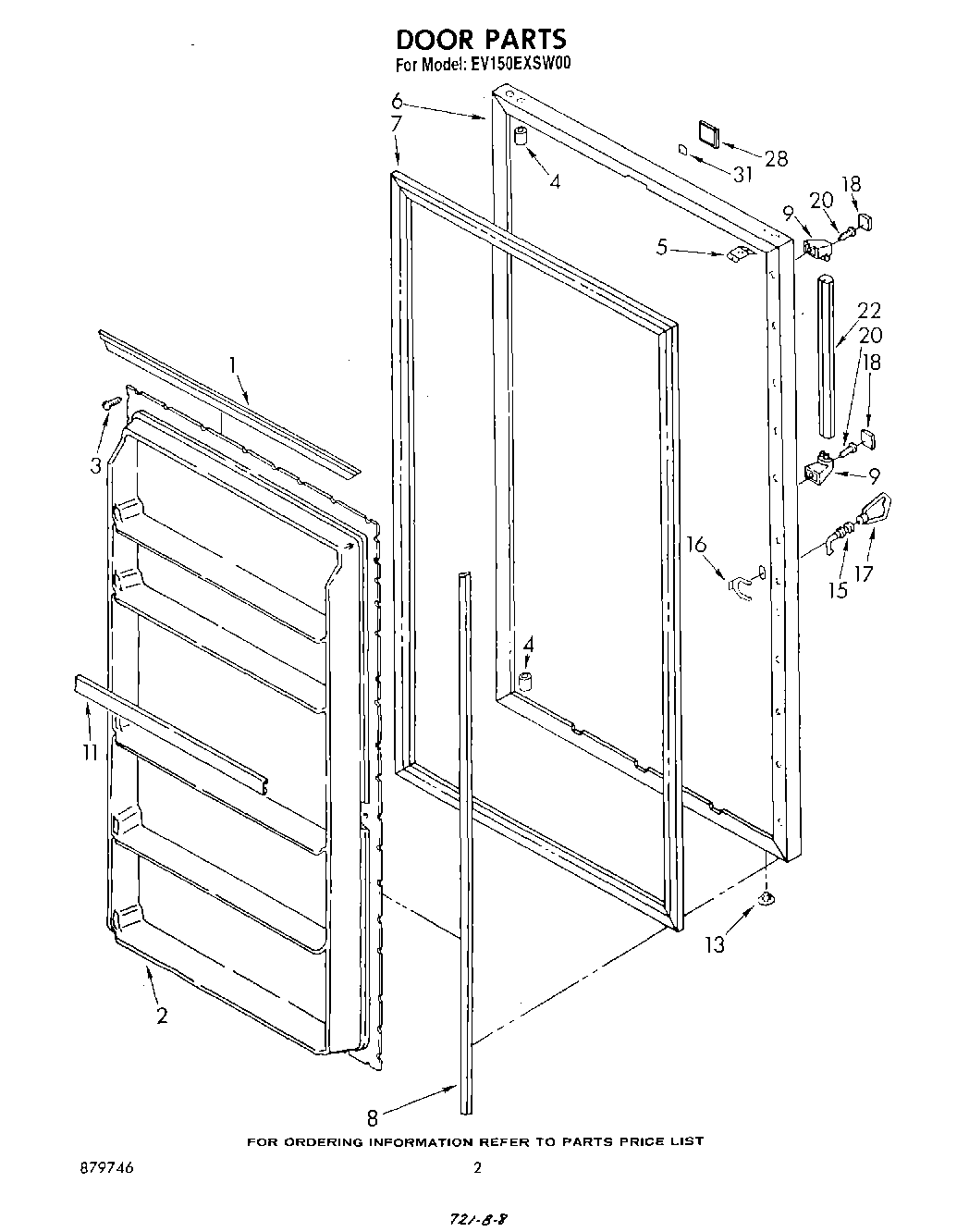

EV150EXSW00 02 – DOOR, LIT/OPTIONALadmin2025-04-26T11:11:17+00:00EV150EXSW00 02 – DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| WPL LIT946562 |
| 285006 Whirlpool Spray |
| WPL LIT1104158 |
| Guide, Use & Care |
| List, Parts |
| 350942 Whirlpool Spray Paint |
| Leveler (Thinner) (2oz.) |
| WPL LIT656493 |
| 1 | Gasket Retainer, Top & Bottom (2) |
| 2 | Panel, Interior |
| 3 | SCREW |
| 3 | WP489069 Whirlpool Compactor Screw |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | WP939101 Whirlpool Refrigerator Plate |
| 6 | Door, Exterior (White) |
| 7 | 2188436A Whirlpool Refrigerator Door Gasket |
| 8 | Retainer, Gasket (Side) (2) |
| 9 | End, Handle |
| 11 | Trim, Door Shelf (4) |
| 13 | Hole Plug (2) |
| 15 | Lock |
| 16 | Clip, Spring |
| 17 | WP842177 Whirlpool Refrigerator Door Key |
| 18 | End Cover, Door Handle (2) |
| 20 | Screw, 8-15 x 1-5/8 |
| 22 | Handle, Center |
| 28 | Escutcheon, Nameplate |
| 31 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 31 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 31 | 799344 Whirlpool Refrigerator Paint |
| 31 | 606755 Whirlpool Refrigerator Bag |
| 31 | 833938 Whirlpool Refrigerator Terminal |
| 31 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 31 | 876370 Whirlpool Refrigerator Insulation |
| 31 | WP505587 Whirlpool Refrigerator Sealer |
| 31 | Enamel, Black (1 Qt. Uncut) |
| 31 | 72032 Whirlpool Touch Up Paint Black |
| 31 | WPL 876029 |
| 31 | Tape Strip |
| 31 | Transformer (115-230 Volt) |
| 31 | WPL 799833 |
