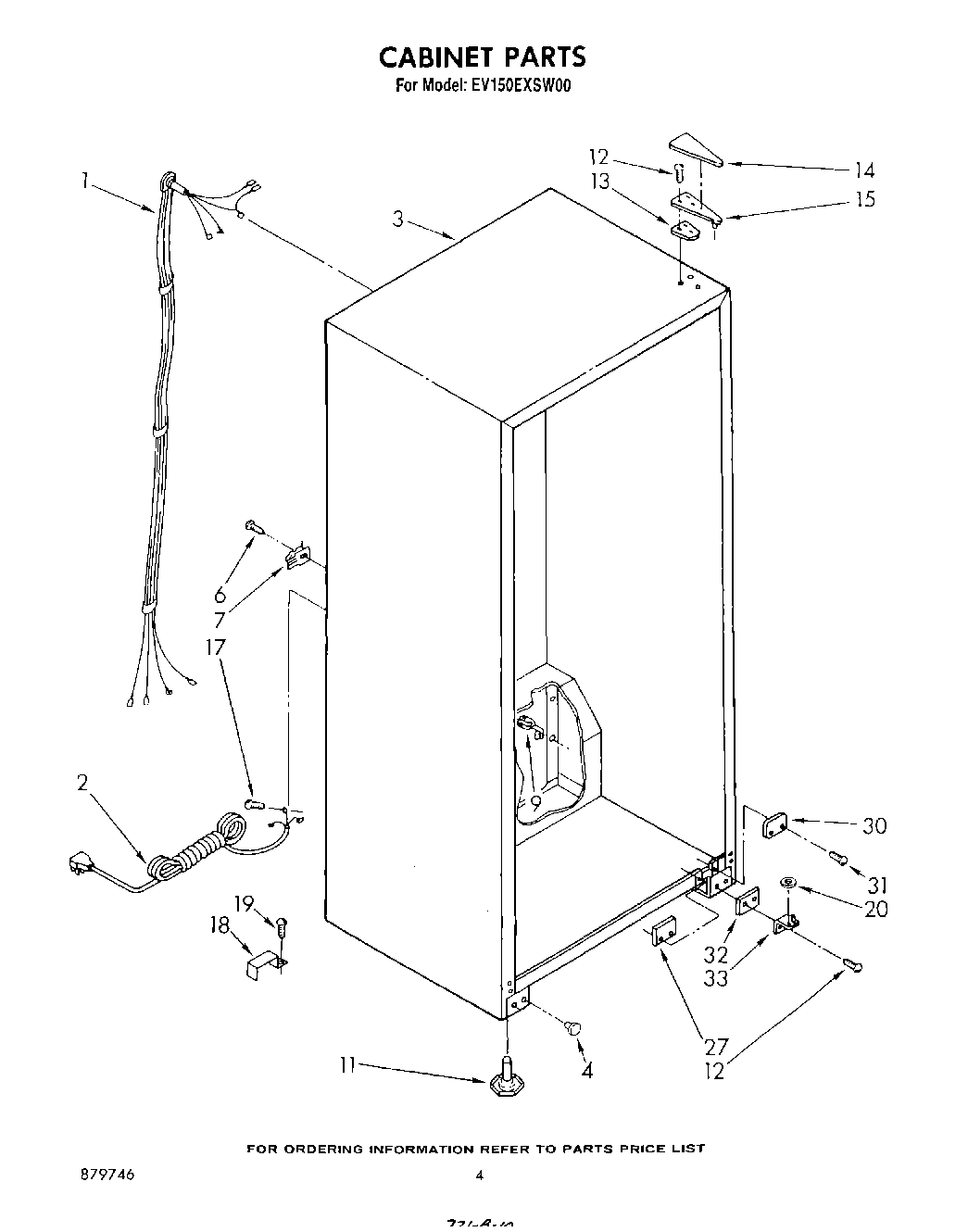

EV150EXSW00 03 – CABINET

Products

PositionProduct
1Cabinet Wiring
2Cord, Service
3Cabinet (Not A Serviceable Part)
4WPL 941416
6W11624204 Whirlpool Screw
7Clamp
9Bushing, Strain Relief
11W11117769 Whirlpool Refrigerator Leveler
12Screw (Repair)
12WP999367 Whirlpool Refrigerator Screw
13WPL 836151
141119787 Whirlpool Refrigerator Hinge Cover
15Hinge & Shim (Top)
17Screw, 8-32 x 3/8
18Clip, Cord Plug
19Screw
20WP487576 Whirlpool Washer
20WP487802 Whirlpool Refrigerator Washer
27Tap Plate, Bottom
30Tube, Rail Cover (White)
31Screw
32Shim, Bottom Hinge
33Hinge, Bottom R.H.
