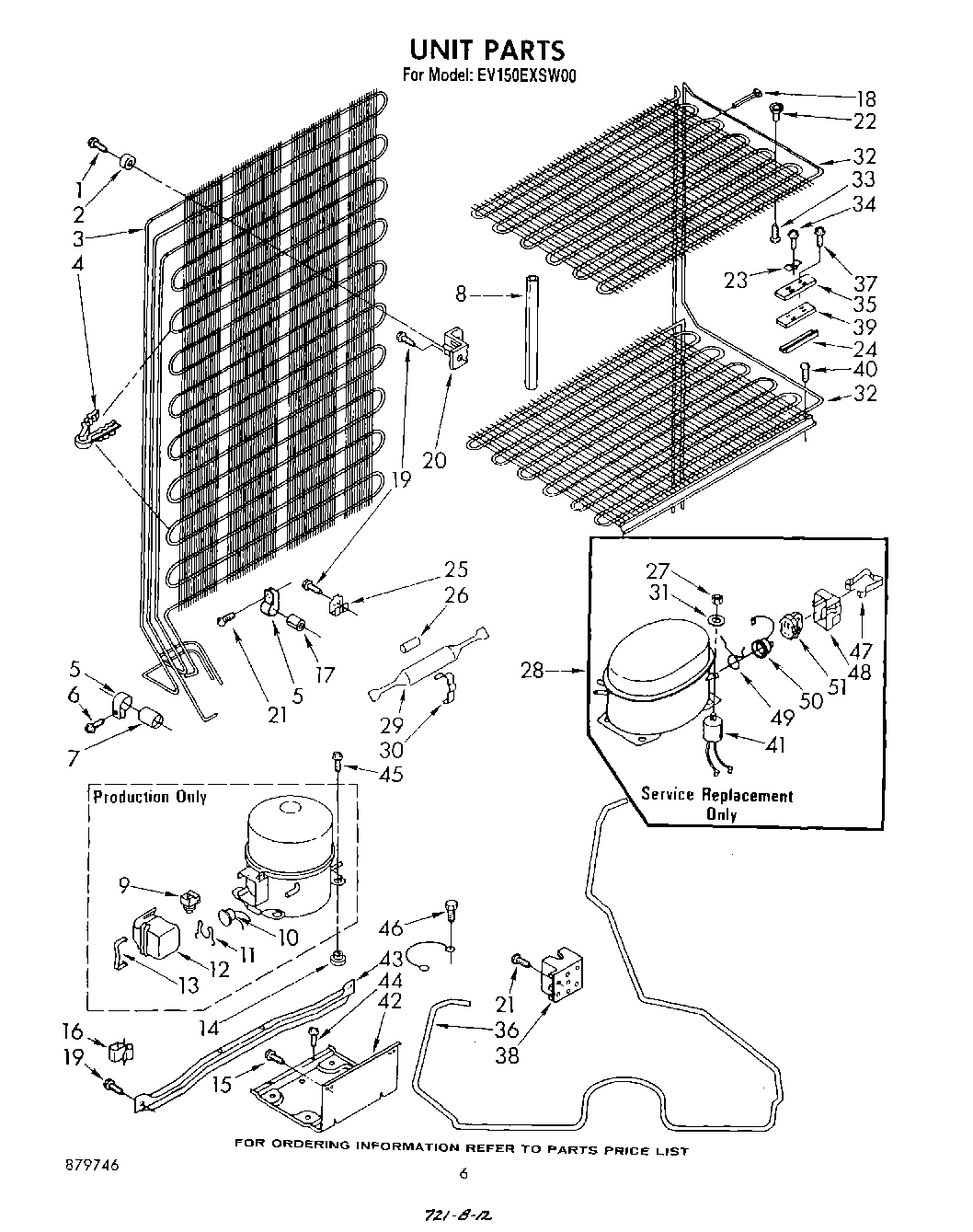

EV150EXSW00 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener
8	Cover, Connecting Lines (11.5 Inches)
8	Cover, Connecting Lines (15 Inches)
8	Cover, Connecting Lines (10 Inches)
9	Relay (Used W/Original Compressor)
10	Overload (Used W/Original Compressor)
11	Overload Spring
12	Case, Relay
13	Spring, Case
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
17	Dampener
18	Strap
19	WP489069 Whirlpool Compactor Screw
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Spacer (3)
23	PLATE
24	Clip
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Nut
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Washer
32	Evaporator Assembly (Shelf, Top)
32	Evaporator Assembly (Shelf, Bottom)
32	Evaporator Assembly (Shelf, 2nd)
32	Evaporator Assembly (Shelf, 3rd)
33	WP488163 Whirlpool Refrigerator Screw
34	Screw, 8-32 x 7/16
35	Shim, Thermostat Plate
36	Heat Exchanger
37	Screw, 8-32 x 1/2
38	Box, Junction
39	Plate, Thermostat
40	WP308685 Whirlpool Microwave Screw
40	Screw (Repair)
41	Capacitor (Used On Service Compressor)
42	Unit Mounting Plate
43	Unit Mounting Rail
44	WP965173 Whirlpool Dishwasher Screw
46	303776 Whirlpool Dishwasher Screw
47	Strap
48	Cover
49	Overload Spring
50	Overload
51	978026 Whirlpool Refrigerator Primary Valve
51	WP2262181 Whirlpool Refrigerator Start Relay
51	VALVE, ACCESS (1/2“)
51	WP978025 Whirlpool Refrigerator Valve
51	978030 Whirlpool Refrigerator Valve
51	978027 Whirlpool Refrigerator Primary Valve
51	VALVE, ACCESS (5/8“)
