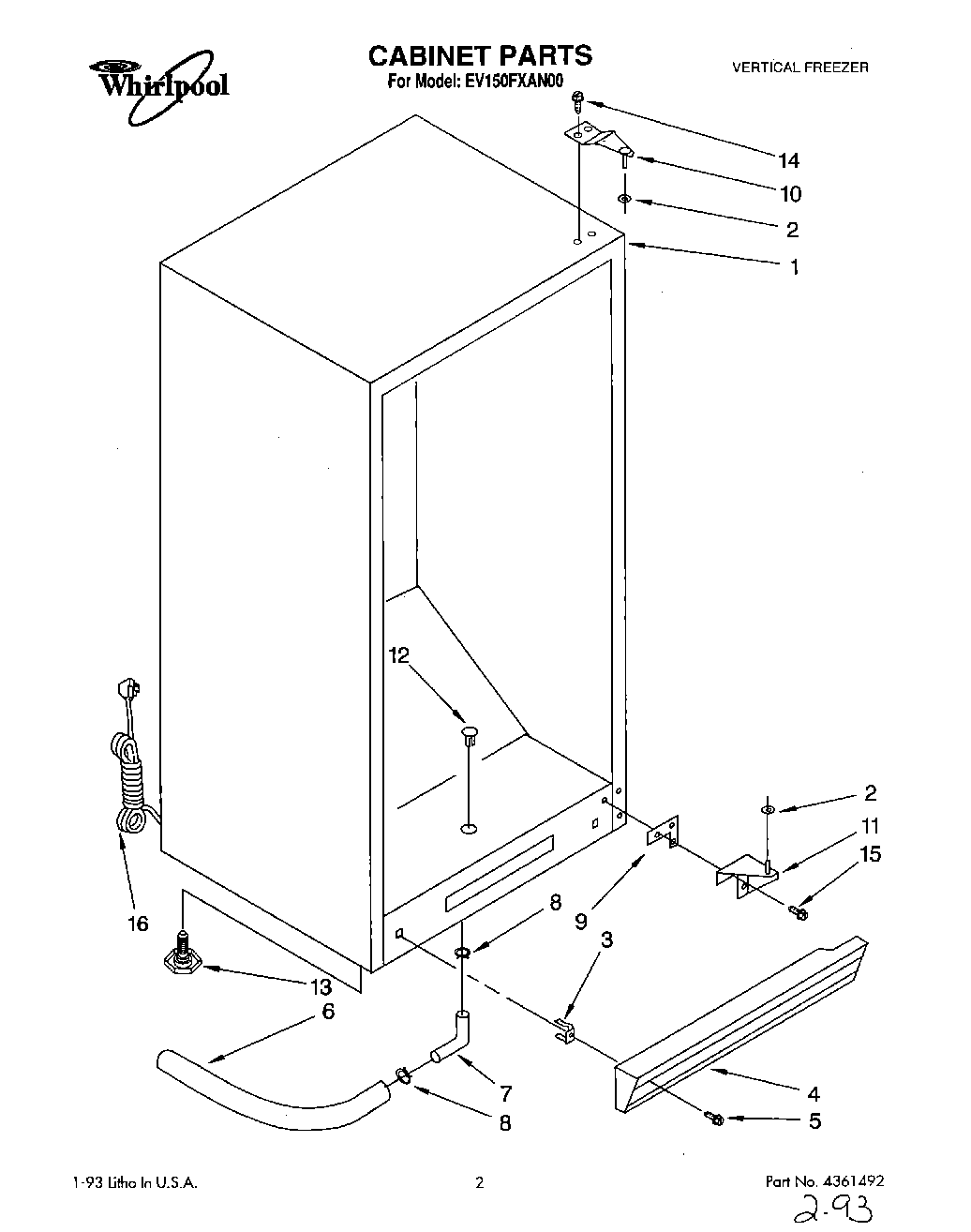

EV150FXAN00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2W10851331 Whirlpool Refrigerator Washer
31-80247-101 Whirlpool Refrigerator Clip
4Grille
5WP489478 Whirlpool Refrigerator Screw
6Drain Hose
7Tube, Drain
8Hose Clamp
9Shim, Bottom
10Top, Hinge
11Bottom, Hinge
12Drain Plug
13W11117769 Whirlpool Refrigerator Leveler
14WP8204624 Whirlpool Bolt
15Lower, Hinge Screw
16Power Cord
