EV150FXAN00 03 – DOOR

EV150FXAN00 03 – DOOR

Written by

in

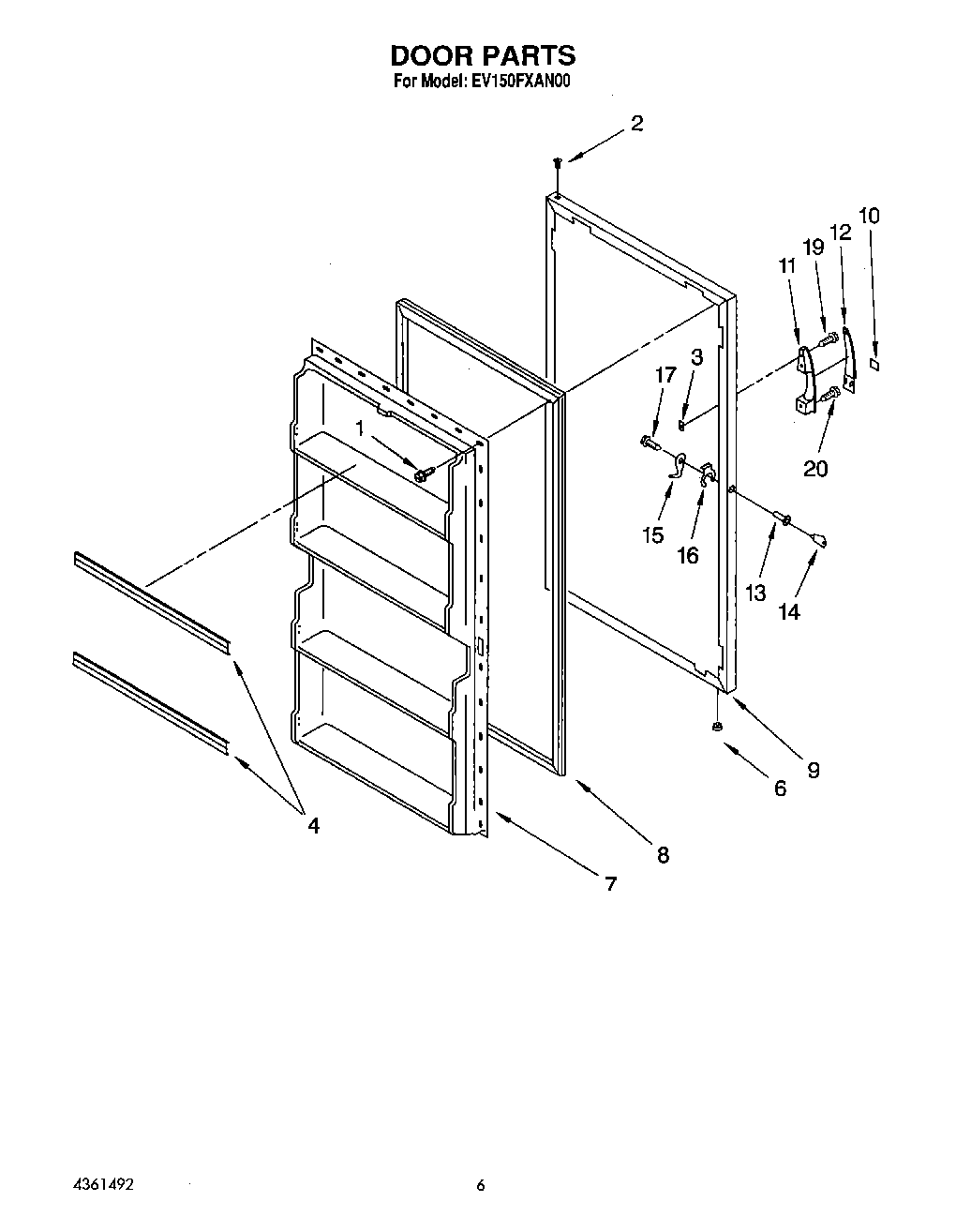

EV150FXAN00 03 – DOOR

Products

PositionProduct
1WP489478 Whirlpool Refrigerator Screw
24390731 Whirlpool Refrigerator Hinge Bushing
3Anchor, Screw
4Door Shelf Trim (4)
63-24898-007 Whirlpool Refrigerator Vent Plug
7WP4390870 Whirlpool Refrigerator Panel
8WP4357099 Whirlpool Refrigerator Door Gasket
9Exterior Door (Almond) (Includes Insulation)
10Nameplate
11Handle
12Handle, Insert (Almond)
134357145 Whirlpool Refrigerator Door Lock
14WP4356840 Whirlpool Refrigerator Door Key
153-35284-001 Whirlpool Refrigerator Door Lock
16Spring Clip
19Screw, 8-18 x 1-5/8 St. Stl. (4)
20Screw (Repair)
