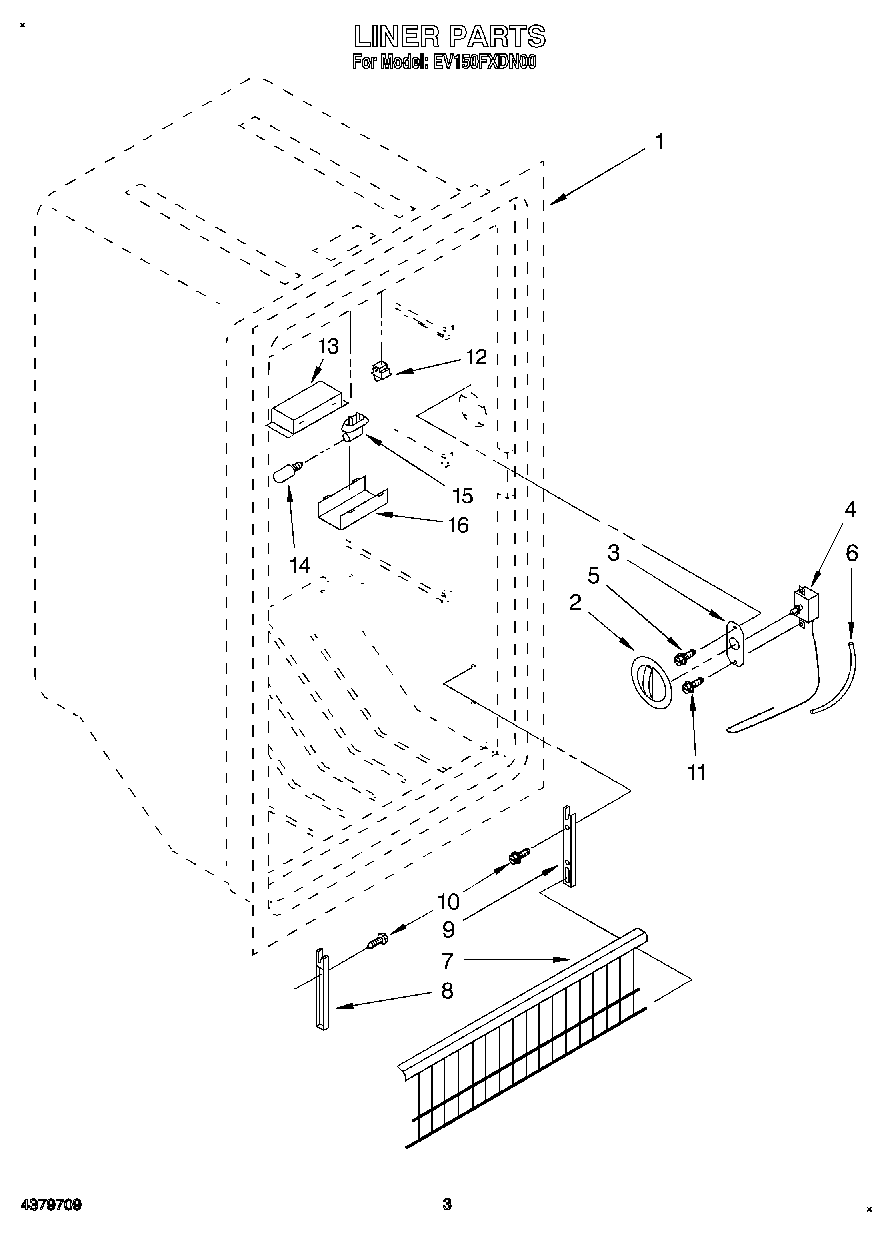

EV150FXDN00 02 – LINER, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Wiring Diagram
1	Liner (Not A Serviceable Part)
2	Control Knob
3	1-81154 Whirlpool Plate
4	Thermostat
5	WPW10068250 Whirlpool Dishwasher Screw
6	WP2196003 Whirlpool Refrigerator Bar Riser
7	Gate
8	Support, Fence, (L.H.)
9	4-80576-202 Whirlpool Refrigerator Gate Support
10	Screw
11	SCREW
12	W11384469 Whirlpool Door Switch
13	Bracket, Light
14	W10873798 Whirlpool Refrigerator Light Bulb
15	Socket, Light
16	Light Shield
16	WP72107 Whirlpool Touchup
16	212643 Whirlpool Refrigerator Permagum Sealer
16	Enamel (Almond) (1 Qt. Uncut)
16	TAPE, VINYL (3/4 X 108``)
16	WP505587 Whirlpool Refrigerator Sealer
16	WP503695 Whirlpool Refrigerator Sealer
16	876370 Whirlpool Refrigerator Insulation
16	350956 Whirlpool Spray Assembly
