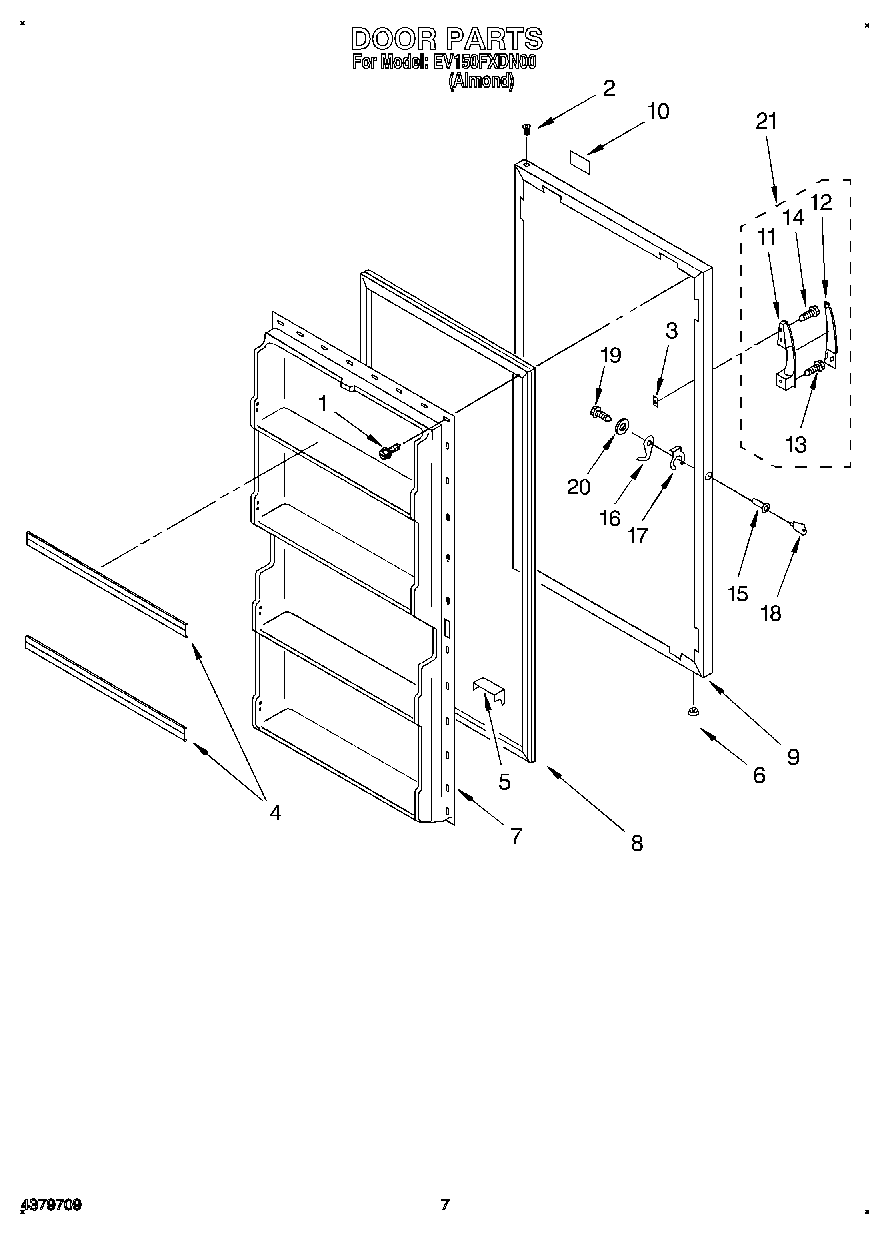

EV150FXDN00 04 – DOOR

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	Anchor, Screw
4	Door Shelf Trim (4)
5	Foam Block
6	3-24898-007 Whirlpool Refrigerator Vent Plug
7	WP4390870 Whirlpool Refrigerator Panel
8	WP4357099 Whirlpool Refrigerator Door Gasket
9	Exterior Door
10	Nameplate
11	Handle
12	Handle, Insert (Almond)
13	WP3-24004-109 Whirlpool Refrigerator Screw
14	Screw
15	4357145 Whirlpool Refrigerator Door Lock
16	3-35284-001 Whirlpool Refrigerator Door Lock
17	Spring Clip
18	WP4356840 Whirlpool Refrigerator Door Key
20	Washer
21	Handle Assembly (Includes Items 11, 12, 13 & 14)
