EV150FXGW01 04 – DOOR

EV150FXGW01 04 – DOOR

Written by

in

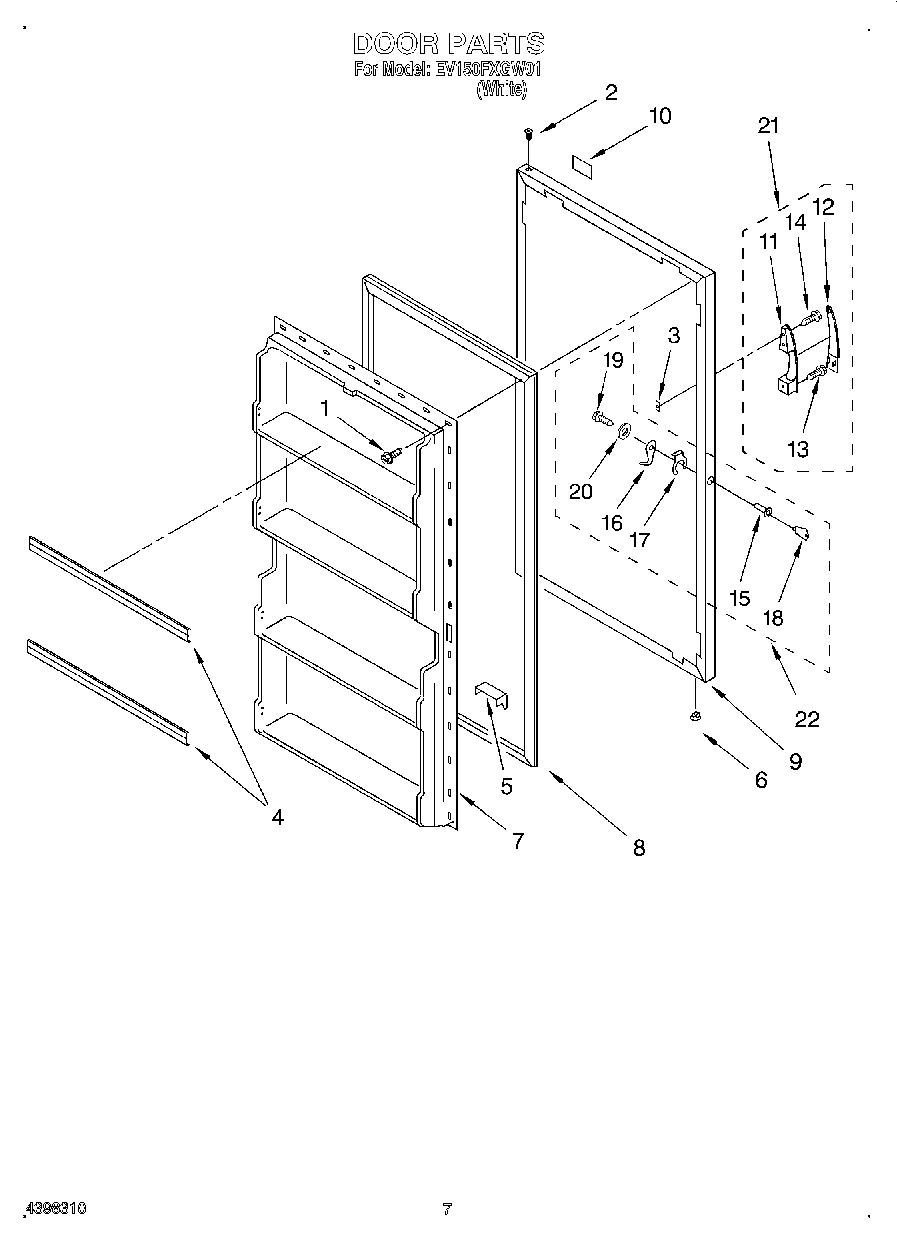

EV150FXGW01 04 – DOOR

Products

PositionProduct
14390598 Whirlpool Refrigerator Screw
24390731 Whirlpool Refrigerator Hinge Bushing
3Anchor, Screw
4Door Shelf Trim (4)
5Foam Block
63-24898-007 Whirlpool Refrigerator Vent Plug
7WP4390870 Whirlpool Refrigerator Panel
8WP4357099 Whirlpool Refrigerator Door Gasket
9Door, Exterior
10Nameplate
11Handle
12Insert, Handle (White)
13Screw
14WP3-24004-109 Whirlpool Refrigerator Screw
154357145 Whirlpool Refrigerator Door Lock
16Lock, Bolt
17Spring Clip
18WP4356840 Whirlpool Refrigerator Door Key
19WP489478 Whirlpool Refrigerator Screw
20Washer
21Handle Assembly (Includes Items 11, 12, 13 & 14)
