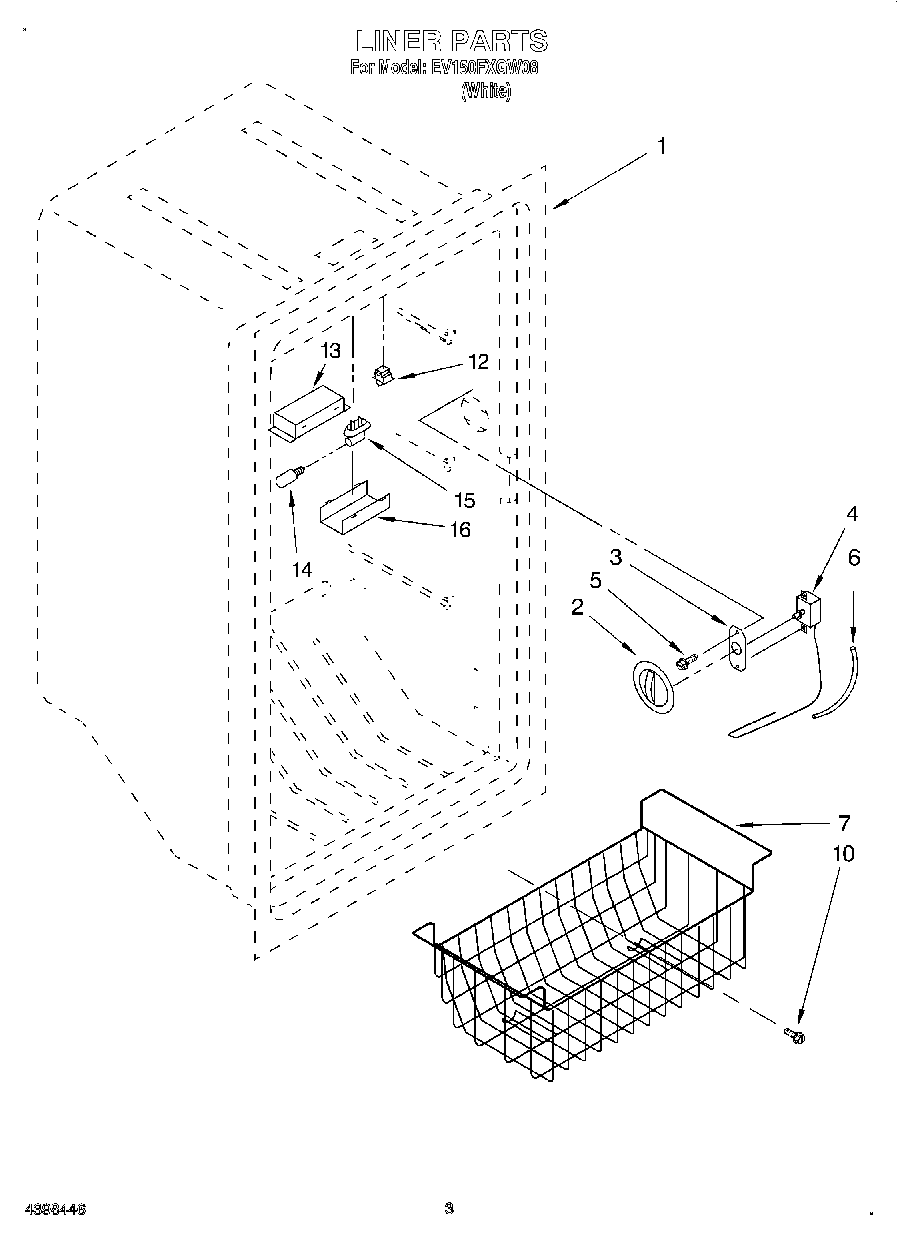

EV150FXGW08 02 – LINER

EV150FXGW08 02 – LINER

Written by

in

EV150FXGW08 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5WPW10068250 Whirlpool Dishwasher Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Basket
10Screw
12W11384469 Whirlpool Door Switch
13Bracket, Light
14W10873798 Whirlpool Refrigerator Light Bulb
15Socket, Light
16TAPE, VINYL (3/4 X 108“)
16WP72107 Whirlpool Touchup
16Light Shield
16212643 Whirlpool Refrigerator Permagum Sealer
16876370 Whirlpool Refrigerator Insulation
16Enamel (Almond) (1 Qt. Uncut)
16WP503695 Whirlpool Refrigerator Sealer
16WP505587 Whirlpool Refrigerator Sealer
16350956 Whirlpool Spray Assembly
