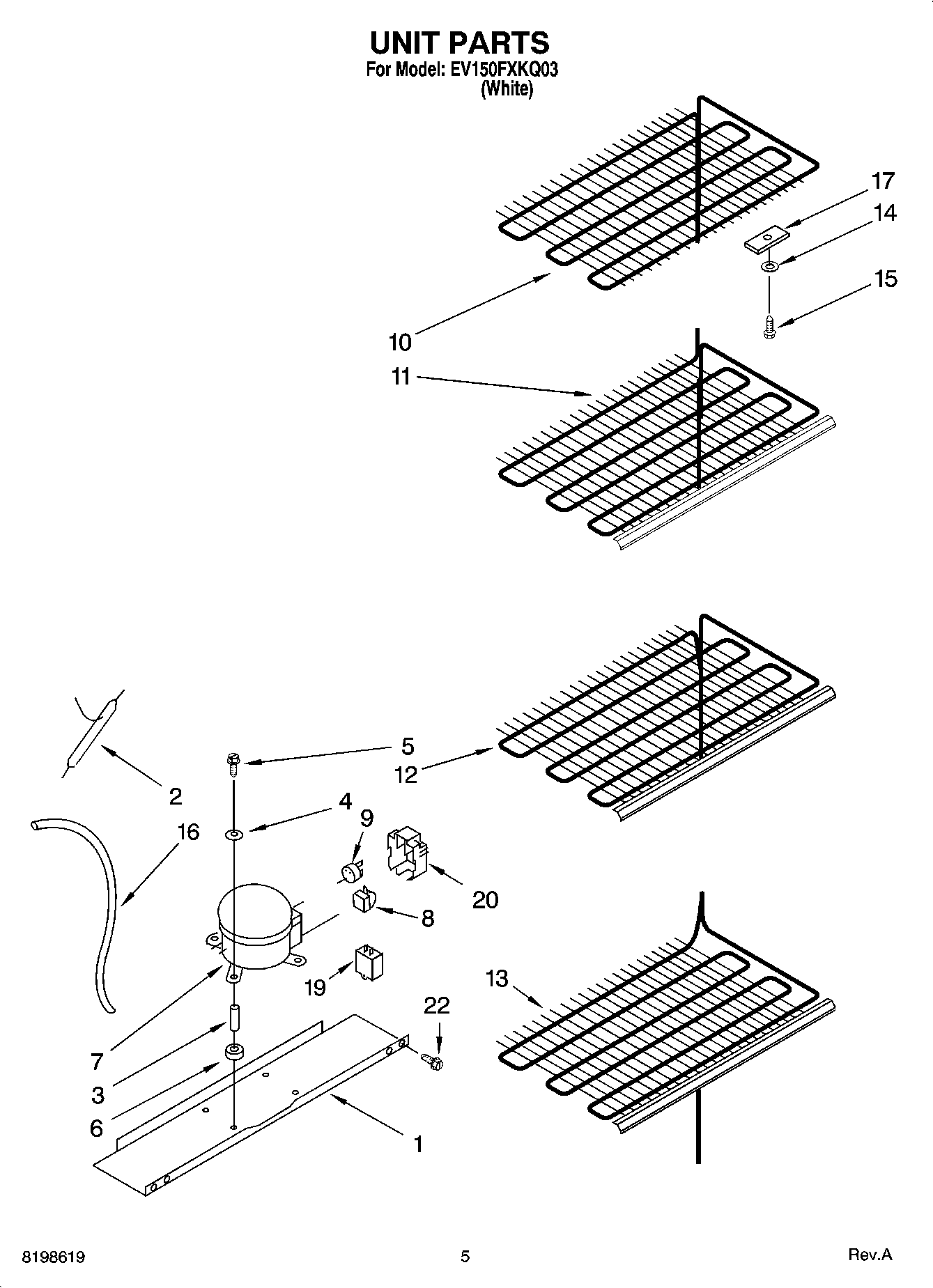

EV150FXKQ03 03 – UNIT PARTS

Products

PositionProduct
1Compressor Mounting Pan
2W10843121 Whirlpool Refrigerator Tube
34356846 Whirlpool Refrigerator Sleeve
4Washer
5Screw, Compressor Mounting
6Grommet, Mounting Compressor
7W10309989 Whirlpool Refrigerator Compressor
8Relay
94390880 Whirlpool Refrigerator Overload
10Evaporator Top
11Evaporator Shelf
12Evaporator Shelf
13Evaporator Shelf
14W10903204 Whirlpool Refrigerator Washer
15WP3-24004-109 Whirlpool Refrigerator Screw
16Heat Exchanger
171-80308-101 Whirlpool Refrigerator Bulb Clamp
19Capacitor
20Cover
22REFRIGERANT CHARGE 6.0 oz. (R-134A)
22WP3-24838-048 Whirlpool Refrigerator Screw
