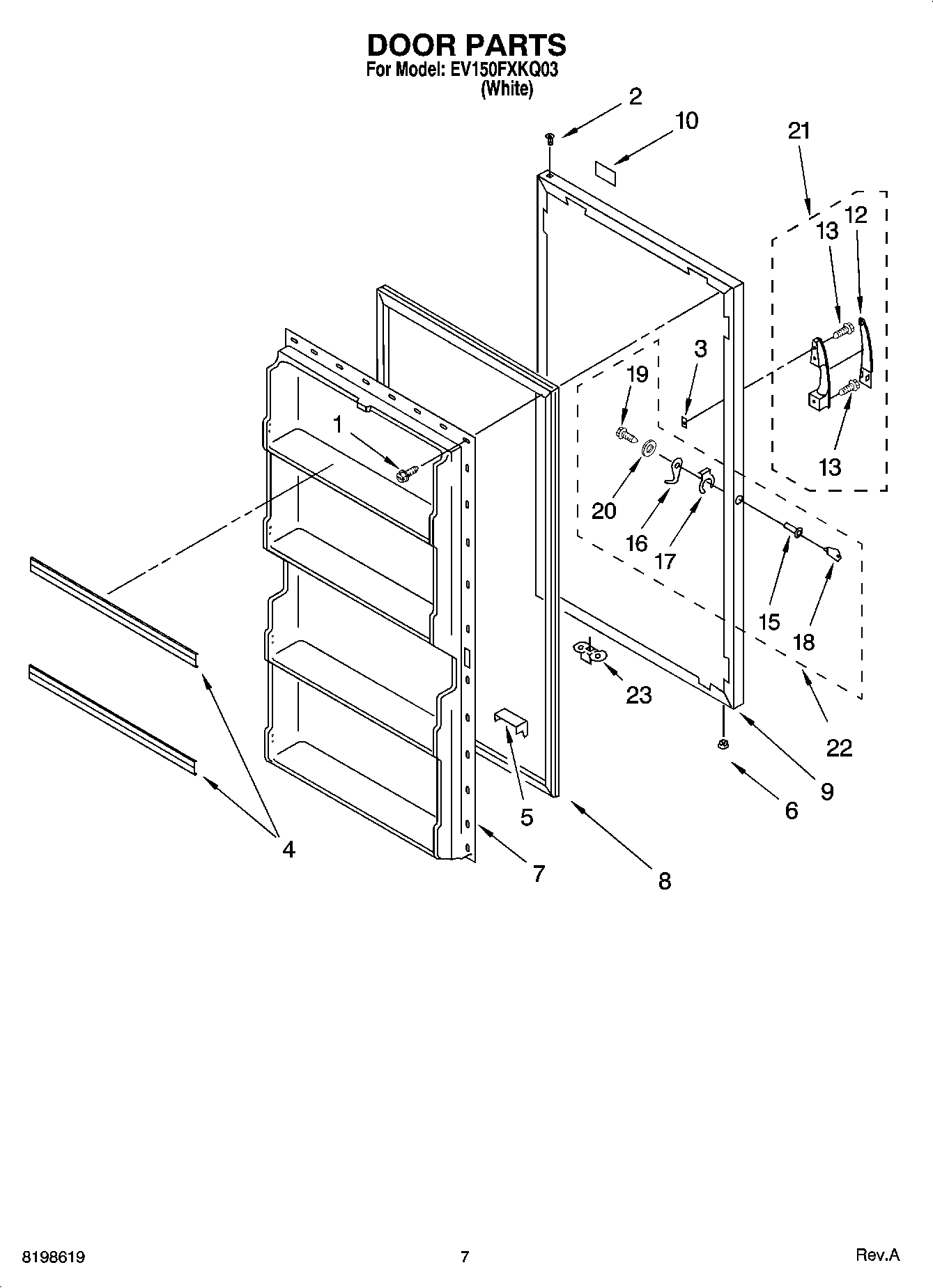

EV150FXKQ03 04 – DOOR PARTS

Products

PositionProduct
14390598 Whirlpool Refrigerator Screw
24390731 Whirlpool Refrigerator Hinge Bushing
3Anchor, Screw
4Door Shelf Trim (4)
5Foam Block
63-24898-007 Whirlpool Refrigerator Vent Plug
7WP4390870 Whirlpool Refrigerator Panel
8WP4357099 Whirlpool Refrigerator Door Gasket
9Exterior Door
10Nameplate (White)
12Insert, Handle
13WP489491 Whirlpool Refrigerator Screw
154357145 Whirlpool Refrigerator Door Lock
16Lock, Bolt
17Spring Clip
18WP4356840 Whirlpool Refrigerator Door Key
19WP489478 Whirlpool Refrigerator Screw
20Washer
21Handle Assembly (Includes Items 13 & 14)
23Door Stop
