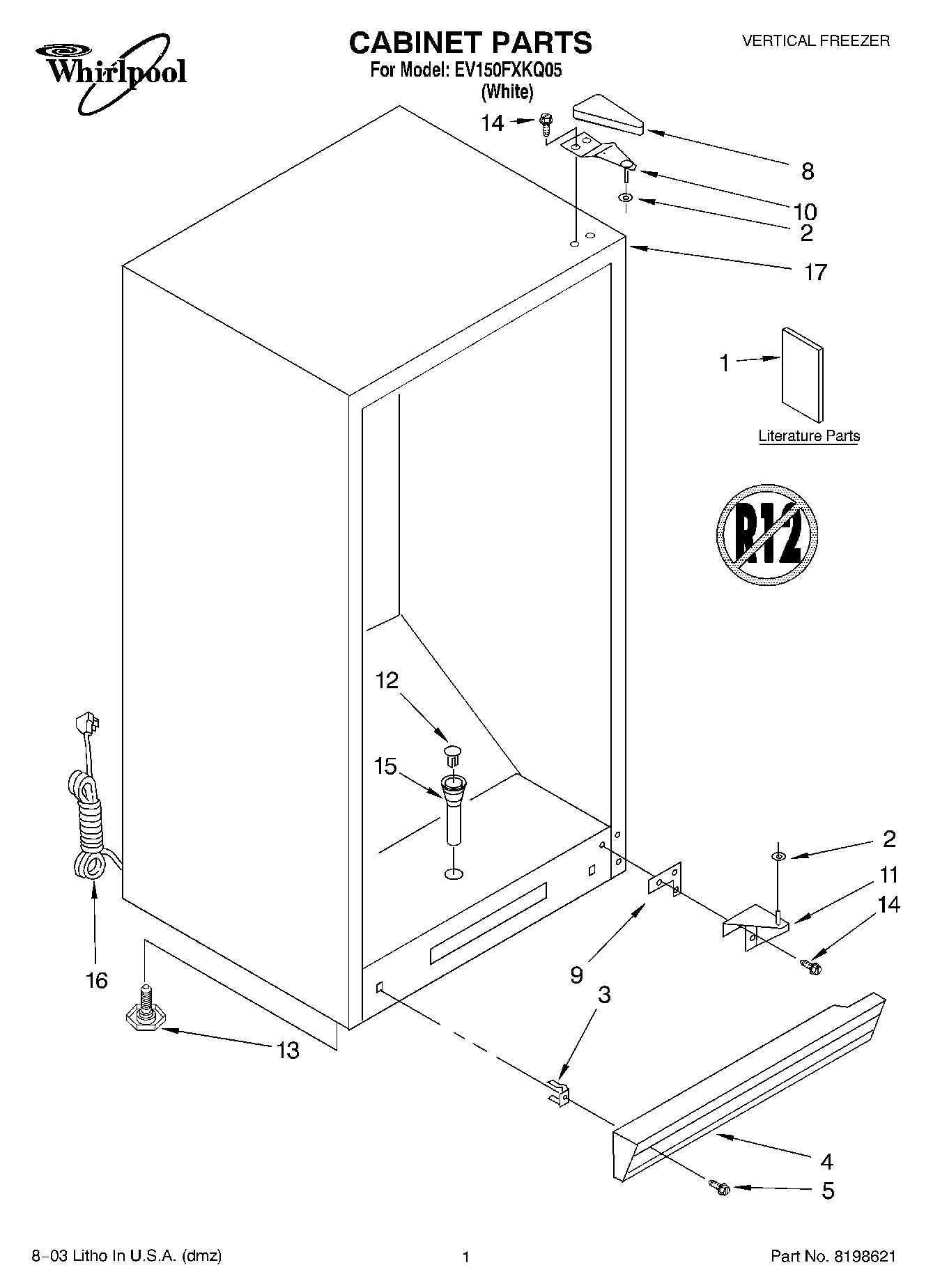

EV150FXKQ05 01 – CABINET PARTS

Products

Position	Product
1	Literature Parts (Energy Label)
1	Literature Parts (Owners Manual)
2	W10851331 Whirlpool Refrigerator Washer
3	1-80247-101 Whirlpool Refrigerator Clip
4	WP4-60461-005 Whirlpool Refrigerator Grille
5	WP489478 Whirlpool Refrigerator Screw
8	3-80838-003 Whirlpool Refrigerator Cover
9	Shim, Bottom
10	Top, Hinge
11	Bottom, Hinge
12	Drain Plug
13	W11117769 Whirlpool Refrigerator Leveler
14	WP8204624 Whirlpool Bolt
15	Grommet, Drain
16	Power Cord
17	Cabinet (Not A Serviceable Part)
