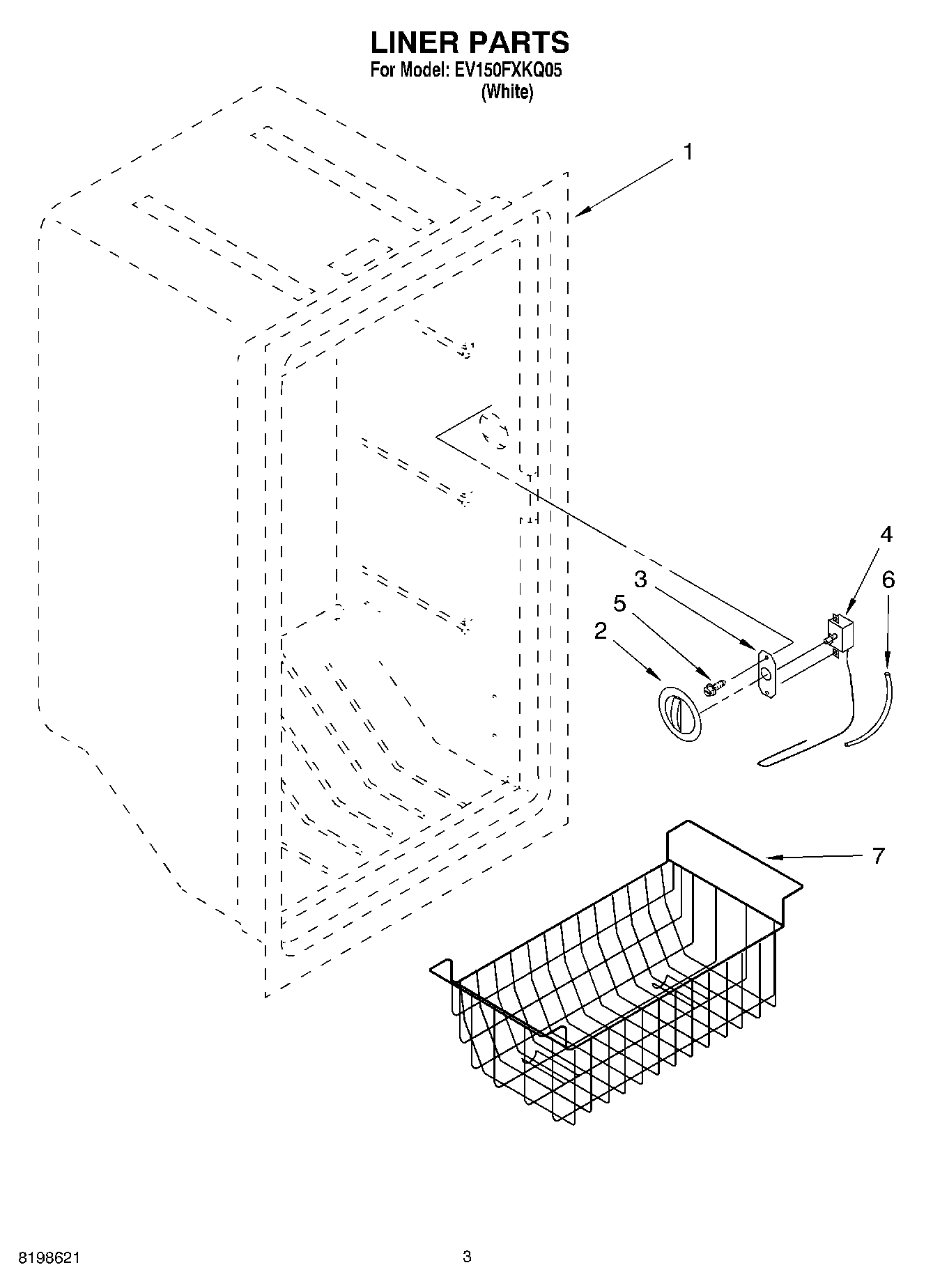

EV150FXKQ05 02 – LINER PARTS PARTS NOT ILLUSTRATED

EV150FXKQ05 02 – LINER PARTS PARTS NOT ILLUSTRATED

Written by

in

EV150FXKQ05 02 – LINER PARTS PARTS NOT ILLUSTRATED

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5WPW10068250 Whirlpool Dishwasher Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Customer Touch-Up Material
7Parts Not Illustrated and Optional Parts (Not Included)
7REFINISHING MATERIAL
7Basket
7350930 Whirlpool White Spray Paint
7TAPE, VINYL (3/4 X 108“)
7WP505587 Whirlpool Refrigerator Sealer
7WP503695 Whirlpool Refrigerator Sealer
7876370 Whirlpool Refrigerator Insulation
7212643 Whirlpool Refrigerator Permagum Sealer
7WP72107 Whirlpool Touchup
7799344 Whirlpool Refrigerator Paint
7Miscellaneous
