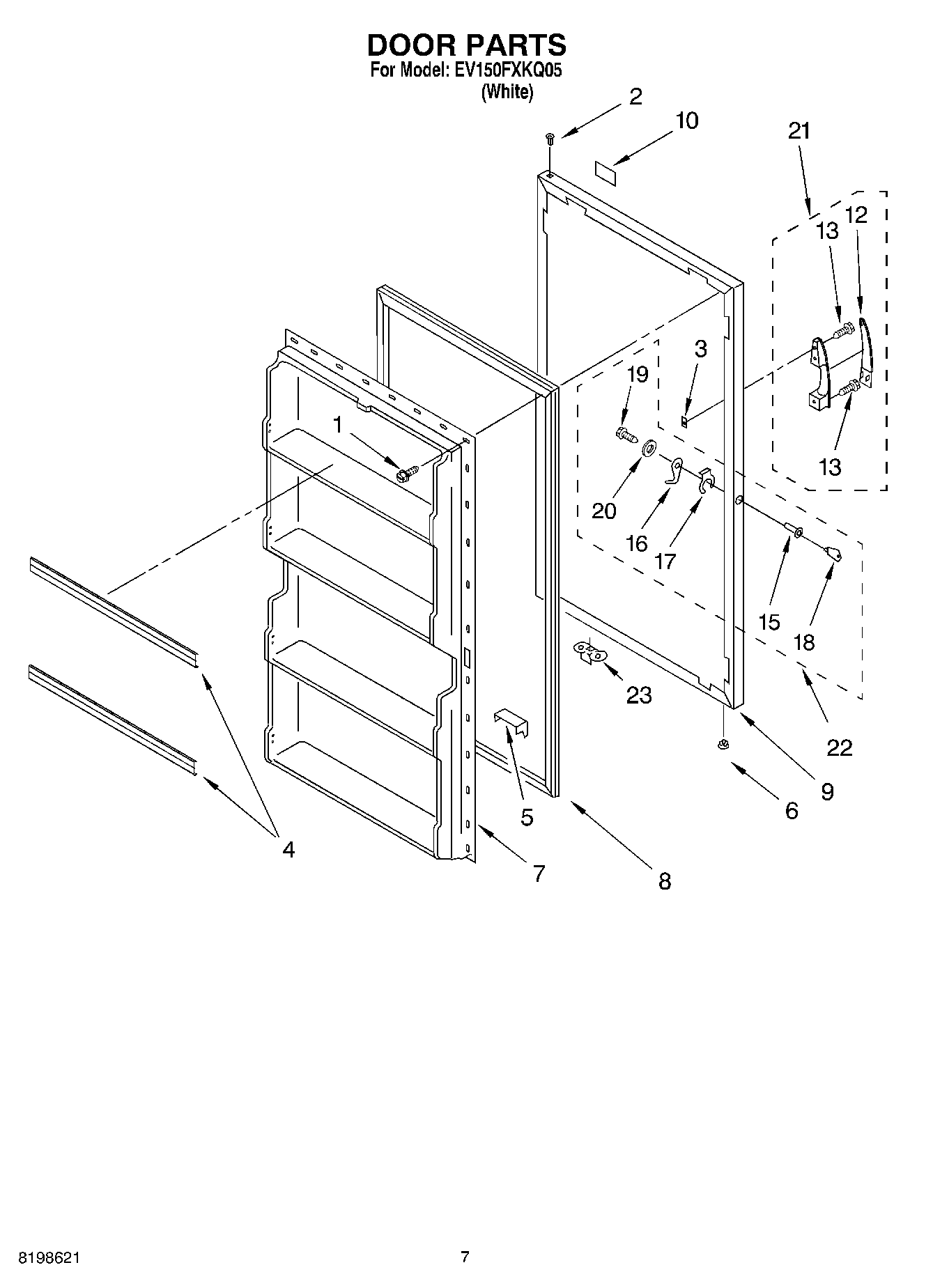

EV150FXKQ05 04 – DOOR PARTS

Products

Position	Product
1	4390598 Whirlpool Refrigerator Screw
2	4390731 Whirlpool Refrigerator Hinge Bushing
3	Anchor, Screw
4	Door Shelf Trim (4)
5	Foam Block
6	3-24898-007 Whirlpool Refrigerator Vent Plug
7	Interior Door
8	WP4357099 Whirlpool Refrigerator Door Gasket
9	WP4390870 Whirlpool Refrigerator Panel
10	Nameplate (White)
12	Insert, Handle
13	WP489491 Whirlpool Refrigerator Screw
15	4357145 Whirlpool Refrigerator Door Lock
16	Lock, Bolt
17	Spring Clip
18	WP4356840 Whirlpool Refrigerator Door Key
19	WP489478 Whirlpool Refrigerator Screw
20	Washer
21	Handle Assembly (Includes Items 13 & 14)
23	Door Stop
