EV150FXMQ09 01 – CABINET PARTS

EV150FXMQ09 01 – CABINET PARTS

Written by

in

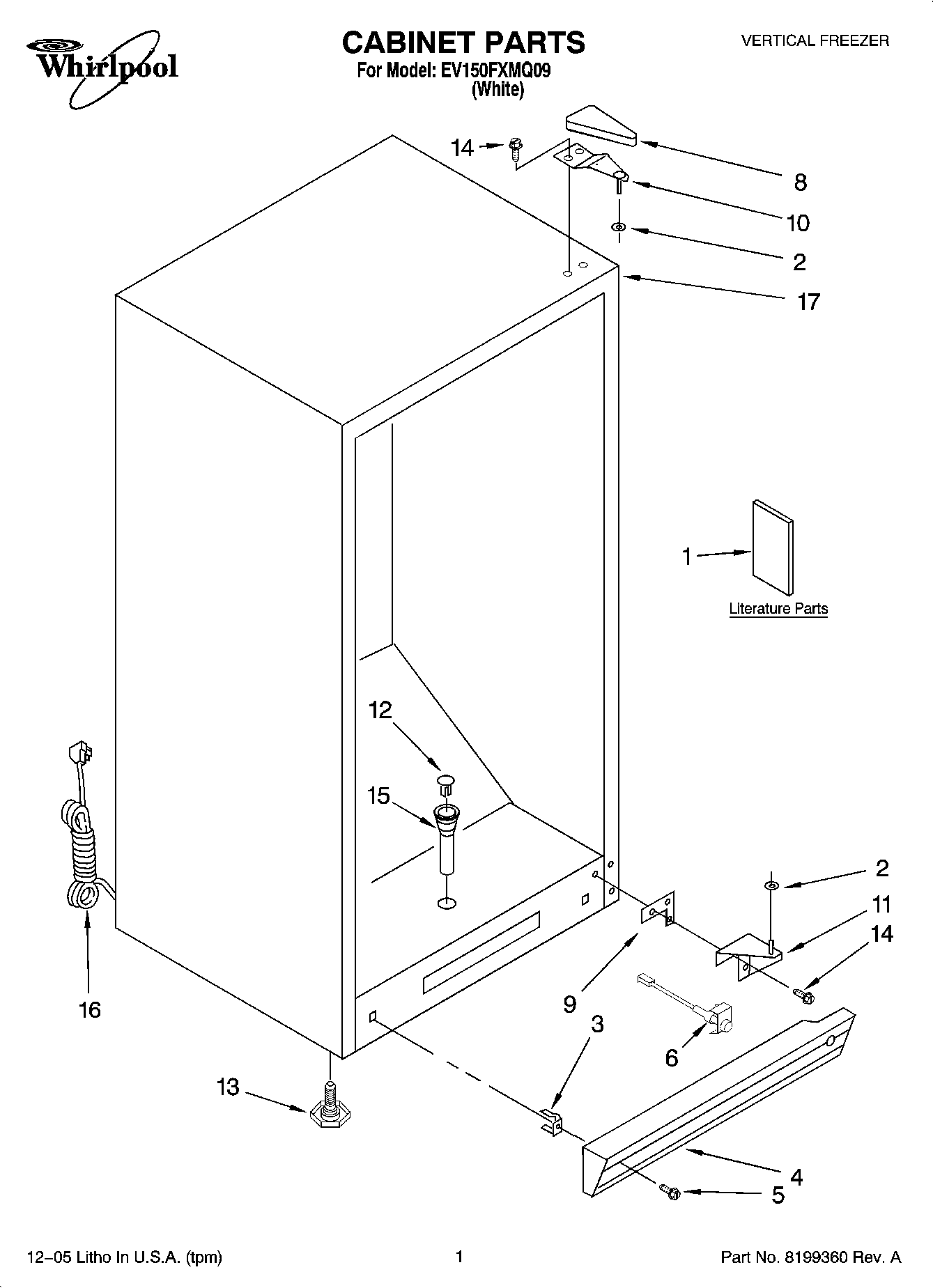

EV150FXMQ09 01 – CABINET PARTS

Products

PositionProduct
1Energy Label
1Owners Manual
2W10851331 Whirlpool Refrigerator Washer
31-80247-101 Whirlpool Refrigerator Clip
4Grille
5WP489478 Whirlpool Refrigerator Screw
63-82130-001 Whirlpool Refrigerator Warning Light
83-80838-003 Whirlpool Refrigerator Cover
9Shim, Bottom
102-81016-105 Whirlpool Refrigerator Door Hinge
11Bottom Hinge (White)
12Drain Plug
13W11117769 Whirlpool Refrigerator Leveler
14WP8204624 Whirlpool Bolt
15Grommet, Drain
16Power Cord
17Cabinet (Not A Serviceable Part)
