EV150FXXN00 03 – LINER, LIT/OPTIONAL

EV150FXXN00 03 – LINER, LIT/OPTIONAL

Written by

in

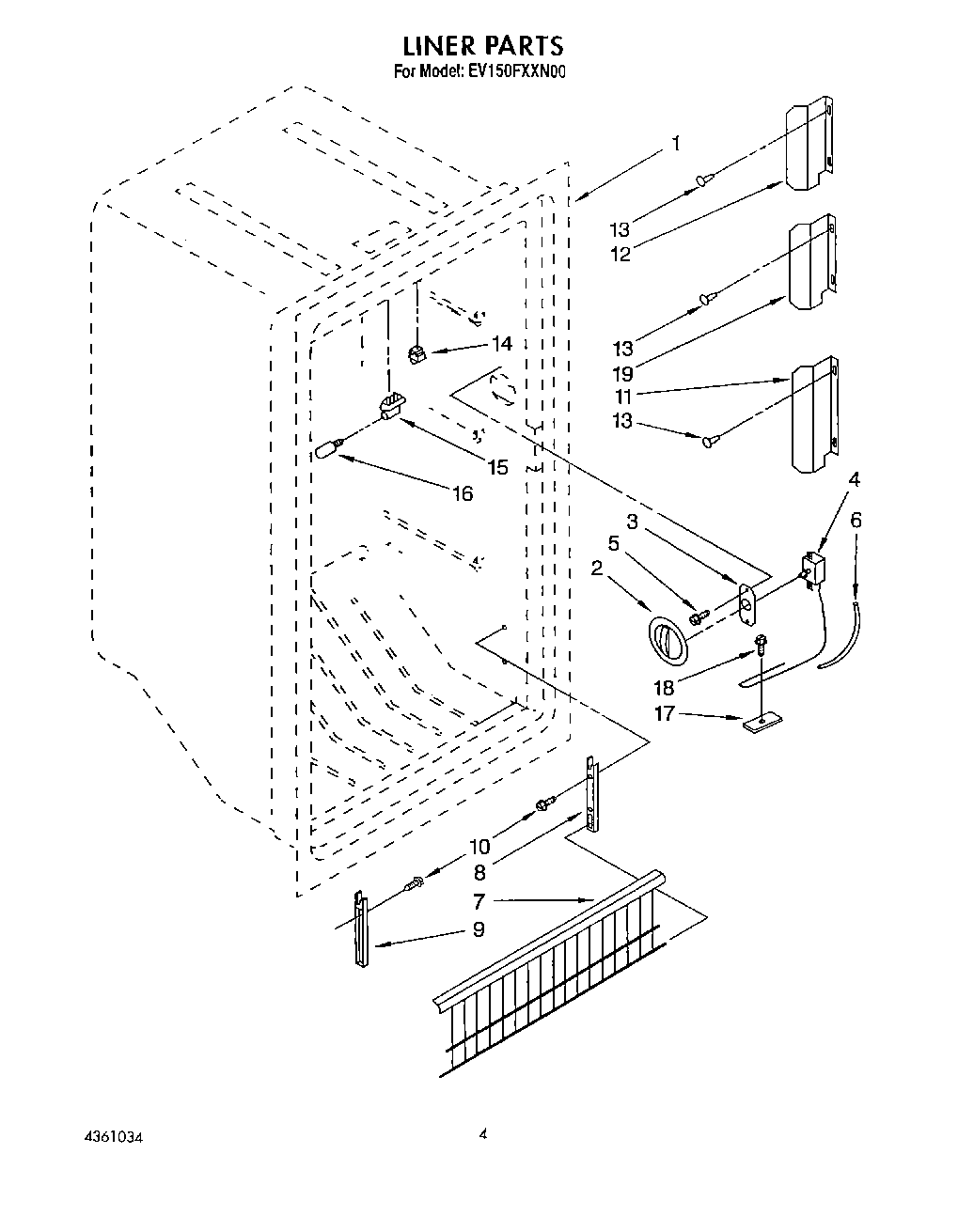

EV150FXXN00 03 – LINER, LIT/OPTIONAL

Products

PositionProduct
Parts List
Use & Care Guide
1Liner (Not A Serviceable Part)
2Control Knob
31-81154 Whirlpool Plate
4Thermostat
5Screw
6WP2196003 Whirlpool Refrigerator Bar Riser
7Gate
8Support, Fence, (L.H.)
94-80576-202 Whirlpool Refrigerator Gate Support
10Screw
11Tube, Cover Bottom
12Tube, Cover Top
13Rivet, Plastic
14W11384469 Whirlpool Door Switch
15Socket, Light
16W10873798 Whirlpool Refrigerator Light Bulb
171-80308-101 Whirlpool Refrigerator Bulb Clamp
18Control Bulb Screw
19Leveler (Thinner)
19Tube, Cover Center
19WP72107 Whirlpool Touchup
19Almond (Uncut)
19212643 Whirlpool Refrigerator Permagum Sealer
19Transformer (115-230 Volt)
19TAPE, VINYL (3/4 X 108“)
19WP505587 Whirlpool Refrigerator Sealer
19WP503695 Whirlpool Refrigerator Sealer
19876370 Whirlpool Refrigerator Insulation
19350956 Whirlpool Spray Assembly
