EV150FXXN00 05 – UNIT

Products

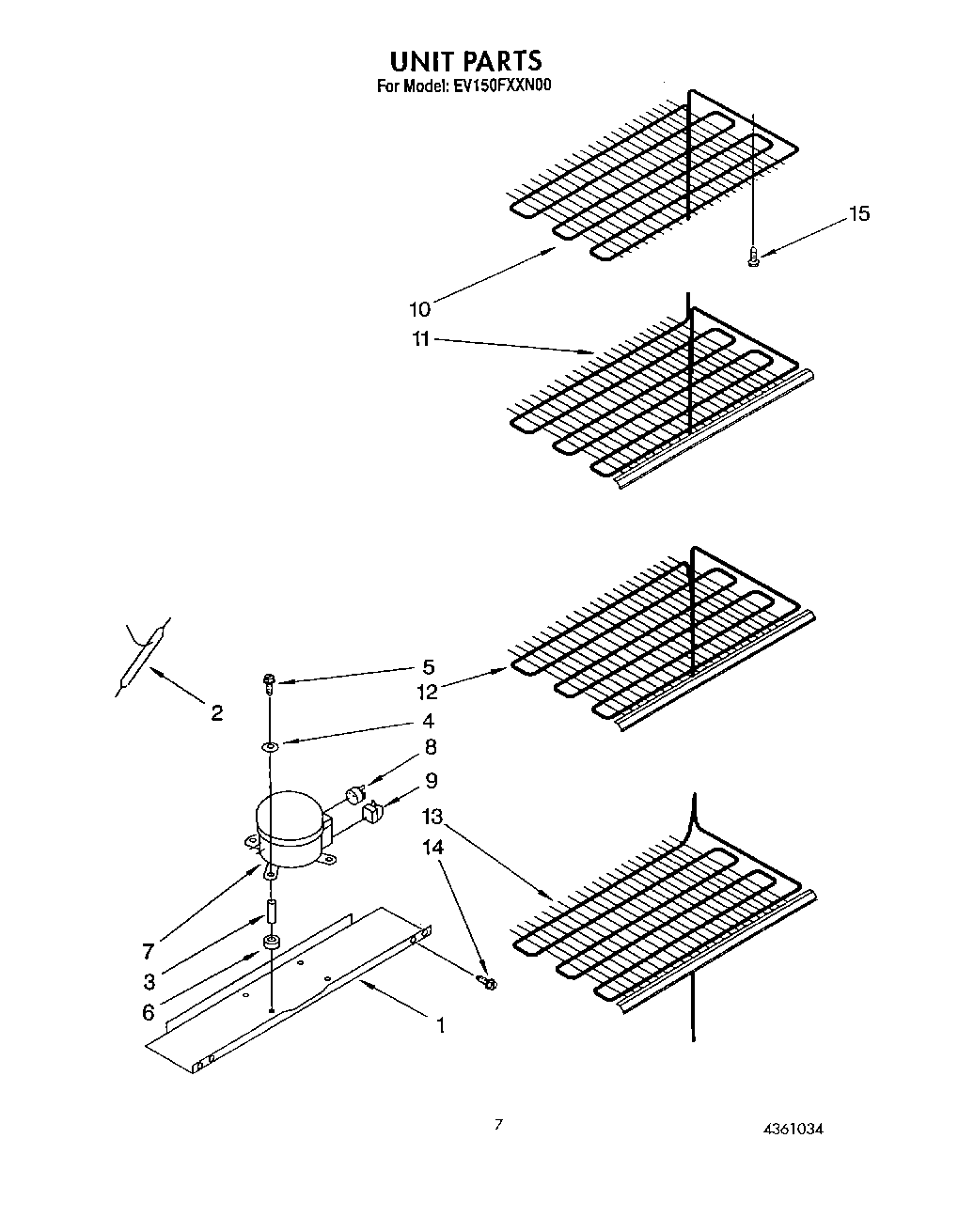

PositionProduct
1Compressor Mounting Pan
2W10843121 Whirlpool Refrigerator Tube
34356846 Whirlpool Refrigerator Sleeve
4Washer
5Screw, Compressor Mounting
6Compressor Grommet
7Compressor
8Relay
9Overload
10Evaporator Top
11Evaporator Shelf (One)
12Evaporator Shelf (Two)
13Evaporator Shelf (Three)
14WP3-24838-048 Whirlpool Refrigerator Screw
15Evaporator, Mounting Screw
