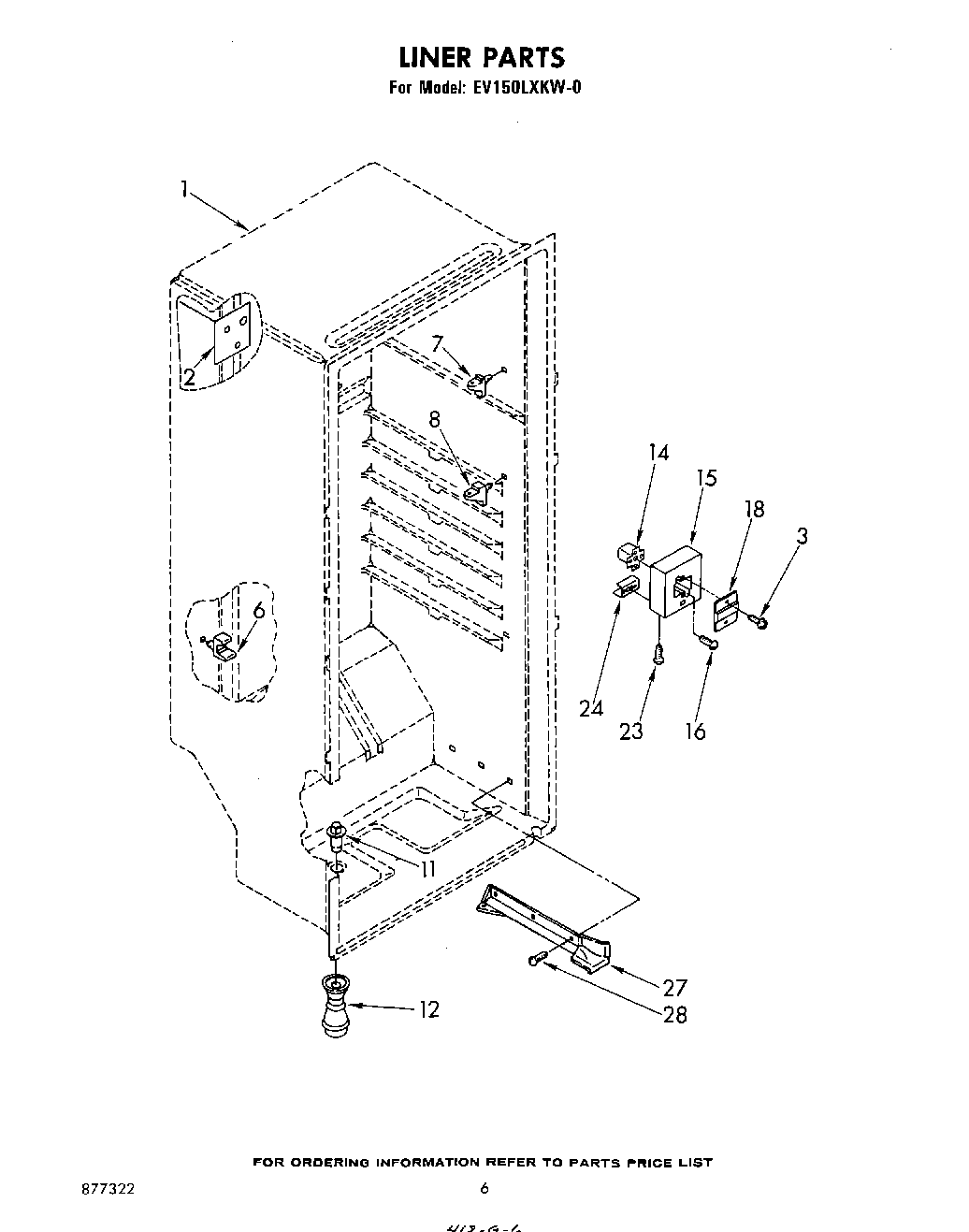

EV150LXKW0 04 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shield, Liner
6	Stud, Shelf (6)
7	Stud, Shelf (2)
8	Stud, Shelf (6)
11	Drain, Ferrule Cap
12	Fitting, Drain
14	4389248 Whirlpool Refrigerator Thermostat
15	Escutcheon, Thermostat
18	Cover
23	WP965173 Whirlpool Dishwasher Screw
24	Bracket & Switch Assembly
27	Tube, Entry Cover (Bottom)
28	W11693756 Whirlpool Screw Assembly
