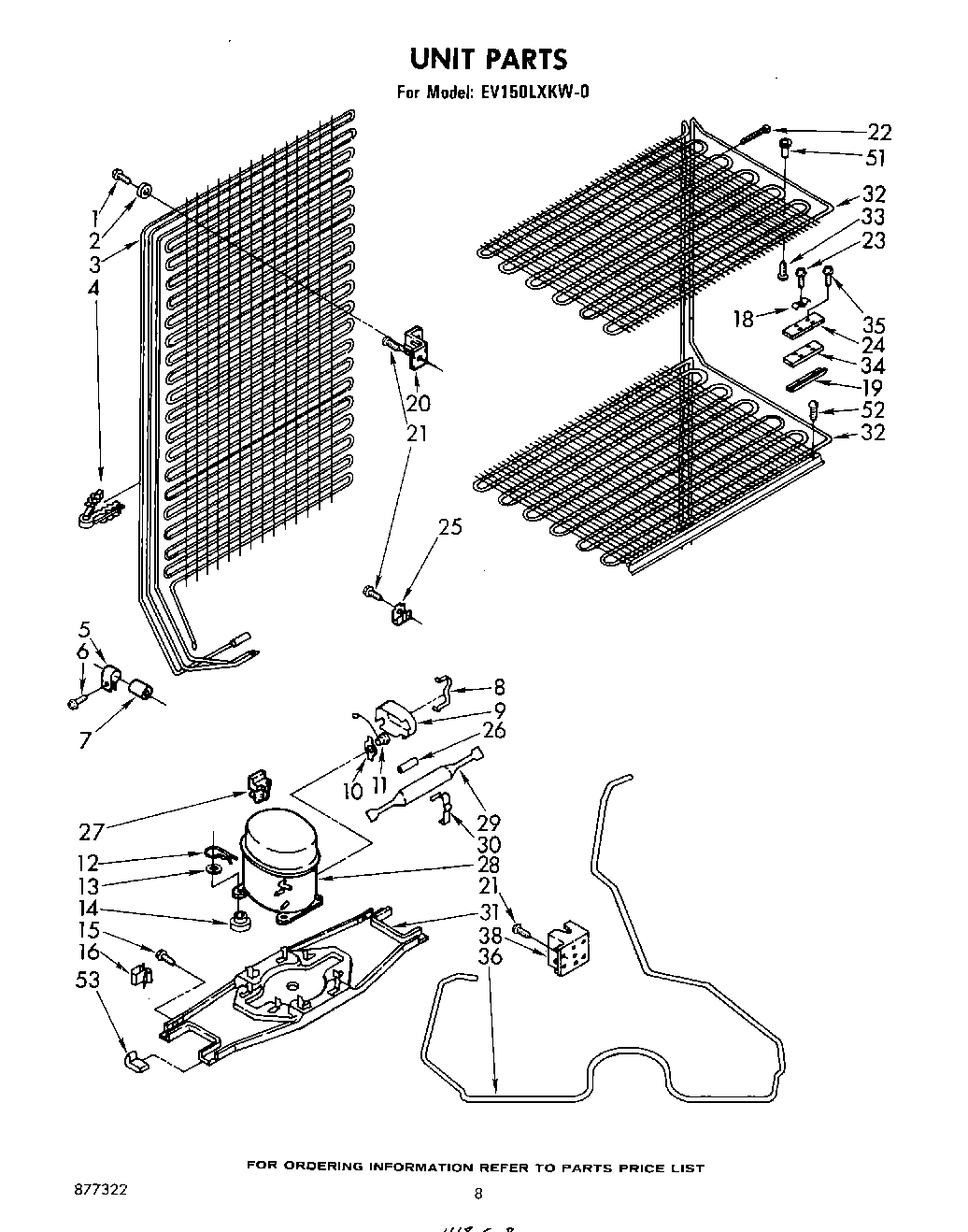

EV150LXKW0 05 – UNIT

Written by

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	Dampener (2)
8	Cover, Spring
9	Cover, Terminal
10	Spring, Overload
11	overload
12	clip (4)
13	slotted washer (4)
14	Grommet (4)
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	PLATE
19	Clip
20	Bracket, Condenser (2)
21	W11624204 Whirlpool Screw
22	Strap
23	Screw, 8-32 x 7/16
24	Shim, Thermostat Plate
25	Clip, Condenser Mounting (2)
26	Restrictor Sleeve
27	Relay
28	Compressor (Includes Items 32, 33, 34, 35 & 36) (Also Order 876765 Tube Kit)
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit, Frame
32	Evaporator Shelves (Shelf, Bottom)
32	Evaporator Shelves (Shelf, 3rd)
32	Evaporator Shelves (Shelf, 2nd)
32	Evaporator Assembly (Shelf, Top)
33	WP488163 Whirlpool Refrigerator Screw
34	Plate, Thermostat
35	Screw, 8-32 x 1/2
36	Heat Exchanger
38	Box, Junction
51	Spacer (3)
52	WP308685 Whirlpool Microwave Screw
53	VALVE, ACCESS (5/8“)
53	978030 Whirlpool Refrigerator Valve
53	support grommet (2)
53	VALVE, ACCESS (1/2“)
53	WP978025 Whirlpool Refrigerator Valve
53	978027 Whirlpool Refrigerator Primary Valve
53	978026 Whirlpool Refrigerator Primary Valve
