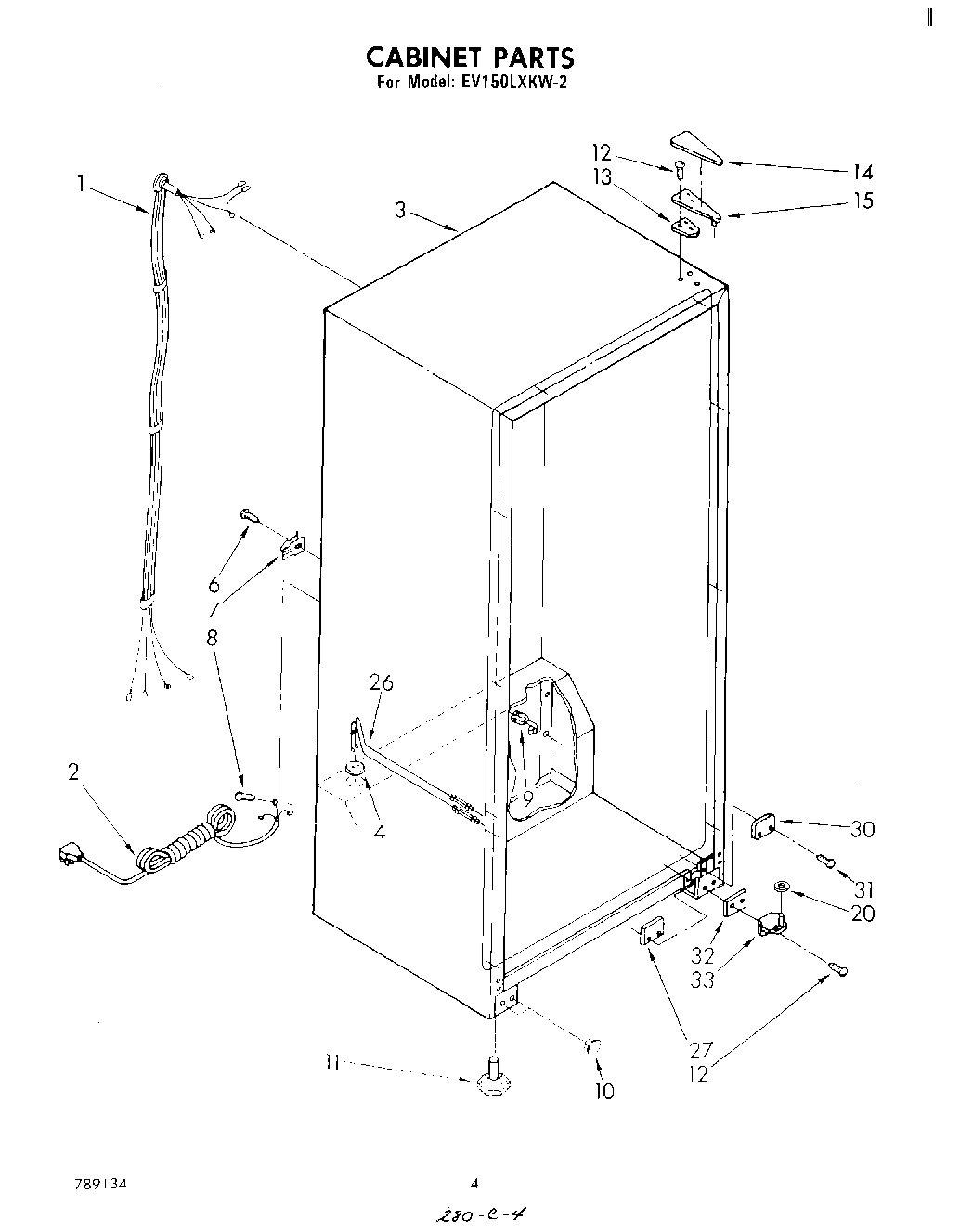

EV150LXKW2 03 – CABINET

Products

Position	Product
1	Cabinet Wiring Assembly
2	Cord, Service
3	Cabinet (Not A Serviceable Part)
4	Grommet, Wiring
6	W11624204 Whirlpool Screw
7	Clamp
8	Screw, 8-32 x 3/8
9	Bushing, Strain Relief
10	WPL 941416
11	W11117769 Whirlpool Refrigerator Leveler
12	Screw (Repair)
12	WP999367 Whirlpool Refrigerator Screw
13	WPL 836151
14	1119787 Whirlpool Refrigerator Hinge Cover
15	Hinge & Shim (Top)
20	WP487802 Whirlpool Refrigerator Washer
26	Heater, Stile
27	Tap Plate, Bottom
30	Tube, Rail Cover (White)
31	Screw
32	Shim, Bottom Hinge
33	Hinge, Bottom R.H.
