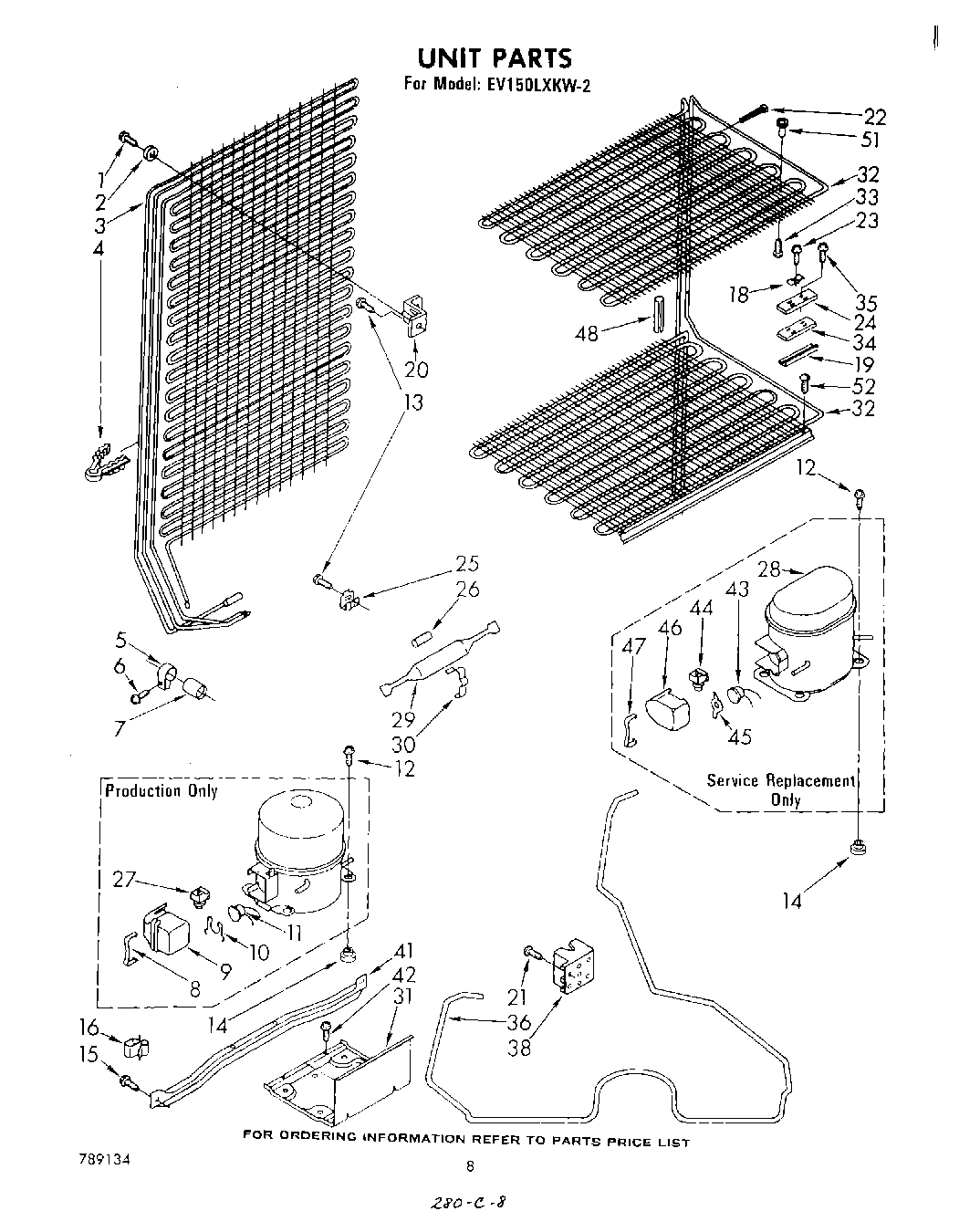

EV150LXKW2 05 – UNIT

Products

Position	Product
1	Screw, 8 x 7/8
2	Bumper, Rubber
3	Condenser & Precooler Assembly
4	Clip, Tube
5	Clamp Tube
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	dampener
8	Spring, Case
9	Case, Relay
10	Overload Spring
11	Overload (Used W/Original Compressor)
13	WP489069 Whirlpool Compactor Screw
14	876811 Whirlpool Grommet
15	489340 Whirlpool Refrigerator Screw
16	W10812038 Whirlpool Refrigerator Clip
18	PLATE
19	Clip
20	Condenser Bracket (Top)
21	W11624204 Whirlpool Screw
22	Strap
23	Screw, 8-32 x 7/16
24	Shim, Thermostat Plate
25	4386951 Whirlpool Refrigerator Clip
26	Restrictor Sleeve
27	Relay (Used W/Original Compressor)
28	W10439652 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	Drier Clamp
31	Unit Mounting Plate
32	Evaporator Shelves (Shelf, 3rd)
32	Evaporator Shelves (Shelf, 2nd)
32	Evaporator Assembly (Shelf, Top)
32	Evaporator Shelves (Shelf, Bottom)
33	WP488163 Whirlpool Refrigerator Screw
34	Plate, Thermostat
35	Screw, 8-32 x 1/2
36	Heat Exchanger
38	Box, Junction
41	Unit Mounting Rail
42	WP965173 Whirlpool Dishwasher Screw
43	Overload
44	Relay
45	Spring, Overload
46	Cover, Terminal
47	Cover, Spring
48	Cover, Connecting Lines (11.5 Inches)
48	Cover, Connecting Lines (15 Inches)
48	Cover, Connecting Lines (10 Inches)
51	Spacer (3)
52	VALVE, ACCESS (5/8“)
52	978026 Whirlpool Refrigerator Primary Valve
52	WP978025 Whirlpool Refrigerator Valve
52	WP308685 Whirlpool Microwave Screw
52	978027 Whirlpool Refrigerator Primary Valve
52	VALVE, ACCESS (1/2“)
52	978030 Whirlpool Refrigerator Valve
